Festo Quick Exhaust Valve, G 1/4 x 10 bar, Threaded

View this category

Subtotal (1 unit)*

£48.79

(exc. VAT)

£58.55

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 2 unit(s) shipping from 09 October 2025
  • Plus 999,999,997 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£48.79

*price indicative

RS Stock No.:
125-9959
Mfr. Part No.:
VBQF-U-G14-E
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Threaded Connections

G 1/4

Connection Type

Threaded

Maximum Operating Pressure

10 bar

Manufacturer Series

VBQF

Built-In Silencer

No

Threaded Connection - Gender

Male

Threaded Connection Size

1/4in

Minimum Operating Pressure

0.5bar

Threaded Connection Type

G

Standards Met

CRC1 940070, UL

Body Material

Zinc Die Cast Aluminium

COO (Country of Origin):
DE

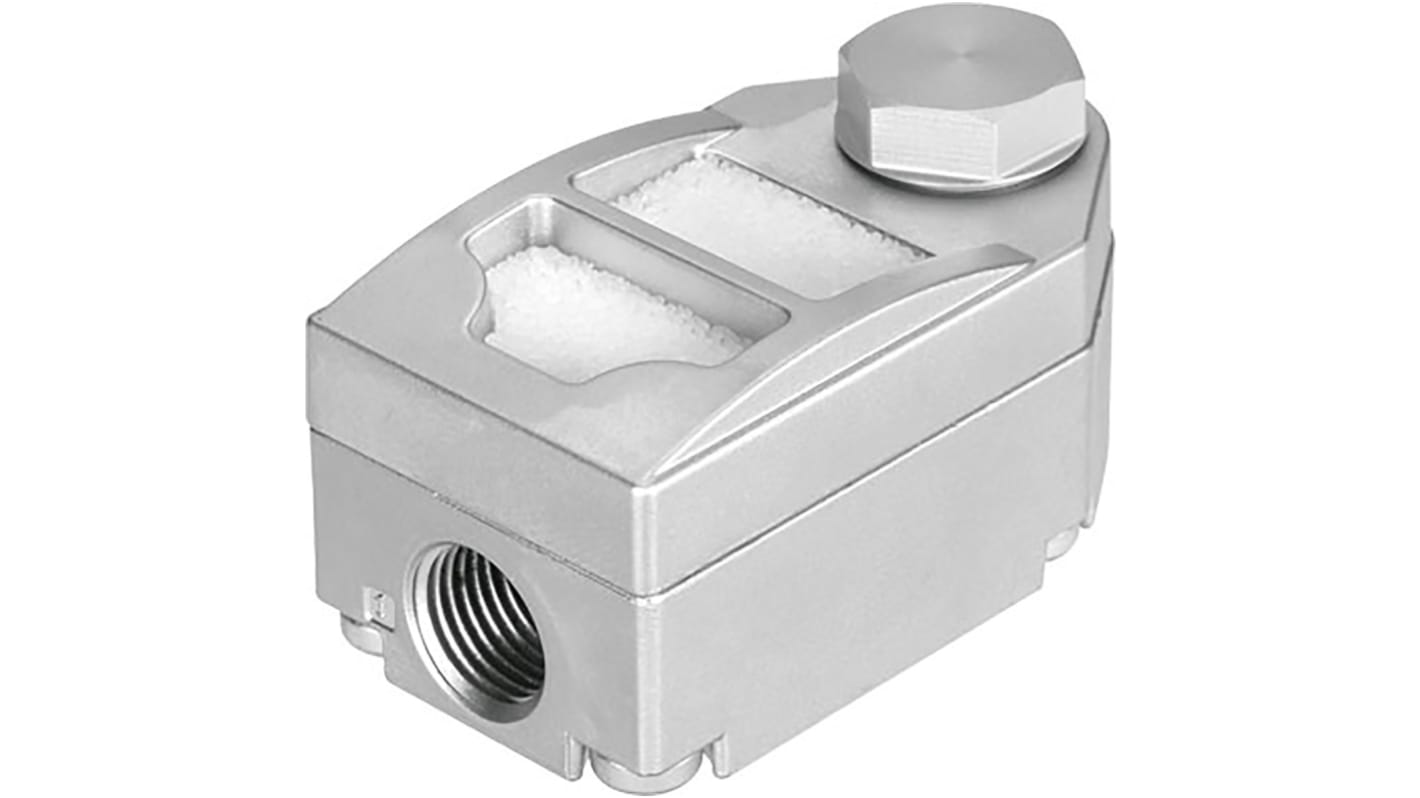

Festo VBQF Quick Exhaust Valves


VBQF series quick exhaust valves allow higher piston speeds to be achieved on the return stroke of single and double-acting drives. Pneumatic air flows from the control valve via the VBQF to the drive. The VBQF can be mounted in any position and can also be turned giving high flexibility of mounting options. This range is available with or without a silencer. With housing made of die-cast zinc and die-cast aluminium these pressure valves are strong and robust with a small footprint.

Features and Benefits:


• Quick exhaust valve, flat design
• Flow rates of up to 2,500 l/min
• Screw in mounting
• Improved noise emissions in silencer type
• Mounted rotation
