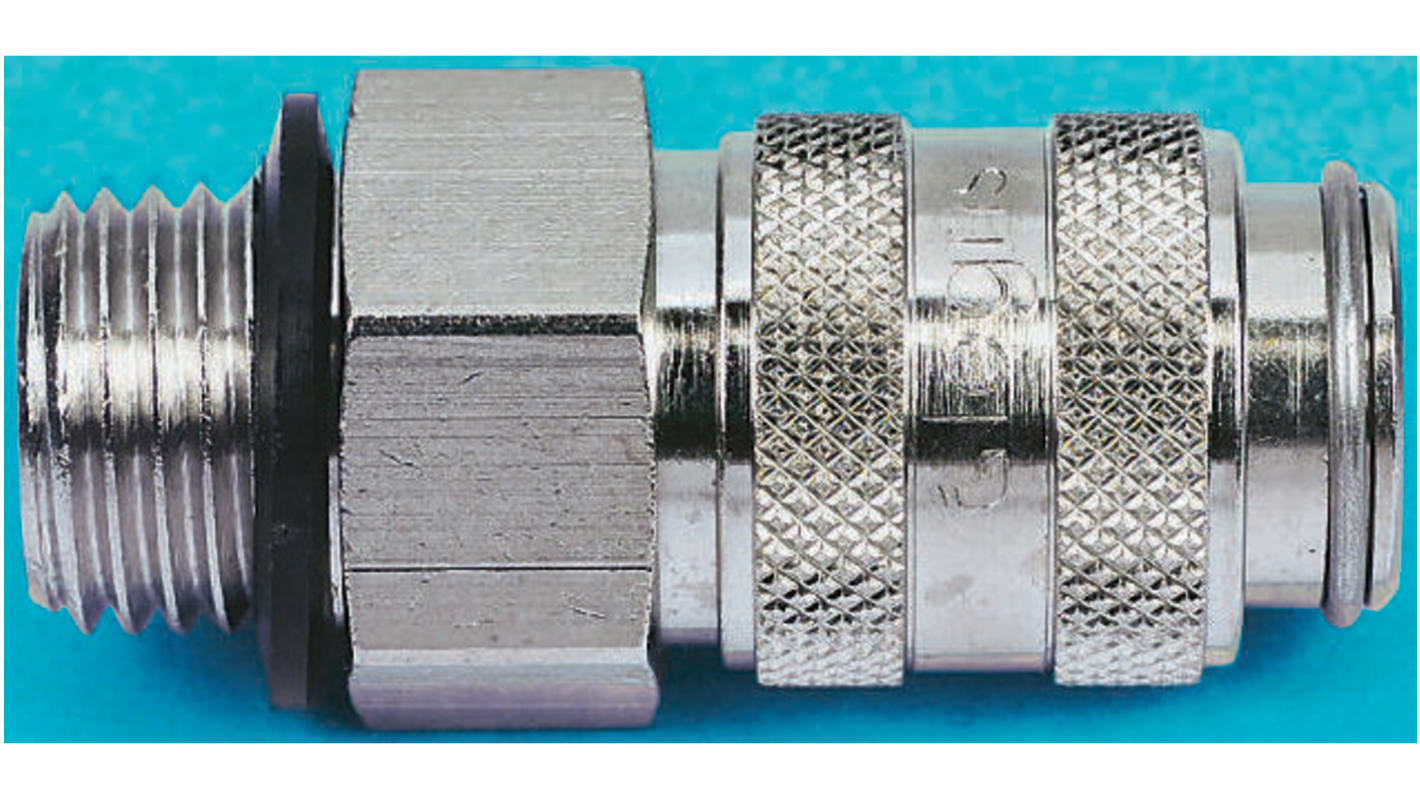

Legris Brass Male Pneumatic Quick Connect Coupling, G 3/8 Male Threaded
- RS Stock No.:
- 351-2843
- Mfr. Part No.:
- 9201 21 17
- Brand:
- Legris
Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternatives
This product is not currently available. Here are our alternative recommendations.
Each
£16.15
(exc. VAT)
£19.38
(inc. VAT)
Each
£6.00
(exc. VAT)
£7.20
(inc. VAT)
- RS Stock No.:
- 351-2843
- Mfr. Part No.:
- 9201 21 17
- Brand:
- Legris
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legris | |
| Threaded Connection | G 3/8 Male | |
| Coupling Gender | Male | |
| Thread Size | 3/8in | |
| Manufacturer Series | 9201 | |
| Connection Type | Threaded | |
| Material | Brass | |
| Thread Gender | Male | |
| Thread Standard | G | |
| Maximum Operating Pressure | 35 bar | |
| Finish | Nickel Plated | |
| Seal Material | Perbunan | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand Legris | ||
Threaded Connection G 3/8 Male | ||
Coupling Gender Male | ||
Thread Size 3/8in | ||
Manufacturer Series 9201 | ||
Connection Type Threaded | ||
Material Brass | ||
Thread Gender Male | ||
Thread Standard G | ||
Maximum Operating Pressure 35 bar | ||
Finish Nickel Plated | ||
Seal Material Perbunan | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +100°C | ||
Series 21 Connectors
Series 21 Connectors
Miniature pattern connectors, suitable for many applications including small air tools, dental equipment, robotics and automation. Small body dimensions with high flow rate and low pressure drop. Maximum operating pressure 35 bar and temperature range is -20°C to +100°C. All couplings are of the single shut-off type and all allow one handed operation. Interchangeable with Rectus Series 21.
