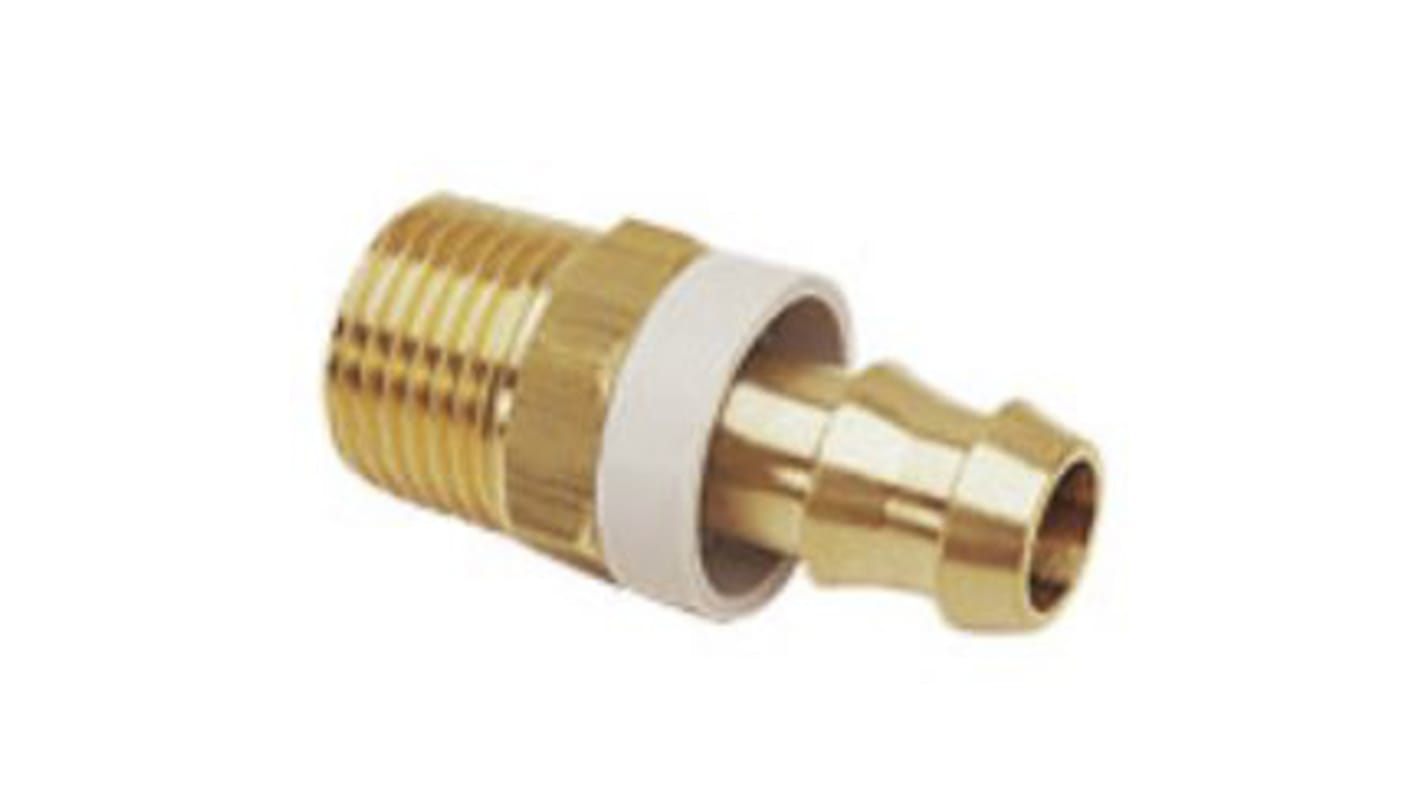

Legris Brass Pneumatic Quick Connect Coupling Male R 13mm
- RS Stock No.:
- 146-5189
- Mfr. Part No.:
- 0134 56 10
- Brand:
- Legris
Subtotal (1 box of 10 units)*
£59.49
(exc. VAT)
£71.39
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £59.49 | £5.949 |
*price indicative
- RS Stock No.:
- 146-5189
- Mfr. Part No.:
- 0134 56 10
- Brand:
- Legris
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legris | |
| Product Type | Pneumatic Quick Connect Coupling | |
| Thread Standard | R | |
| Thread Size | 1/8 in | |
| Hose Barb Connection | 13mm | |
| Material | Brass | |
| Thread Gender | Male | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Pressure | 16 bar | |
| Maximum Operating Temperature | 100°C | |
| Finish | Zinc Plated, Nickel, Chemical Nickel | |
| Standards/Approvals | CNOMO | |
| Select all | ||
|---|---|---|
Brand Legris | ||
Product Type Pneumatic Quick Connect Coupling | ||
Thread Standard R | ||
Thread Size 1/8 in | ||
Hose Barb Connection 13mm | ||
Material Brass | ||
Thread Gender Male | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Pressure 16 bar | ||
Maximum Operating Temperature 100°C | ||
Finish Zinc Plated, Nickel, Chemical Nickel | ||
Standards/Approvals CNOMO | ||
Quick connection of self-fastening hose to a male port. Available in 1/8" to 3/4" ID
