CEJN Steel Female Pneumatic Quick Connect Coupling, G 1/8 Female Threaded

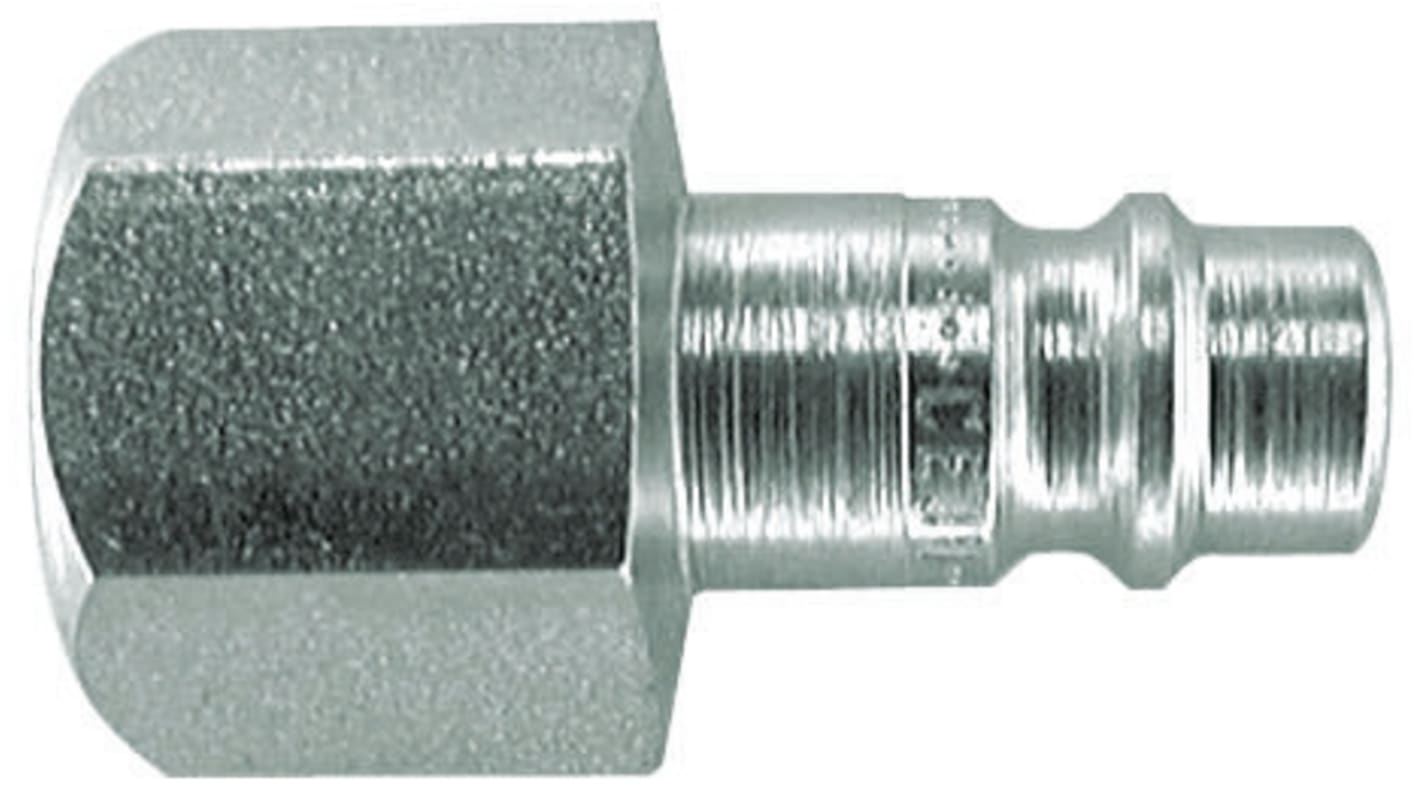

Image representative of range

View this category
Bulk discount available

Subtotal (1 unit)*

£6.80

(exc. VAT)

£8.16

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£6.80
5 - 9£6.52
10 - 24£6.40
25 +£6.27

*price indicative

RS Stock No.:
498-567
Mfr. Part No.:
103005201
Brand:
CEJN
Find similar products by selecting one or more attributes.
Select all

Brand

CEJN

Threaded Connection

G 1/8 Female

Coupling Gender

Female

Thread Size

1/8in

Manufacturer Series

300

Connection Type

Threaded

Material

Steel

Thread Gender

Female

Thread Standard

G

Maximum Operating Pressure

16bar

Finish

Zinc Plated

Minimum Operating Temperature

-20°C

Seal Material

Nitrile Rubber

Maximum Operating Temperature

+100°C

RoHS Status: Exempt

COO (Country of Origin):
SE

CEJN 300 Series, 5.5mm Flow Diameter


CEJN series 300 couplings offer high flow and require only a low connection force, which ensures a safe working environment. Male threads on the couplings and nipples feature pre-applied thread sealant. The series 300 vented safety version is disconnected in two stages in order to vent the coupling and minimise the risk of sudden component separation, which has the potential to cause operator injury. Full automatic operation ensures easy handling. Couplings have zinc plated steel bodies, NBR seals, brass shut off valves and hardened zinc-plated steel sleeves. Nipples have hardened zinc plated steel bodies and plugs.

Flow capacity upto 1050 l/min
Nominal Flow Diameter 5.5 mm
Strong and durable
Easy to connect
Available in standard and safety versions
Two stage safety types
Interchanges with Aro 210 & Rectus 14 series

Standards

The vented safety version complies with ISO standard 4414 and EN 983
