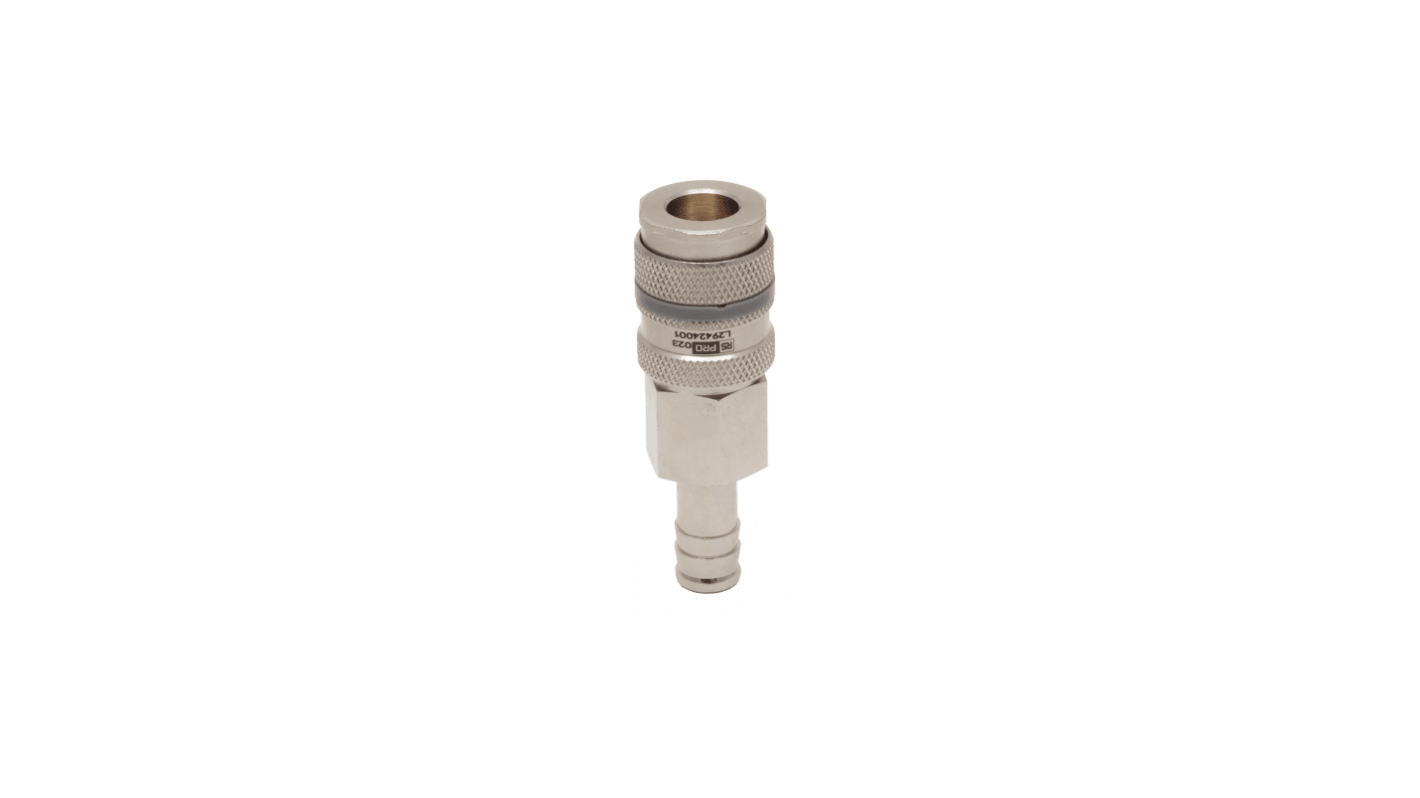

RS PRO Brass, Steel Female Pneumatic Quick Connect Coupling, 9mm Hose Barb
- RS Stock No.:
- 325-547
- Brand:
- RS PRO
Subtotal (1 unit)*
£8.48
(exc. VAT)
£10.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 27 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.48 |
*price indicative
- RS Stock No.:
- 325-547
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coupling Gender | Female | |
| Connection Standard | ISO 6150-B-12, US MIL STD.4109 | |
| Coupling Type | Quick Connect Coupling Socket | |
| Connection Type | Hose Barb | |
| Hose Barb Connection | 9mm | |
| Material | Brass, Steel | |
| Maximum Operating Pressure | 35bar | |
| Finish | Nickel Plated | |
| Seal Material | NBR | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 100°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coupling Gender Female | ||
Connection Standard ISO 6150-B-12, US MIL STD.4109 | ||
Coupling Type Quick Connect Coupling Socket | ||
Connection Type Hose Barb | ||
Hose Barb Connection 9mm | ||
Material Brass, Steel | ||
Maximum Operating Pressure 35bar | ||
Finish Nickel Plated | ||
Seal Material NBR | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 100°C | ||
- COO (Country of Origin):
- TR
UL1015 Hook-Up
UL1015 listed and CSA TEW-105 certified hook-up equipment wire
Recommended for internal wiring and wiring harness assemblies
Recommended for internal wiring and wiring harness assemblies
RS PRO Pneumatic Quick Connect Coupling, 35 bar Maximum Operating Pressure
The RS PRO Pneumatic Quick Connect Coupling Socket is designed for efficient and reliable connections in pneumatic systems. It is widely used in industries such as robotic assembly lines, offering durability and effective sealing with its nitrile rubber seal material.
Features and Benefits
Maximum operating pressure of 35 bar ensures robust performance in demanding applications
Operating temperature range from -20°C to +100°C provides versatility in various environments
ISO 6150-B-12 compliance guarantees compatibility with international standards
Industrial interchangeable 1/4 inch design allows for easy integration with existing systems
US MIL STD. 4109 1/4 inch compatibility ensures adherence to military specifications
Flow rate of 900 l/min supports high-efficiency operations
Compatible with TST SWING COUPLING B1 for flexible use
Interchangeable with Industrial interchange 1/4 inch and TST 024 for broad compatibility
Works with PARKER - RECTUS 23 and CEJN 310 for seamless integration
Compatible with HANSEN 3000 and PARKER 20 for diverse applications
Fits ATLAS COPCO QIC 08 and US-MIL-SPEC-C-4109 for extended usability
Operating temperature range from -20°C to +100°C provides versatility in various environments
ISO 6150-B-12 compliance guarantees compatibility with international standards
Industrial interchangeable 1/4 inch design allows for easy integration with existing systems
US MIL STD. 4109 1/4 inch compatibility ensures adherence to military specifications
Flow rate of 900 l/min supports high-efficiency operations
Compatible with TST SWING COUPLING B1 for flexible use
Interchangeable with Industrial interchange 1/4 inch and TST 024 for broad compatibility
Works with PARKER - RECTUS 23 and CEJN 310 for seamless integration
Compatible with HANSEN 3000 and PARKER 20 for diverse applications
Fits ATLAS COPCO QIC 08 and US-MIL-SPEC-C-4109 for extended usability
Applications
Robotic assembly lines
Pneumatic equipment
Industrial automation
Manufacturing facilities
Pneumatic equipment
Industrial automation
Manufacturing facilities
Additional Information
Seal material: Nitrile rubber (NBR)
Material: Brass and steel construction for durability
Connection type: Hose barb with 9 mm connection
Material: Brass and steel construction for durability
Connection type: Hose barb with 9 mm connection
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
