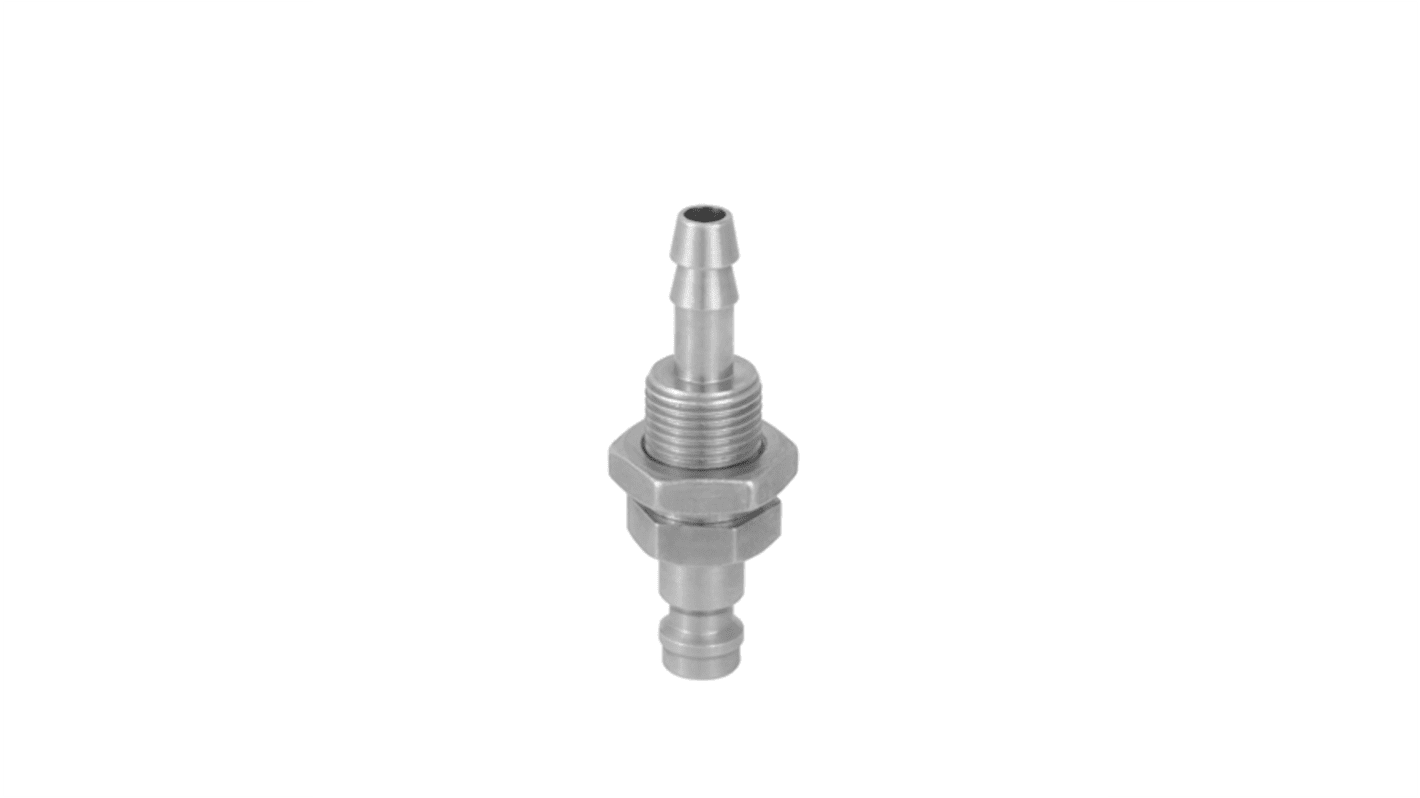

RS PRO Brass Male Pneumatic Quick Connect Coupling, M12 x 1 9mm Hose Barb
- RS Stock No.:
- 325-529
- Brand:
- RS PRO
Subtotal (1 unit)*
£2.88
(exc. VAT)
£3.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £2.88 |
*price indicative
- RS Stock No.:
- 325-529
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Threaded Connection | M12 x 1 | |
Coupling Gender | Male | |
Connection Standard | European Mini | |
Thread Size | M12 | |
Coupling Type | Quick Connect Coupling Plug | |
Connection Type | Hose Barb | |
Hose Barb Connection | 9mm | |
Material | Brass | |
Thread Standard | Metric | |
Maximum Operating Pressure | 35bar | |
Finish | Nickel Plated | |
Seal Material | NBR | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | 100°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Threaded Connection M12 x 1 | ||
Coupling Gender Male | ||
Connection Standard European Mini | ||
Thread Size M12 | ||
Coupling Type Quick Connect Coupling Plug | ||
Connection Type Hose Barb | ||
Hose Barb Connection 9mm | ||
Material Brass | ||
Thread Standard Metric | ||
Maximum Operating Pressure 35bar | ||
Finish Nickel Plated | ||
Seal Material NBR | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 100°C | ||
- COO (Country of Origin):
- TR
RS PRO Pneumatic Quick Connect Coupling, 35 bar Maximum Operating Pressure
The RS PRO Pneumatic Quick Connect Coupling Plug is designed for efficient and reliable connections in pneumatic systems. Ideal for use in robotic assembly lines and various industrial equipment, it ensures durability and effective sealing with its nitrile rubber seal material.
Features and Benefits
Maximum operating pressure of 35 bar, ensuring robust performance in demanding applications
Operating temperature range from -20°C to +100°C, suitable for diverse environments
Constructed from brass with a nickel-plated finish, offering corrosion resistance and longevity
Euro Profile DN5, providing compatibility with standard pneumatic systems
Flow rate of 560 l/min, supporting high-efficiency operations
Panel mount hose tail, facilitating easy installation
Compatible with PARKER - RECTUS 21 and 90, CAMOZZI MINI SERIES, and LEGRIS 9200, ensuring versatile use
Operating temperature range from -20°C to +100°C, suitable for diverse environments
Constructed from brass with a nickel-plated finish, offering corrosion resistance and longevity
Euro Profile DN5, providing compatibility with standard pneumatic systems
Flow rate of 560 l/min, supporting high-efficiency operations
Panel mount hose tail, facilitating easy installation
Compatible with PARKER - RECTUS 21 and 90, CAMOZZI MINI SERIES, and LEGRIS 9200, ensuring versatile use
Applications
Robotic assembly lines
Industrial equipment
Pneumatic systems
Industrial equipment
Pneumatic systems
Additional Information
Threaded Connection: M12 x 1
Connection Type: Hose Barb
Hose Barb Connection: 9 mm
Material: Brass
Connection Type: Hose Barb
Hose Barb Connection: 9 mm
Material: Brass
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
