RS PRO Brass, Steel Female Pneumatic Quick Connect Coupling, R 3/8 Male Threaded
- RS Stock No.:
- 325-467
- Brand:
- RS PRO
Subtotal (1 unit)*
£8.85
(exc. VAT)
£10.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 33 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £8.85 |
*price indicative
- RS Stock No.:
- 325-467
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Threaded Connection | R 3/8 Male | |
Coupling Gender | Female | |
Connection Standard | Euro 7.8 | |
Thread Size | 3/8in | |
Coupling Type | Quick Connect Coupling Socket | |
Connection Type | Threaded | |
Material | Brass, Steel | |
Thread Gender | Male | |
Thread Standard | BSPT | |
Maximum Operating Pressure | 35bar | |
Finish | Nickel Plated | |
Seal Material | NBR | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | 100°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Threaded Connection R 3/8 Male | ||
Coupling Gender Female | ||
Connection Standard Euro 7.8 | ||
Thread Size 3/8in | ||
Coupling Type Quick Connect Coupling Socket | ||
Connection Type Threaded | ||
Material Brass, Steel | ||
Thread Gender Male | ||
Thread Standard BSPT | ||
Maximum Operating Pressure 35bar | ||
Finish Nickel Plated | ||
Seal Material NBR | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 100°C | ||
- COO (Country of Origin):
- TR

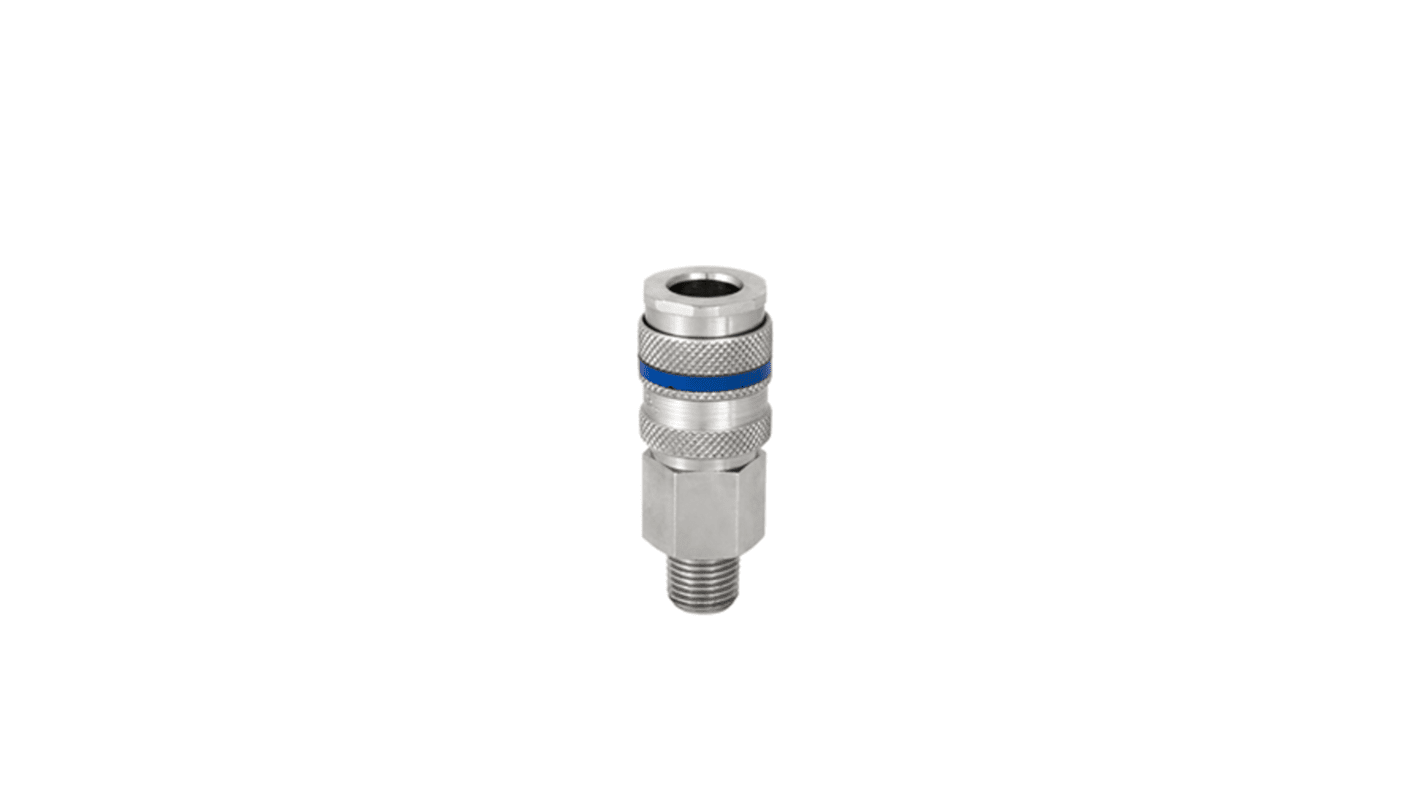

RS PRO Pneumatic Quick Connect Coupling, 3/8 in Male BSPT
The RS PRO Pneumatic Quick Connect Coupling Socket is designed for efficient and reliable connections in pneumatic systems. Ideal for use in robotic assembly lines and various industrial equipment, it ensures durability and effective sealing with its nitrile rubber seal material.
Features and Benefits
Maximum operating pressure 35 bar, ensuring robust performance in demanding applications
Operating temperature range from -20°C to +100°C, suitable for diverse environments
Constructed from brass and steel with a nickel-plated finish, offering corrosion resistance and longevity
Single shut off feature, providing secure and leak-free connections
Euro Profile DN7.8, ensuring compatibility with a wide range of systems
Flow rate of 1800 l/min, supporting high-efficiency operations
Compatible with TST SWING COUPLING C, TST 026, PARKER - RECTUS 25 and 26, CEJN 320, JWL 520 and 530, and PARKER PEF, enhancing versatility
Operating temperature range from -20°C to +100°C, suitable for diverse environments
Constructed from brass and steel with a nickel-plated finish, offering corrosion resistance and longevity
Single shut off feature, providing secure and leak-free connections
Euro Profile DN7.8, ensuring compatibility with a wide range of systems
Flow rate of 1800 l/min, supporting high-efficiency operations
Compatible with TST SWING COUPLING C, TST 026, PARKER - RECTUS 25 and 26, CEJN 320, JWL 520 and 530, and PARKER PEF, enhancing versatility
Applications
Robotic assembly lines
Manufacturing plants
Industrial settings requiring quick and secure pneumatic connections
Manufacturing plants
Industrial settings requiring quick and secure pneumatic connections
Additional Information
Threaded connection: 3/8 in Male BSPT, ensuring easy integration into existing systems
Seal material: NBR (nitrile rubber), providing excellent sealing properties
Seal material: NBR (nitrile rubber), providing excellent sealing properties
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
