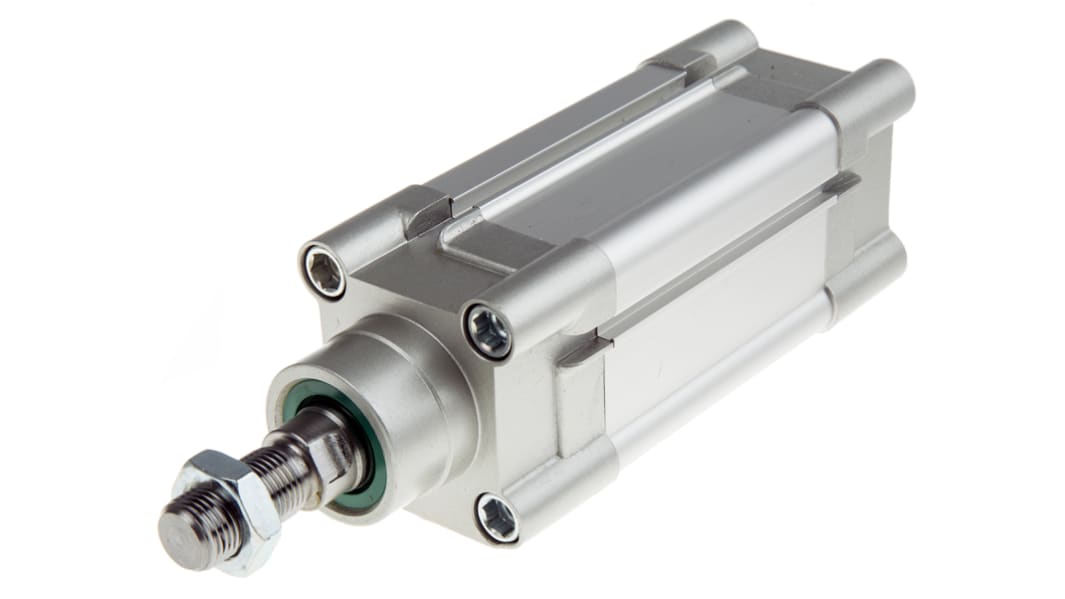

RS PRO Pneumatic Piston Rod Cylinder - 50mm Bore, 50 mm Double Acting Acting
- RS Stock No.:
- 480-2248
- Brand:
- RS PRO
Subtotal (1 unit)*
£117.71
(exc. VAT)
£141.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £117.71 |
*price indicative
- RS Stock No.:
- 480-2248
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | RS PRO | |
| Product Type | Pneumatic Piston Rod Cylinder | |
| Bore Diameter | 50mm | |
| Action Type | Double Acting | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Rubber | |
| Body Material | Anodised Aluminium | |
| Stroke Length | 50mm | |
| Length | 193mm | |
| Maximum Operating Pressure | 10 bar | |
| Rod Type | Single | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread Standard | Metric | |
| Piston Rod Thread Size | M22 x 1.5 | |
| Piston Rod Gender | Female | |
| Maximum Operating Temperature | 80°C | |
| Height | 65mm | |
| Standards/Approvals | RoHS | |
| Width | 65mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Series RS PRO | ||
Product Type Pneumatic Piston Rod Cylinder | ||
Bore Diameter 50mm | ||
Action Type Double Acting | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Rubber | ||
Body Material Anodised Aluminium | ||
Stroke Length 50mm | ||
Length 193mm | ||
Maximum Operating Pressure 10 bar | ||
Rod Type Single | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread Standard Metric | ||
Piston Rod Thread Size M22 x 1.5 | ||
Piston Rod Gender Female | ||
Maximum Operating Temperature 80°C | ||
Height 65mm | ||
Standards/Approvals RoHS | ||
Width 65mm | ||
- COO (Country of Origin):
- IT
VDMA Profile Range Ø 32-50mm
Conforms to Standards: VDMA 24562; (1992); ISO 6431
Double-acting and through-rod versions
Magnetic piston as standard
Clean line cylinder
Stainless steel piston rod
Integral reed switch slot
Seal kits available (a set of O-rings to enable reconditioning of RS VDMA cylinders)
Complete with piston rod nut
Note
The table below shows theoretical cylinder thrusts in Newtons according to cylinder bore, stroke out or in and air pressure. These figures should be multiplied by a factor of 0.85 to account for cylinder efficiency.
