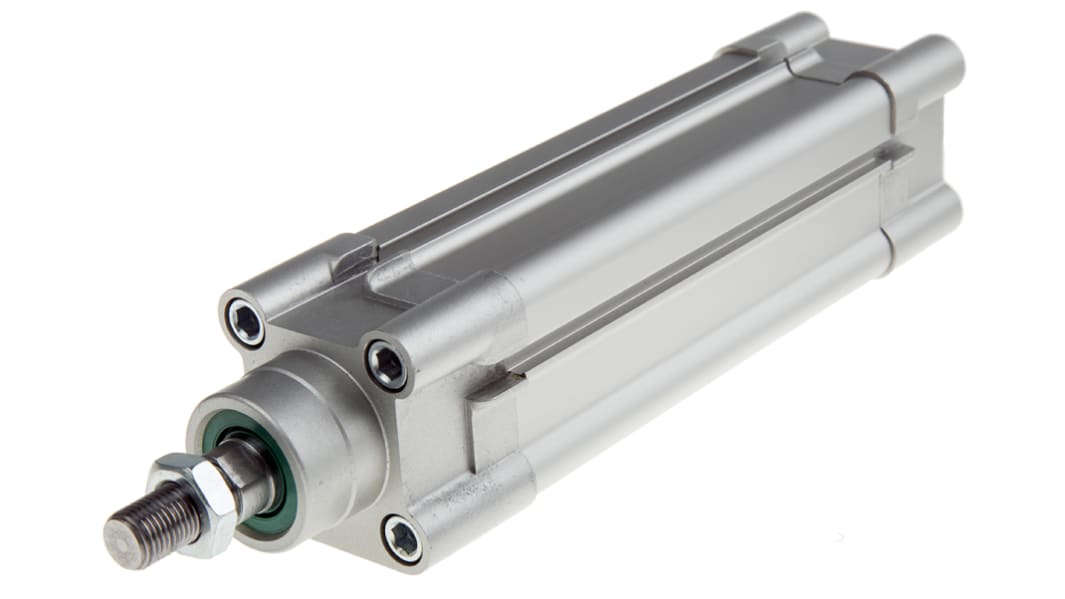

RS PRO Pneumatic Piston Rod Cylinder - 40 mm Bore, 100 mm CDEM Series, Double Acting Acting
- RS Stock No.:
- 480-2204
- Brand:
- RS PRO
Subtotal (1 unit)*
£113.66
(exc. VAT)
£136.39
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10 unit(s) shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £113.66 |
*price indicative
- RS Stock No.:
- 480-2204
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | CDEM | |
| Product Type | Pneumatic Piston Rod Cylinder | |
| Action Type | Double Acting | |
| Bore Size | 40mm | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Rubber | |
| Body Material | Stainless Steel | |
| Stroke Length | 100mm | |
| Length | 235mm | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread Size | M22 x 1.5 | |
| Piston Rod Thread Standard | Metric | |
| Rod Type | Single | |
| Piston Rod Gender | Female | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Width | 54mm | |
| Height | 54mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Series CDEM | ||
Product Type Pneumatic Piston Rod Cylinder | ||
Action Type Double Acting | ||
Bore Size 40mm | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Rubber | ||
Body Material Stainless Steel | ||
Stroke Length 100mm | ||
Length 235mm | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread Size M22 x 1.5 | ||
Piston Rod Thread Standard Metric | ||
Rod Type Single | ||
Piston Rod Gender Female | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
Width 54mm | ||
Height 54mm | ||
- COO (Country of Origin):
- IT
VDMA Profile Range Ø 32-50mm
Conforms to Standards: VDMA 24562; (1992); ISO 6431
Double-acting and through-rod versions
Magnetic piston as standard
Clean line cylinder
Stainless steel piston rod
Integral reed switch slot
Seal kits available (a set of O-rings to enable reconditioning of RS VDMA cylinders)
Complete with piston rod nut
Note
The table below shows theoretical cylinder thrusts in Newtons according to cylinder bore, stroke out or in and air pressure. These figures should be multiplied by a factor of 0.85 to account for cylinder efficiency.
