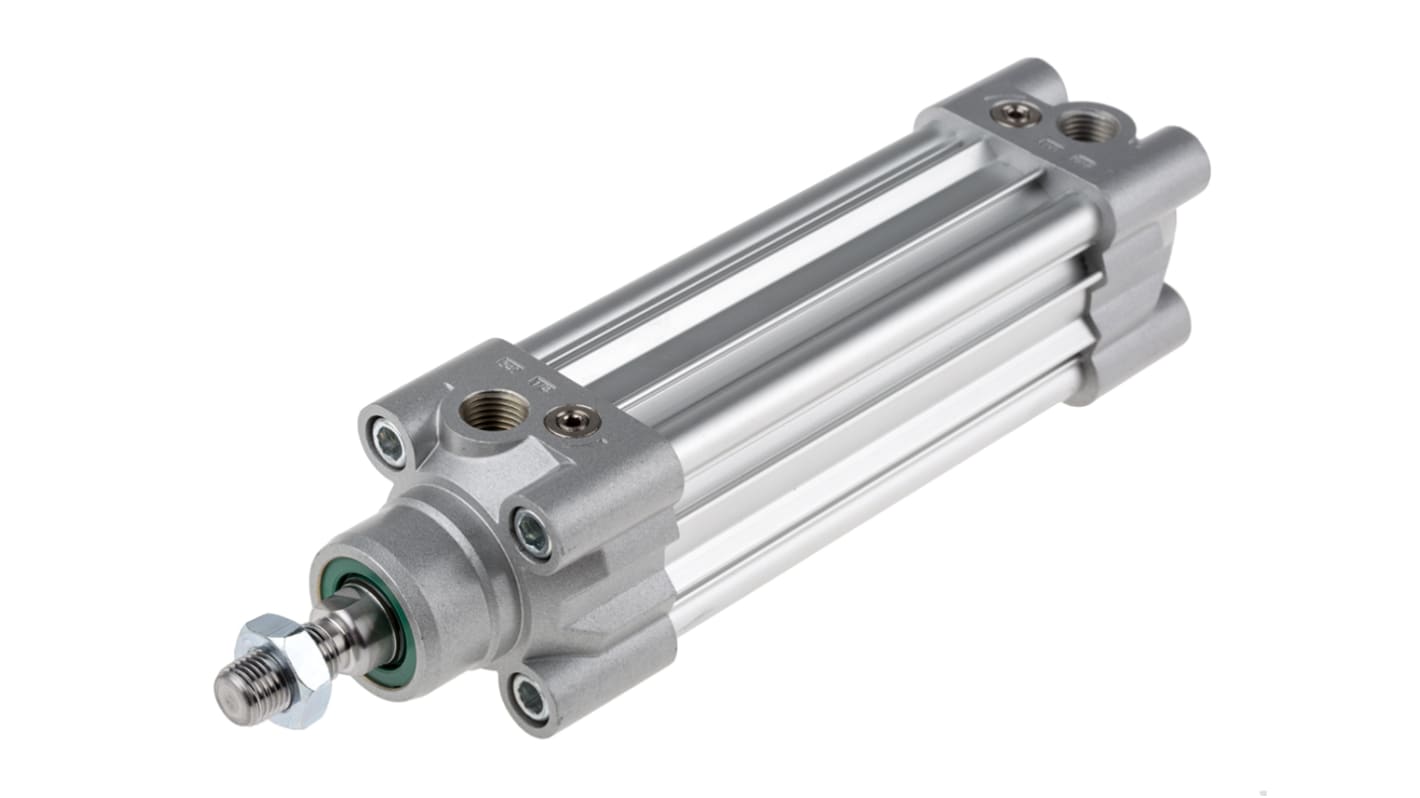

RS PRO Pneumatic Piston Rod Cylinder - 40mm Bore, 80mm Stroke, CDEM Series, Double Acting

View this category

Subtotal (1 unit)*

£109.77

(exc. VAT)

£131.72

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£109.77

*price indicative

RS Stock No.:
480-2197
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Manufacturer Series

CDEM

Bore

40mm

Stroke

80mm

Action

Double

Port Connection

G 1/4

Cushioning Type

Rubber

Dimensions

215 x 54 x 54mm

Length

215mm

Height

54mm

Width

54mm

Maximum Operating Pressure

10 bar

ISO Standard

6431

Minimum Operating Temperature

-20°C

VDMA Standard

24562

Maximum Operating Temperature

+80°C

COO (Country of Origin):
IT

VDMA Profile Range Ø 32-50mm


Conforms to Standards: VDMA 24562; (1992); ISO 6431
Double-acting and through-rod versions
Magnetic piston as standard
Clean line cylinder
Stainless steel piston rod
Integral reed switch slot
Seal kits available (a set of O-rings to enable reconditioning of RS VDMA cylinders)
Complete with piston rod nut

Note

The table below shows theoretical cylinder thrusts in Newtons according to cylinder bore, stroke out or in and air pressure. These figures should be multiplied by a factor of 0.85 to account for cylinder efficiency.
