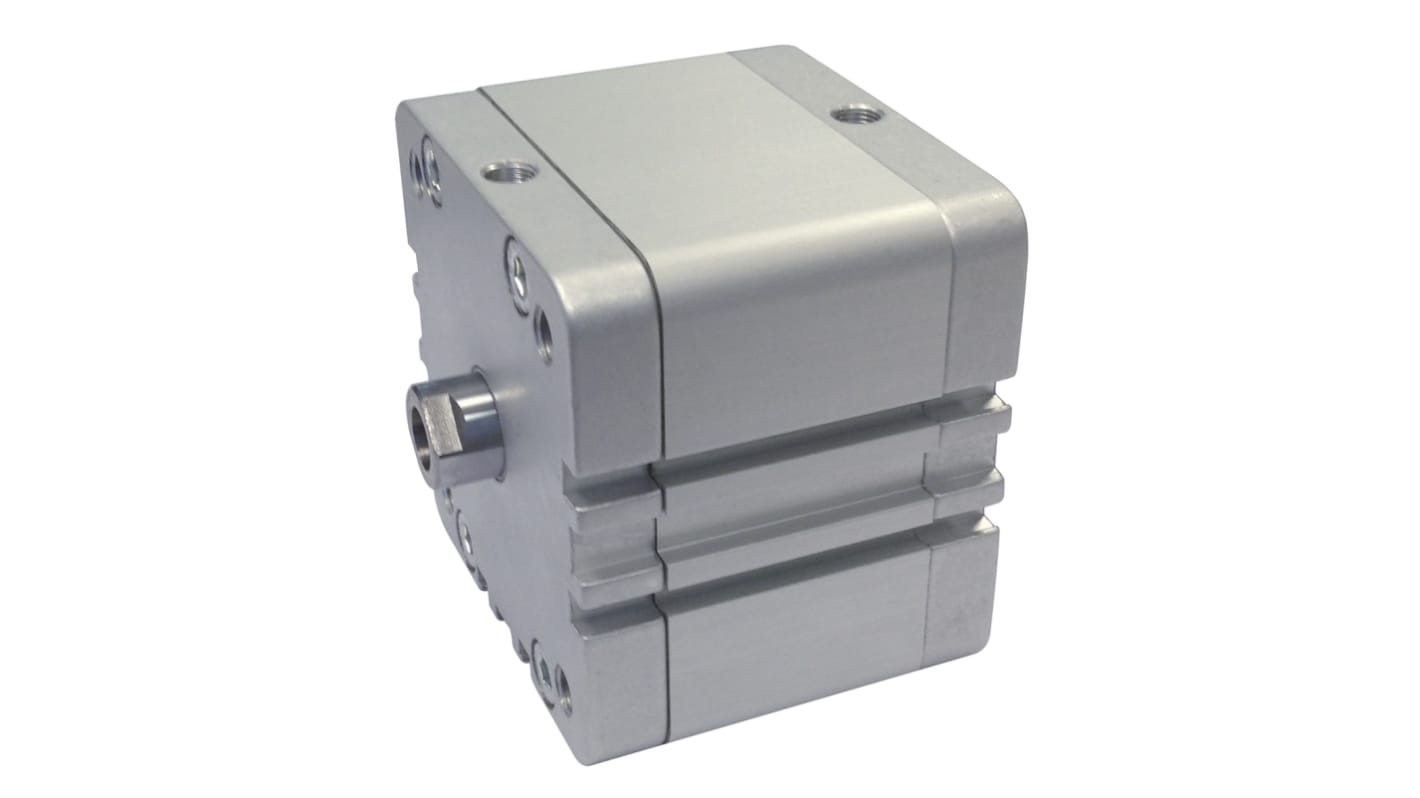

RS PRO Pneumatic Compact Cylinder - 40mm Bore, 100mm Stroke, Double Acting
- RS Stock No.:
- 176-1638
- Brand:
- RS PRO
1 In stock - FREE next working day delivery available
Added
Price Each
£100.11
(exc. VAT)
£120.13
(inc. VAT)
| Units | Per unit |
| 1 + | £100.11 |
- RS Stock No.:
- 176-1638
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
RS Pro double-acting compact cylinders according to ISO 21287 suitable for
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
Specifications
Attribute | Value |
|---|---|
| Stroke | 100mm |
| Bore | 40mm |
| Action | Double |
| Length | 152mm |
| Cushioning Type | Not Cushioned |
| Dimensions | 152 x 55 x 55mm |
| Width | 55mm |
| Maximum Operating Pressure | 10 bar |
| Height | 55mm |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | 0°C |
- RS Stock No.:
- 176-1638
- Brand:
- RS PRO
