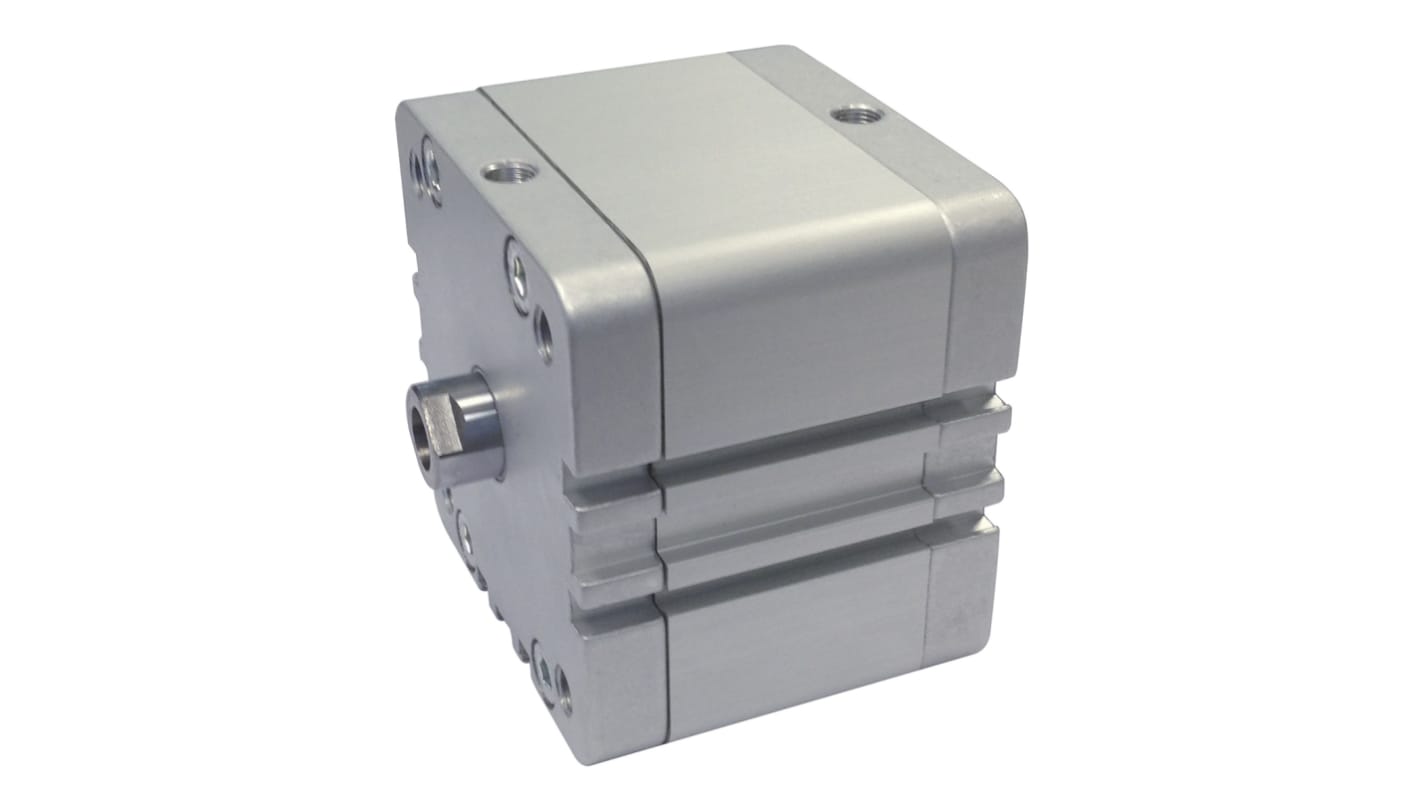

RS PRO Pneumatic Compact Cylinder - 40mm Bore, 125mm Stroke, Double Acting
- RS Stock No.:
- 176-1693
- Brand:
- RS PRO
Subtotal (1 unit)*
£109.16
(exc. VAT)
£130.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £109.16 |
*price indicative
- RS Stock No.:
- 176-1693
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Bore | 40mm | |
Stroke | 125mm | |
Action | Double | |
Port Connection | G 1/8, M8 | |
Cushioning Type | Not Cushioned | |
Dimensions | 177 x 55 x 55mm | |
Length | 177mm | |
Height | 55mm | |
Width | 55mm | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | 0°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Bore 40mm | ||
Stroke 125mm | ||
Action Double | ||
Port Connection G 1/8, M8 | ||
Cushioning Type Not Cushioned | ||
Dimensions 177 x 55 x 55mm | ||
Length 177mm | ||
Height 55mm | ||
Width 55mm | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- IT
RS Pro double-acting compact cylinders according to ISO 21287 suitable for
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
