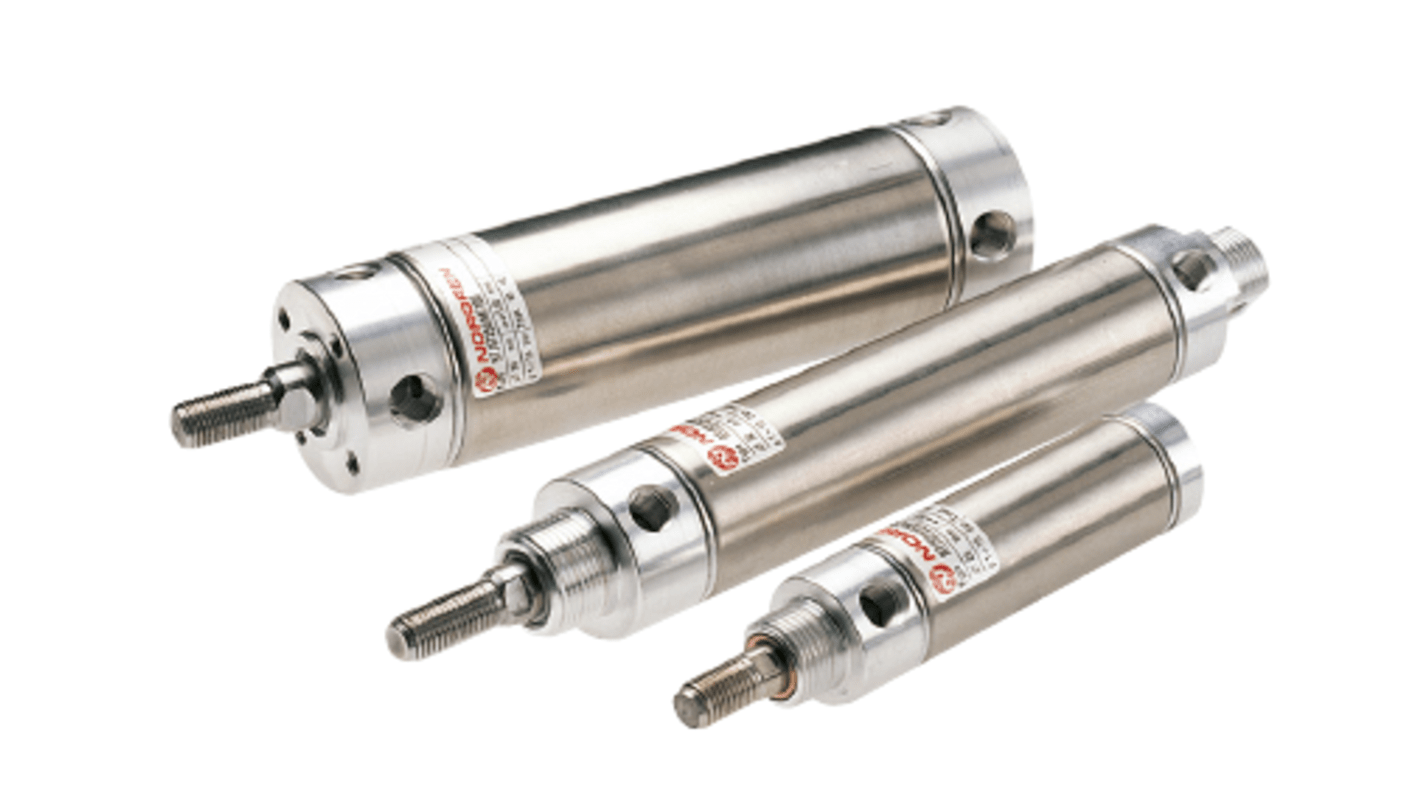

Norgren Pneumatic Roundline Cylinder - RT/57232/M/40 32mm Bore, 40 mm RT57200M Series, Double Acting Acting
- RS Stock No.:
- 220-4088
- Mfr. Part No.:
- RT/57232/M/40
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£107.93
(exc. VAT)
£129.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £107.93 |
| 5 - 9 | £105.77 |
| 10 + | £103.60 |
*price indicative
- RS Stock No.:
- 220-4088
- Mfr. Part No.:
- RT/57232/M/40
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Roundline Cylinder | |
| Series | RT57200M | |
| Model Number | RT/57232/M/40 | |
| Action Type | Double Acting | |
| Bore Diameter | 32mm | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Adjustable | |
| Body Material | Stainless Steel | |
| Length | 40mm | |
| Stroke Length | 40mm | |
| Maximum Operating Pressure | 10 bar | |
| Rod Type | Double | |
| Minimum Operating Temperature | -10°C | |
| Piston Rod Gender | Male | |
| Piston Rod Thread Size | 1/4 in Rc | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | No | |
| Width | 33.5mm | |
| Height | 33.5mm | |
| Weight | 466g | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Roundline Cylinder | ||
Series RT57200M | ||
Model Number RT/57232/M/40 | ||
Action Type Double Acting | ||
Bore Diameter 32mm | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Adjustable | ||
Body Material Stainless Steel | ||
Length 40mm | ||
Stroke Length 40mm | ||
Maximum Operating Pressure 10 bar | ||
Rod Type Double | ||
Minimum Operating Temperature -10°C | ||
Piston Rod Gender Male | ||
Piston Rod Thread Size 1/4 in Rc | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals No | ||
Width 33.5mm | ||
Height 33.5mm | ||
Weight 466g | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Roundline Cylinder, 32mm Bore, 1 to 10 Bar Operating Pressure - RT/57200/M Series - RT/57232/M/40
Use this pneumatic roundline cylinder from IMI Norgren to support your factory automation tasks. As it's a double-acting cylinder, it uses compressed air to extend and retract for use in applications that need movement in both directions. Thanks to a wide operating pressure range of 1 to 10 bar, this unit is suitable for use in low-pressure and high-pressure applications. Its stainless steel rod is resistant to corrosion and impact, so you can be sure of long-lasting performance in harsh environments.
Features & Benefits
• NBR seals are resistant to wear and chemicals to prevent leaks
• Force of 414N for powerful movement
• Wide operating temperature range of -10°C to +80°C for use in demanding environments
• Light weight of 0.466kg to place minimal strain on your system
• Compatible with filtered, lubricated or non-lubricated compressed air for versatility
Applications
• Automated processes
• Packaging lines
• Logistics and transportation
What's the stroke length of this cylinder?
This cylinder has a short stroke length of 40mm, making it a good choice for use in setups where space is limited.
