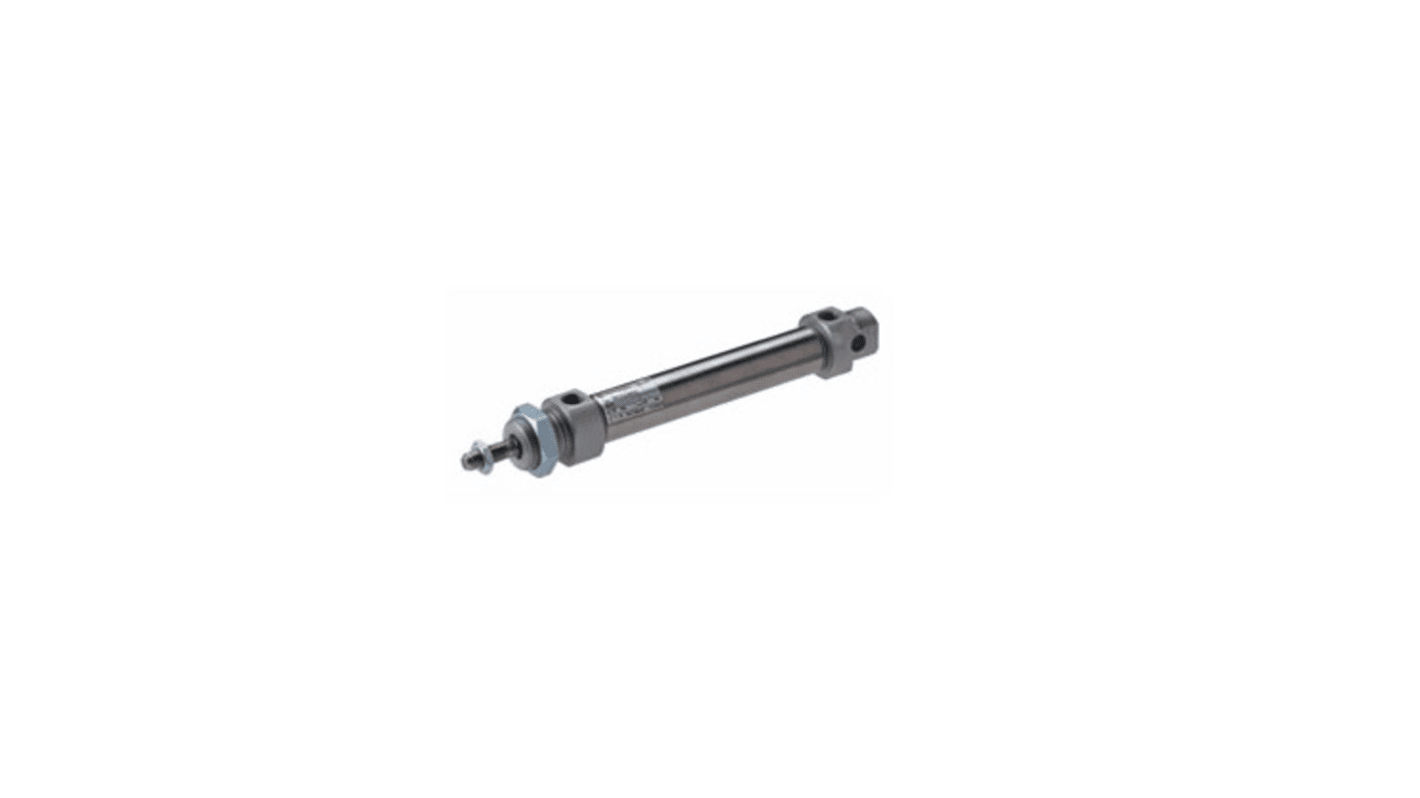

Norgren Pneumatic Roundline Cylinder - 20 mm Bore, 250 mm RM/8000/M Series, Double Acting Acting
- RS Stock No.:
- 220-4012
- Mfr. Part No.:
- RM/8020/M/250
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£66.65
(exc. VAT)
£79.98
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 01 June 2026
- Plus 3 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £66.65 |
| 5 - 9 | £65.31 |
| 10 + | £63.97 |
*price indicative
- RS Stock No.:
- 220-4012
- Mfr. Part No.:
- RM/8020/M/250
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Roundline Cylinder | |
| Series | RM/8000/M | |
| Action Type | Double Acting | |
| Bore Size | 20mm | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Adjustable | |
| Body Material | Stainless Steel | |
| Length | 250mm | |
| Stroke Length | 250mm | |
| Maximum Operating Pressure | 10 bar | |
| Piston Rod Thread Size | M8 | |
| Minimum Operating Temperature | -10°C | |
| Piston Rod Gender | Female | |
| Rod Type | Double | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | No | |
| Width | 30mm | |
| Height | 30mm | |
| Weight | 0.325kg | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Roundline Cylinder | ||
Series RM/8000/M | ||
Action Type Double Acting | ||
Bore Size 20mm | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Adjustable | ||
Body Material Stainless Steel | ||
Length 250mm | ||
Stroke Length 250mm | ||
Maximum Operating Pressure 10 bar | ||
Piston Rod Thread Size M8 | ||
Minimum Operating Temperature -10°C | ||
Piston Rod Gender Female | ||
Rod Type Double | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals No | ||
Width 30mm | ||
Height 30mm | ||
Weight 0.325kg | ||
RoHS Status: Exempt
The IMI Norgren RM/8020/M/250 is a ISO round line double acting cylinder. It has a magnetic piston, it has stroke length of 250 mm and a cylinder diameter of 20mm.
Conforms to ISO 6432
High strength, double crimped end cap design
Corrosion resistant
Buffer or adjustable cushioning
Nose mounting nut and piston rod locknut as standard
