Norgren Double Acting Cylinder - 50mm Bore, 50mm Stroke, RA Series, Double Acting
- RS Stock No.:
- 218-0269
- Mfr. Part No.:
- RA/802050/M/50
- Brand:
- Norgren
Save 3% when you buy 10 units
Subtotal (1 unit)*
£140.73
(exc. VAT)
£168.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 999,999,999 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £140.73 |
5 - 9 | £137.93 |
10 + | £135.11 |
*price indicative
- RS Stock No.:
- 218-0269
- Mfr. Part No.:
- RA/802050/M/50
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | RA | |
Bore | 50mm | |
Action | Double | |
Stroke | 50mm | |
Cushioning Type | Air | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 15552 | |
Test Weight | 1.09 kg | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series RA | ||
Bore 50mm | ||
Action Double | ||
Stroke 50mm | ||
Cushioning Type Air | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 15552 | ||
Test Weight 1.09 kg | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

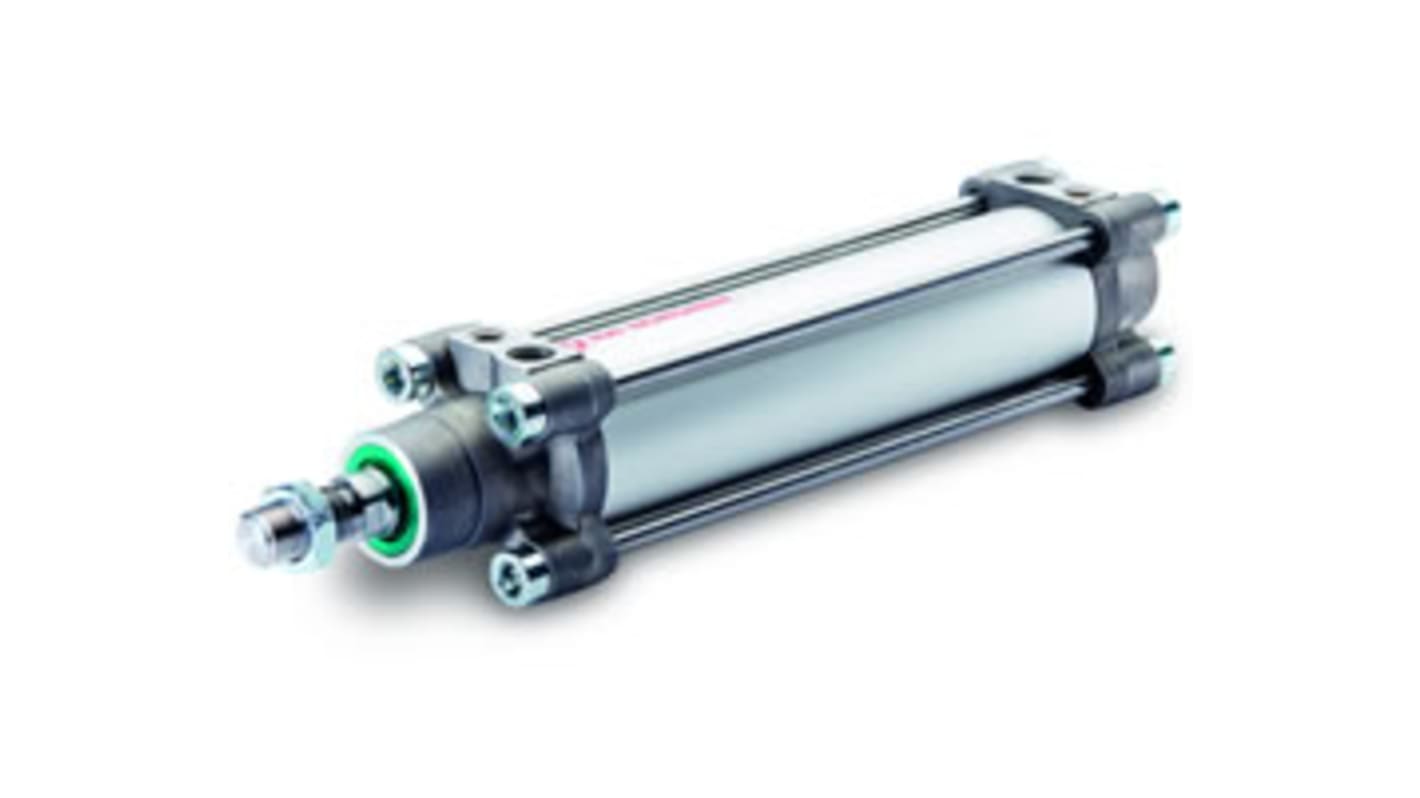

IMI Norgren Double-Acting Cylinder, Adaptive Cushioning System, 103mm Length - RA/802000/M Series - RA/802050/M/50
Give your automation freedom of movement with this double-acting cylinder from IMI Norgren. As it uses air flowing through its two ports to control motion in both directions, it's the ideal choice for carrying out precision pushing and pulling tasks. The unit's integral cushioning adapts to the load at hand without the need for manual tweaks, making it swift to set up and simple to use. Robust PUR seals keep contaminants at bay to ensure tip-top piston function. For more complex setups, you can easily add articulated joints (192-8662) to fit your application.
Features & Benefits
• Light weight of 0.76kg doesn't add strain to your assembly
• Robust anodised aluminium barrel resists corrosion to deliver long-term performance
• Wide operating temperature range between -20°C and +80°C suits demanding conditions
• Robust anodised aluminium barrel resists corrosion to deliver long-term performance
• Wide operating temperature range between -20°C and +80°C suits demanding conditions
Applications
• Railway industry
• Industrial automation
• Assembly lines
• Packaging plants
• Industrial automation
• Assembly lines
• Packaging plants
Can I mount a switch on this double-acting cylinder?
Yes. As the cylinder's rod is magnetic, you can use reed switches (218-0617) and solid-state switches (218-0610) for position sensing. The profile-barrel design means these can be mounted flush with the body.
