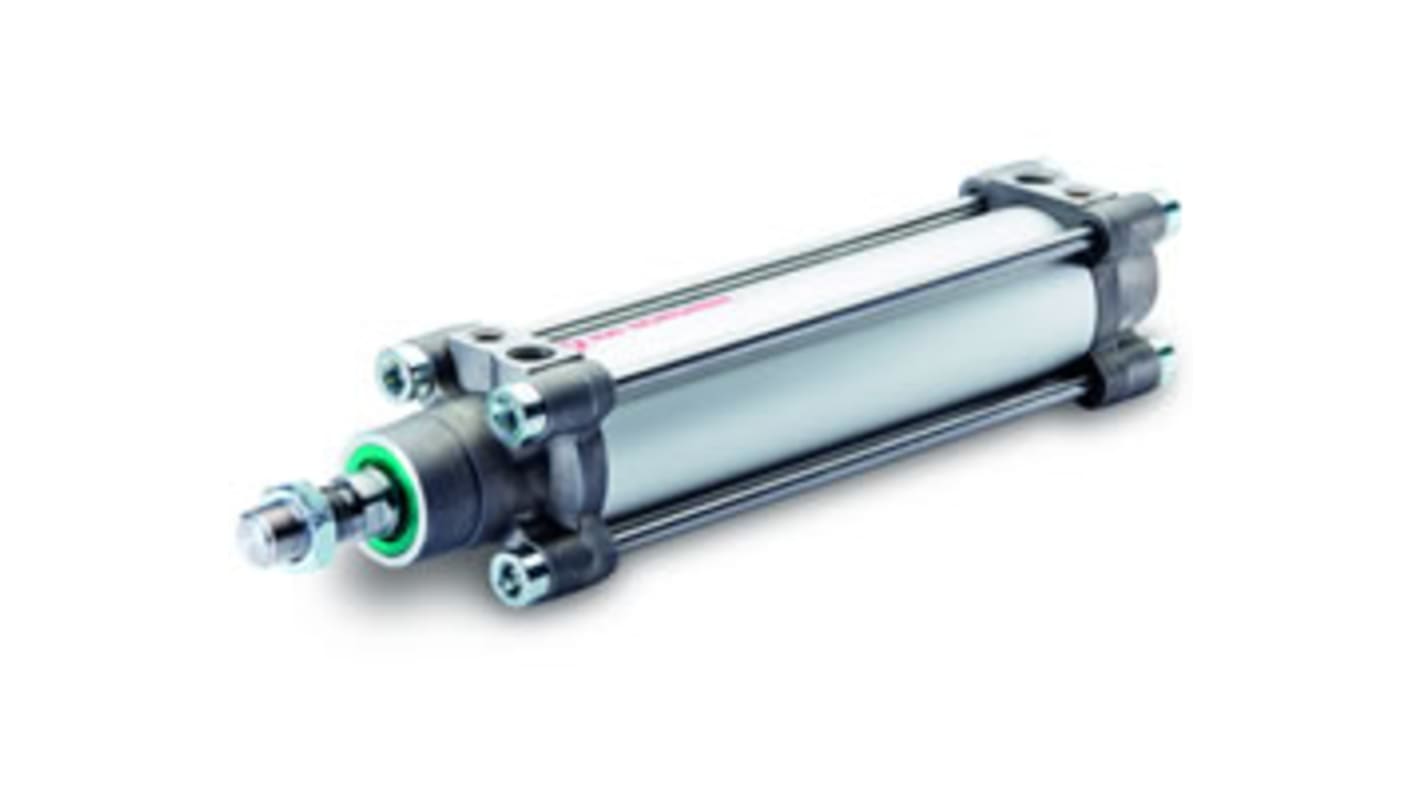

Norgren Double Acting Cylinder - 50mm Bore, 160 mm 50 mm Series, Double Acting Acting
- RS Stock No.:
- 218-0266
- Mfr. Part No.:
- RA/802050/M/160
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£164.07
(exc. VAT)
£196.88
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £164.07 |
| 5 - 9 | £160.78 |
| 10 + | £157.51 |
*price indicative
- RS Stock No.:
- 218-0266
- Mfr. Part No.:
- RA/802050/M/160
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Series | 50 mm | |
| Product Type | Double Acting Cylinder | |
| Action Type | Double Acting | |
| Bore Diameter | 50mm | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Adjustable | |
| Body Material | Aluminium | |
| Stroke Length | 160mm | |
| Length | 160mm | |
| Maximum Operating Pressure | 16 bar | |
| Minimum Operating Temperature | -20°C | |
| Rod Type | Double | |
| Piston Rod Gender | Male | |
| Piston Rod Thread Size | M16 | |
| Maximum Operating Temperature | 80°C | |
| Height | 66mm | |
| Weight | 1.42kg | |
| Width | 66mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Series 50 mm | ||
Product Type Double Acting Cylinder | ||
Action Type Double Acting | ||
Bore Diameter 50mm | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Adjustable | ||
Body Material Aluminium | ||
Stroke Length 160mm | ||
Length 160mm | ||
Maximum Operating Pressure 16 bar | ||
Minimum Operating Temperature -20°C | ||
Rod Type Double | ||
Piston Rod Gender Male | ||
Piston Rod Thread Size M16 | ||
Maximum Operating Temperature 80°C | ||
Height 66mm | ||
Weight 1.42kg | ||
Width 66mm | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The IMI Norgren ISO line double acting cylinders are the most sought after solution which is incorporated into applications involving pneumatics. The feature of Adaptive Cushioning System(ACS) makes the device versatile to be operated even in extreme cond
Follows standard ISO 15552
Available in double acting as well as adjustable cushioning
Rail cylinder shock and vibration tested to EN 61373 Category 1, Class A + B
High performance Adaptive Cushioning System(ACS)
Available in standard ranges of 32 to 320
