Norgren Double Acting Cylinder - 80mm Bore, 160 mm 80 mm Series, Double Acting Acting
- RS Stock No.:
- 218-0281
- Mfr. Part No.:
- RA/802080/M/160
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£257.40
(exc. VAT)
£308.88
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £257.40 |
| 5 + | £252.25 |
*price indicative
- RS Stock No.:
- 218-0281
- Mfr. Part No.:
- RA/802080/M/160
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Double Acting Cylinder | |
| Series | 80 mm | |
| Action Type | Double Acting | |
| Bore Diameter | 80mm | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Adjustable | |
| Body Material | Aluminium | |
| Stroke Length | 160mm | |
| Length | 160mm | |
| Maximum Operating Pressure | 16 bar | |
| Piston Rod Gender | Male | |
| Rod Type | Double | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread Size | M20 | |
| Maximum Operating Temperature | 80°C | |
| Height | 96mm | |
| Width | 96mm | |
| Standards/Approvals | No | |
| Weight | 2.51kg | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Double Acting Cylinder | ||
Series 80 mm | ||
Action Type Double Acting | ||
Bore Diameter 80mm | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Adjustable | ||
Body Material Aluminium | ||
Stroke Length 160mm | ||
Length 160mm | ||
Maximum Operating Pressure 16 bar | ||
Piston Rod Gender Male | ||
Rod Type Double | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread Size M20 | ||
Maximum Operating Temperature 80°C | ||
Height 96mm | ||
Width 96mm | ||
Standards/Approvals No | ||
Weight 2.51kg | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

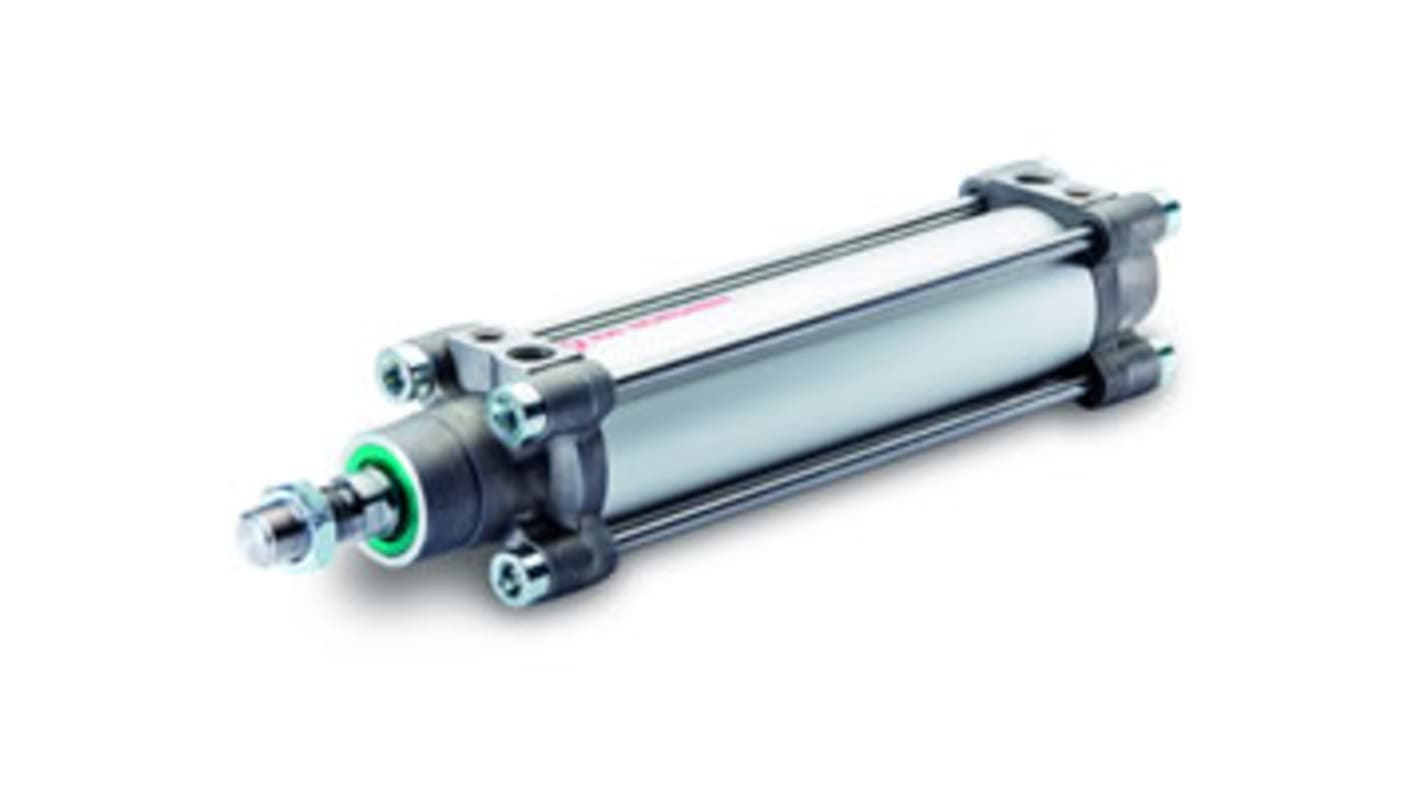

The IMI Norgren ISO line double acting cylinders are the most sought after solution which is incorporated into applications involving pneumatics. The feature of Adaptive Cushioning System(ACS) makes the device versatile to be operated even in extreme cond
Follows standard ISO 15552
Available in double acting as well as adjustable cushioning
Rail cylinder shock and vibration tested to EN 61373 Category 1, Class A + B
High performance Adaptive Cushioning System(ACS)
Available in standard ranges of 32 to 320
