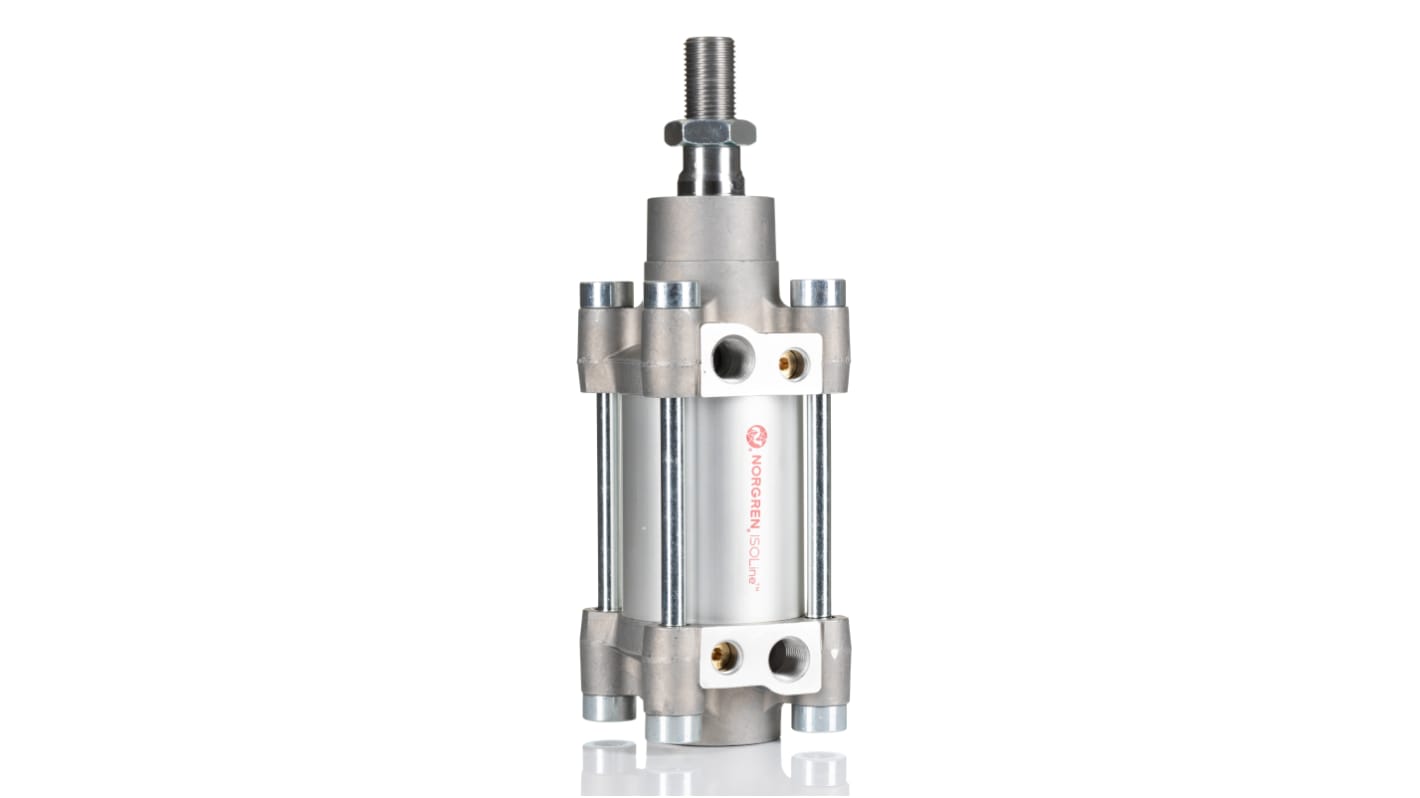

Norgren Double Acting Cylinder - 50mm Bore, 25mm Stroke, RA Series, Double Acting

View this category
Bulk discount available

Subtotal (1 unit)*

£137.32

(exc. VAT)

£164.78

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 unit(s) shipping from 13 October 2025
  • Plus 999,999,998 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£137.32
5 - 9£134.59
10 +£131.84

*price indicative

RS Stock No.:
218-0268
Mfr. Part No.:
RA/802050/M/25
Brand:
Norgren
Find similar products by selecting one or more attributes.
Select all

Brand

Norgren

Manufacturer Series

RA

Action

Double

Stroke

25mm

Bore

50mm

Pneumatic Connection

G 1/4

Piston Rod Thread Gender

Male

Cushioning Type

Cushioned

Dimensions

178.5 x 65 x 65mm

Diameter

50mm

Height

65mm

Width

65mm

Length

178.5mm

Maximum Operating Pressure

12 bar

Minimum Operating Temperature

-20°C

Stroke Interval Weight

0.12 kg (at 25 mm)

Test Weight

1.02 kg (at 0 mm)

Maximum Operating Temperature

+80°C

Weight

610g

RoHS Status: Exempt

COO (Country of Origin):
DE

IMI Norgren Double-Acting Cylinder, 610g Weight, 1 to 16 Bar Operating Pressure Range - RA Series - RA/802050/M/25


Get your machinery moving in the right direction with this double-acting cylinder from IMI Norgren. As it's double-acting, it features open ports on both ends to let compressed air in and out. The force of this air moves the piston rod back and forth to create linear motion, removing the need for a spring reset and achieving consistent repeatability. A robust adaptive cushioning system means the cylinder adjusts its cushioning to match the position of the rod, taking the task of manually resetting it off your hands.

Features & Benefits


• NBR O-rings to help prevent leakage and maintain pressure
• Threaded G1/4 port connection for tool-free mounting and easy compatibility

Applications


• Marine engineering
• Oil and gas industry
• Hydraulic equipment

What type of seal does the double-acting cylinder have?


This component's seal is made from PUR, so you can be sure it resists chemicals and impact.

What's this cylinder made from?


The barrel's made from hardwearing anodised aluminium, which resists mechanical wear. For durability, the piston rod is made from rugged stainless steel that stands up to corrosion.
