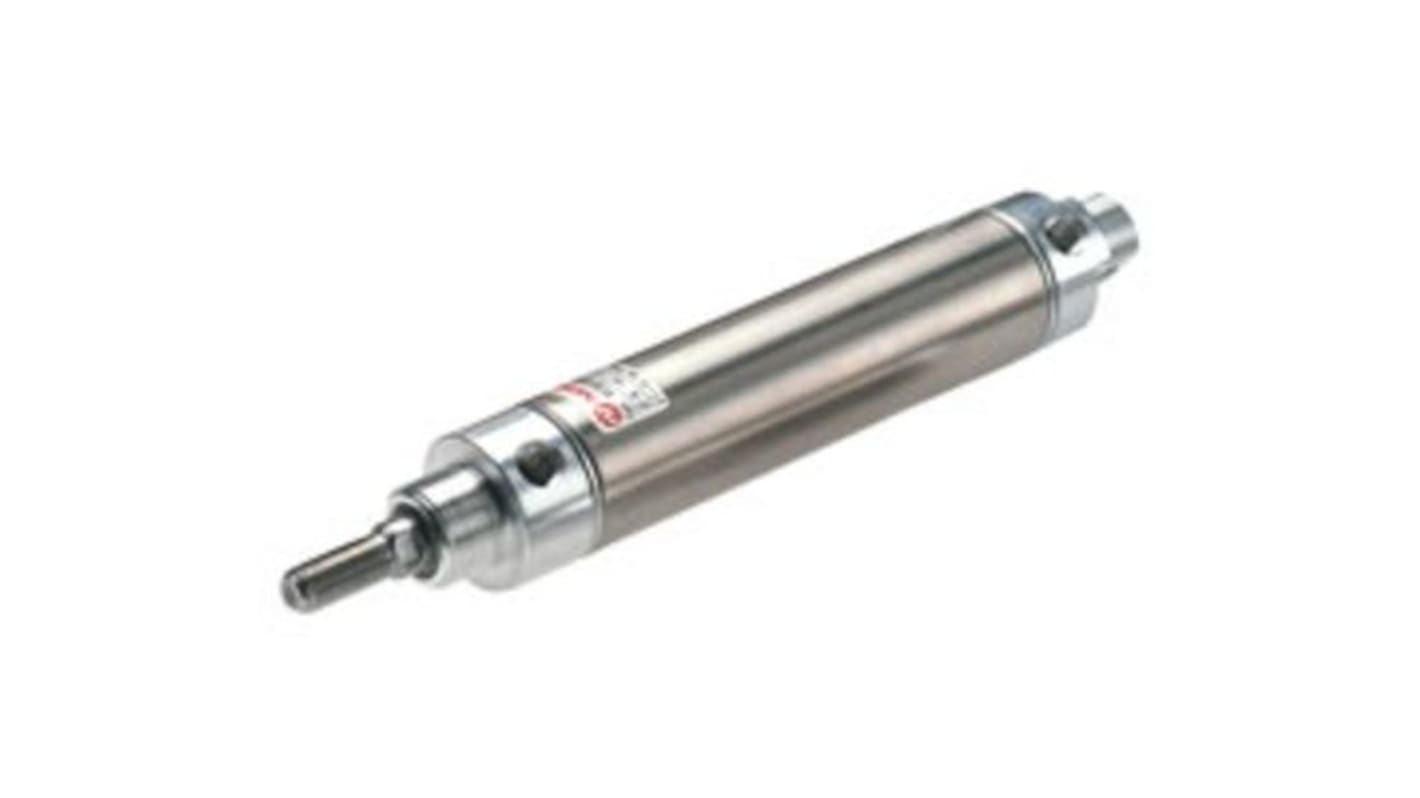

Norgren Pneumatic Roundline Cylinder - 50 mm Bore, 160 mm RT57200M Series, Double Acting Acting
- RS Stock No.:
- 212-9331
- Mfr. Part No.:
- RT/57250/M/160
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£166.88
(exc. VAT)
£200.26
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2 unit(s) shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £166.88 |
| 5 + | £160.20 |
*price indicative
- RS Stock No.:
- 212-9331
- Mfr. Part No.:
- RT/57250/M/160
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Series | RT57200M | |
| Product Type | Pneumatic Roundline Cylinder | |
| Bore Size | 50mm | |
| Action Type | Double Acting | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Adjustable | |
| Body Material | Stainless Steel | |
| Stroke Length | 160mm | |
| Length | 160mm | |
| Maximum Operating Pressure | 10 bar | |
| Piston Rod Thread Size | M12 | |
| Piston Rod Gender | Female | |
| Rod Type | Double | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 80°C | |
| Width | 52.5mm | |
| Standards/Approvals | No | |
| Weight | 0.886kg | |
| Height | 52.5mm | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Series RT57200M | ||
Product Type Pneumatic Roundline Cylinder | ||
Bore Size 50mm | ||
Action Type Double Acting | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Adjustable | ||
Body Material Stainless Steel | ||
Stroke Length 160mm | ||
Length 160mm | ||
Maximum Operating Pressure 10 bar | ||
Piston Rod Thread Size M12 | ||
Piston Rod Gender Female | ||
Rod Type Double | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 80°C | ||
Width 52.5mm | ||
Standards/Approvals No | ||
Weight 0.886kg | ||
Height 52.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
The IMI Norgren RT/57200/M series double acting pneumatic rounline cylinder with magnetic piston and non-cushioned. It has a 50mm cylinder diameter and 160mm stroke. The operating pressure is ranges between 1 bar and 10 bar. It is a low frication, long life seal design with high strength doubled crimped end cap.
Port size = G1/4
Piston rod = 16mm
Material = stainless steel
Operating temperature = 80°C
