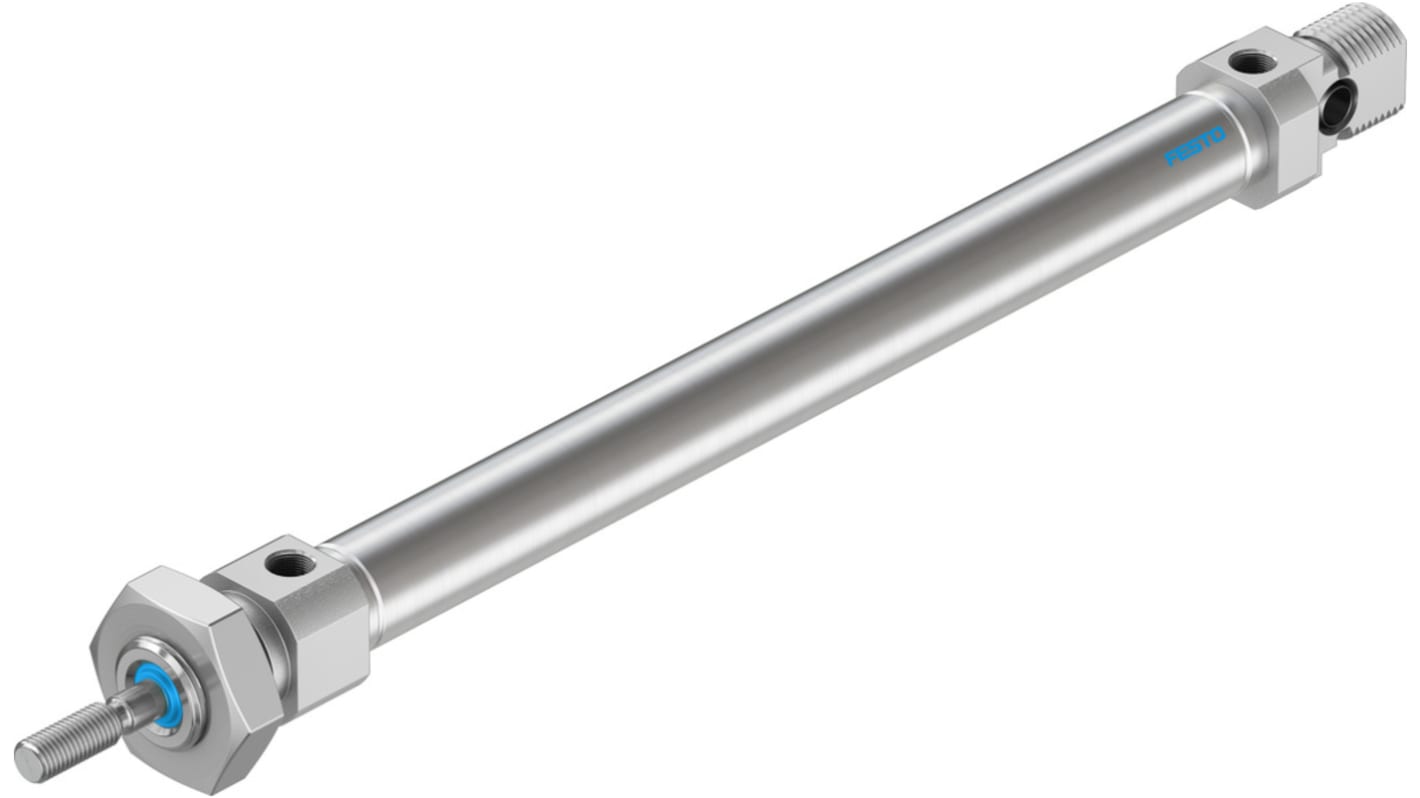

Festo Pneumatic Roundline Cylinder - 19188, 10mm Bore, 100mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 203-8022
- Mfr. Part No.:
- DSNU-10-100-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£42.44
(exc. VAT)
£50.93
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 5 left, ready to ship
- Plus 9 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £42.44 |
*price indicative
- RS Stock No.:
- 203-8022
- Mfr. Part No.:
- DSNU-10-100-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 19188 | |
Bore | 10mm | |
Action | Double | |
Stroke | 100mm | |
Pneumatic Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 6432 | |
Test Weight | 37.3 g | |
VDMA Standard | VDMA24364-B1/B2-L | |
Maximum Operating Temperature | '+80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 19188 | ||
Bore 10mm | ||
Action Double | ||
Stroke 100mm | ||
Pneumatic Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 6432 | ||
Test Weight 37.3 g | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Maximum Operating Temperature '+80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Festo DSNU Series Pneumatic Roundline Cylinder, 10mm Bore, 100mm Stroke - DSNU-10-100-P-A, Numeric Part Number: 19188
This cylinder, part of the DSNU series, features a piston diameter of 10 mm and a stroke length of 100 mm, offering efficient performance in various applications. The device operates within a temperature range of -20 to 80°C and is designed for pressures up to 10 bar, making it highly versatile. Additionally, it employs elastic cushioning rings at both ends, ensuring smoother operation and reduced wear.
Features & Benefits
• Double-acting functionality for versatile motion control
• Elastic cushioning enhances impact absorption and reduces wear
• Designed for operating pressures from 1.5 to 10 Bar
• High-alloy stainless steel construction ensures durability
• ISO 6432 compliance ensures interoperability with other systems
• Proximity sensor compatible for precise position feedback
• Elastic cushioning enhances impact absorption and reduces wear
• Designed for operating pressures from 1.5 to 10 Bar
• High-alloy stainless steel construction ensures durability
• ISO 6432 compliance ensures interoperability with other systems
• Proximity sensor compatible for precise position feedback
Applications
• Ideal for linear actuators in automation systems
• Utilised in robotics for precise movement control
• Suitable for handling tasks in production lines
• Effective in packaging machinery for consistent operation
• Employed in pneumatic systems requiring robust performance
• Utilised in robotics for precise movement control
• Suitable for handling tasks in production lines
• Effective in packaging machinery for consistent operation
• Employed in pneumatic systems requiring robust performance
Can this cylinder operate in a standard cleanroom environment?
Yes, it complies with Class 6 cleanliness standards.
