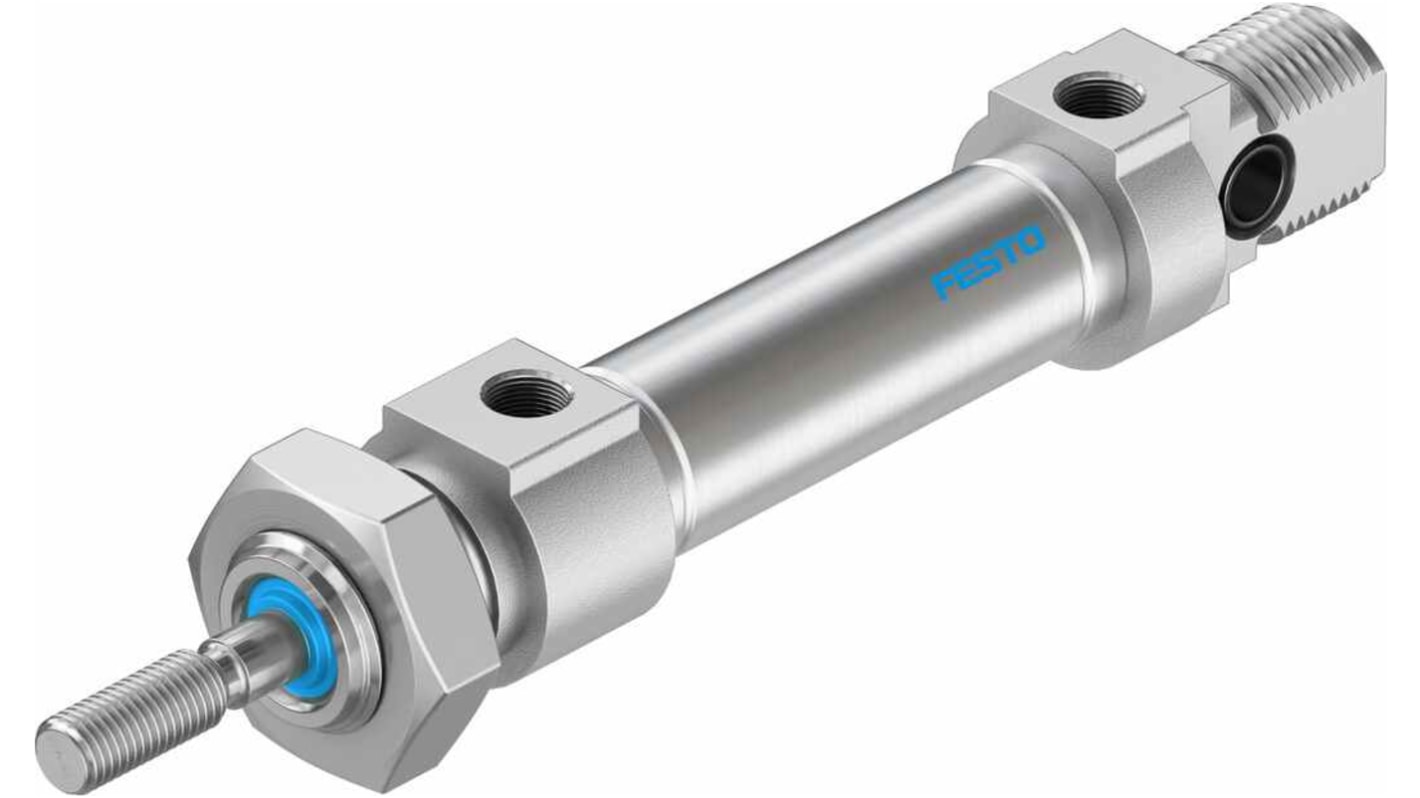

Festo Pneumatic Roundline Cylinder - 19183, 10mm Bore, 10mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 202-1781
- Mfr. Part No.:
- DSNU-10-10-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£41.36
(exc. VAT)
£49.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 33 unit(s) shipping from 06 October 2025
- Plus 10 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £41.36 |
*price indicative
- RS Stock No.:
- 202-1781
- Mfr. Part No.:
- DSNU-10-10-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 19183 | |
Bore | 10mm | |
Action | Double | |
Stroke | 10mm | |
Pneumatic Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Dimensions | 15 x 96mm | |
Width | 19mm | |
Diameter | 11.3mm | |
Length | 96mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
Stroke Interval Weight | 2.7 g | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Test Weight | 37.3 g | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 19183 | ||
Bore 10mm | ||
Action Double | ||
Stroke 10mm | ||
Pneumatic Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Dimensions 15 x 96mm | ||
Width 19mm | ||
Diameter 11.3mm | ||
Length 96mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Stroke Interval Weight 2.7 g | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Test Weight 37.3 g | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Roundline Cylinder, 10 mm Bore, 10 mm Stroke, Double-Acting - DSNU Series - DSNU-10-10-P-A
This roundline cylinder from Festo provides linear motion in automation systems. It's well-suited for pick-and-place and open/close functions for small loads at low speeds. Both the rod and barrel are constructed from high-alloy stainless steel, so you can be confident of a long service life. Elastomer cushioning on either end quickly and effectively reduces impact forces when the cylinder rod reaches the end position. Because it's a double-acting cylinder, you can use it with machinery that needs more than one movement. This also lets it extend and retract without needing a spring.
• No adjustment needed for cushioning
• Flexible installation options
• Wide operating temperature range of -20°C to +80°C, for use in tough industrial settings
• Supplied with standard M5 pneumatic connections, so it's easy to fit into modular systems
• Flexible installation options
• Wide operating temperature range of -20°C to +80°C, for use in tough industrial settings
• Supplied with standard M5 pneumatic connections, so it's easy to fit into modular systems
Application Information
• Construction sector
• Manufacturing
• Food processing lines
• Manufacturing
• Food processing lines
What cover material is used in this unit?
This unit uses plain anodised wrought aluminium alloy, which is lightweight and moderately corrosion-resistant.
Can this cylinder be used for position sensing?
Yes, the piston rod is magnetic, so it can be used for position-sensing.
