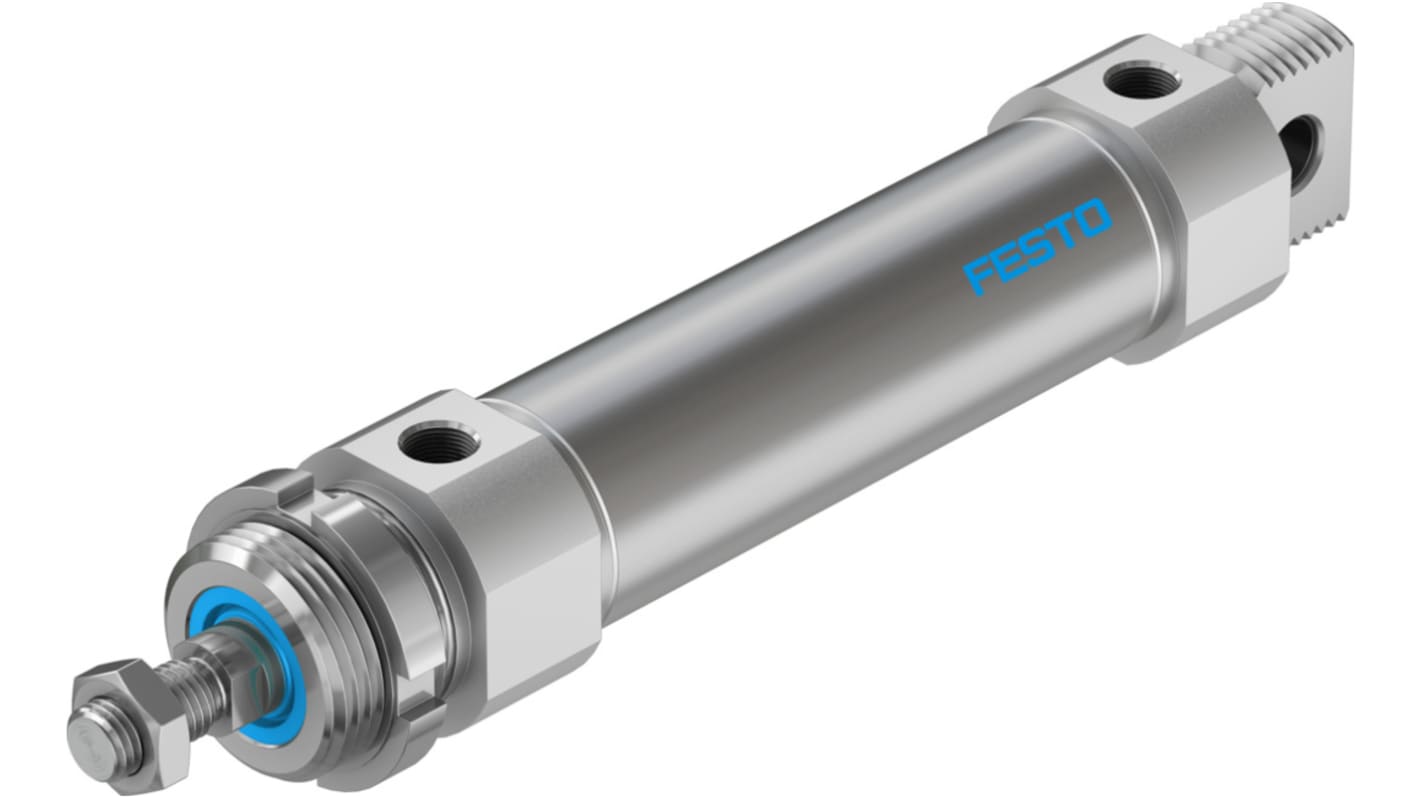

Festo Pneumatic Roundline Cylinder - 195994, 40mm Bore, 100mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 203-7872
- Mfr. Part No.:
- DSNU-40-100-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£89.52
(exc. VAT)
£107.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £89.52 |
*price indicative
- RS Stock No.:
- 203-7872
- Mfr. Part No.:
- DSNU-40-100-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 195994 | |
Bore | 40mm | |
Stroke | 100mm | |
Action | Double | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 195994 | ||
Bore 40mm | ||
Stroke 100mm | ||
Action Double | ||
- COO (Country of Origin):
- DE
Festo DSNU Series Pneumatic Round line Cylinder, 100mm Stroke, 40mm Bore - DSNU-40-100-P-A, Numeric Part Number: 195994
This pneumatic round line cylinder is designed to enhance automation solutions and is suited for applications requiring precise linear motion. Utilising a double-acting mode, it operates on compressed air to facilitate force transmission in various industrial environments. Its robust construction and cushioning make it suitable for both dynamic and static applications.
Features & Benefits
• Compact design compatible with various mounting positions
• Elastic cushioning at both ends improves impact absorption
• Double-acting functionality ensures efficiency
• Corrosion-resistant materials enhance durability
• Proximity switch compatibility enables position detection
• Elastic cushioning at both ends improves impact absorption
• Double-acting functionality ensures efficiency
• Corrosion-resistant materials enhance durability
• Proximity switch compatibility enables position detection
Applications
• Suitable for precise linear motion in assembly lines
• Automation of processes in packaging machines
• Clamping operations in machining applications
• Integration into conveyor systems for product handling
• Automation of processes in packaging machines
• Clamping operations in machining applications
• Integration into conveyor systems for product handling
What type of operating medium is required?
The system operates using compressed air, conforming to ISO 8573-1 standards.
Can it be used in high-temperature environments?
Yes, it functions effectively in ambient temperatures ranging from -20 to 80°C.
What is the theoretical force output at standard pressure?
At 0.6 MPa, it generates a return stroke force of 633.3N.
