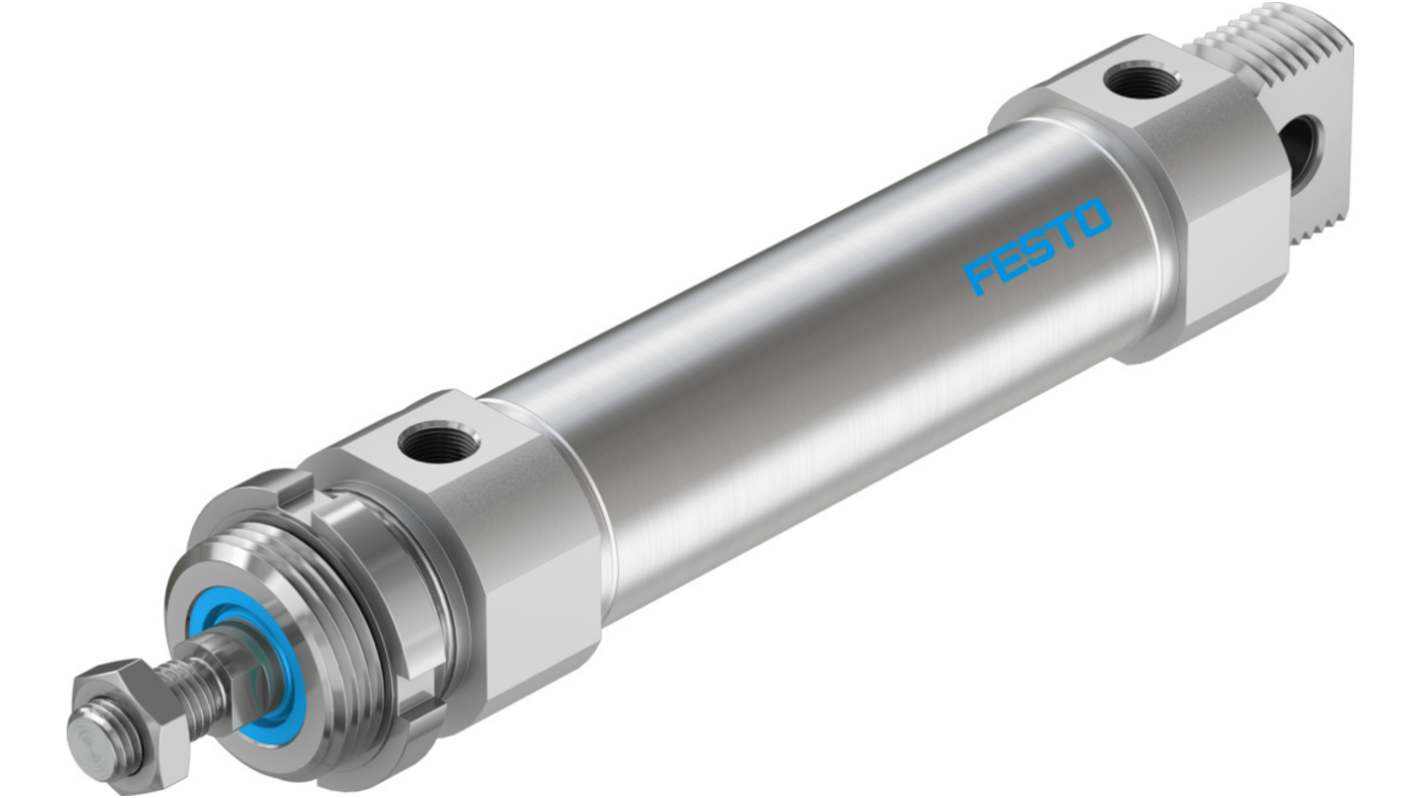

Festo Pneumatic Piston Rod Cylinder - 196034, 40mm Bore, 100mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 202-1844
- Mfr. Part No.:
- DSNU-40-100-PPV-A
- Brand:
- Festo
Subtotal (1 unit)*
£100.57
(exc. VAT)
£120.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £100.57 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£98.61
(exc. VAT)
£118.33
(inc. VAT)
- RS Stock No.:
- 202-1844
- Mfr. Part No.:
- DSNU-40-100-PPV-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 196034 | |
Stroke | 100mm | |
Bore | 40mm | |
Action | Double | |
Weight | 901g | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 196034 | ||
Stroke 100mm | ||
Bore 40mm | ||
Action Double | ||
Weight 901g | ||
- COO (Country of Origin):
- DE
Festo DSNU Series Pneumatic Piston Rod Cylinder, 40mm Bore, 100mm Stroke - DSNU-40-100-PPV-A, Numeric Part Number: 196034
This pneumatic piston rod cylinder is expertly designed for high-performance applications in industrial automation. With a robust 40mm bore and a comprehensive 100mm stroke, it ensures efficient operation across various mechanical setups. The cylinder features a double-acting mechanism and can operate under maximum pressures of 10 bar, making it suitable for diverse environments.
Features & Benefits
• Utilises pneumatic cushioning, adjustable for enhanced control
• Double-acting mechanism improves efficiency in operation
• G 1/4 port connection allows easy integration into systems
• Capable of operating between -20°C and +80°C for versatility
• Constructed from high-alloy materials for increased durability
• Designed in accordance with the VDMA24364 standard
• Double-acting mechanism improves efficiency in operation
• G 1/4 port connection allows easy integration into systems
• Capable of operating between -20°C and +80°C for versatility
• Constructed from high-alloy materials for increased durability
• Designed in accordance with the VDMA24364 standard
Applications
• Utilised in automated assembly lines for precise actuation
• Ideal for pick-and-place systems requiring high speed
• Used in packaging machinery to enhance production flow
• Implemented in robotics for effective movement control
• Ideal for pick-and-place systems requiring high speed
• Used in packaging machinery to enhance production flow
• Implemented in robotics for effective movement control
What are the advantages of choosing a double-acting mechanism for this cylinder?
The double-acting mechanism allows for both forward and backward movement, increasing the efficiency of operations and reducing cycle times in automated processes.
How does the pneumatic cushioning feature benefit operation?
Pneumatic cushioning softens the impact at the end of the stroke, which minimises wear on the cylinder and connected machinery, extending the lifespan of both components.
Can this product be utilised in environments with varying temperatures?
Yes, it operates effectively in ambient temperatures ranging from -20°C to +80°C, making it suitable for use in various environments, from cold storage to heated manufacturing spaces.
