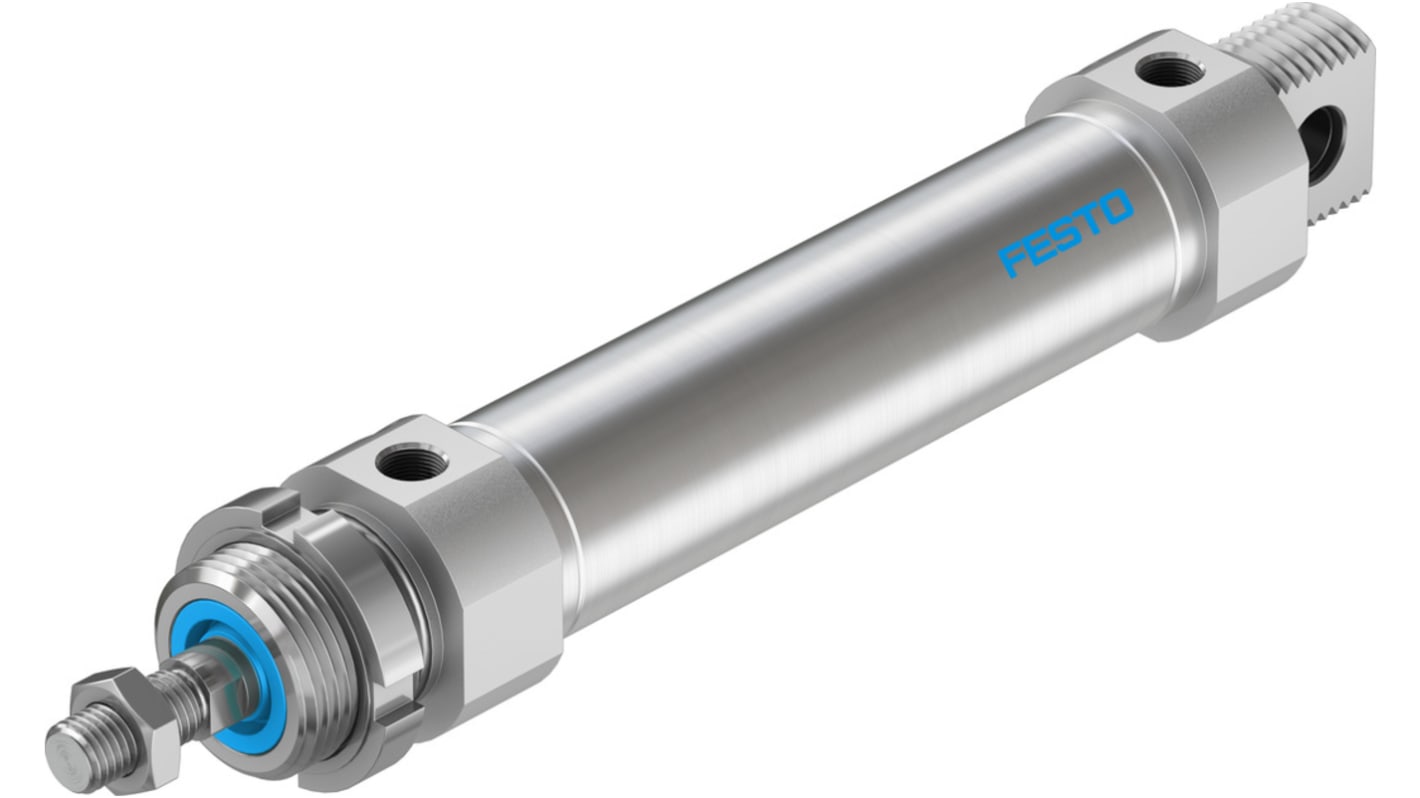

Festo Pneumatic Piston Rod Cylinder - 196024, 32mm Bore, 100mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 202-1759
- Mfr. Part No.:
- DSNU-32-100-PPV-A
- Brand:
- Festo
Subtotal (1 unit)*
£82.73
(exc. VAT)
£99.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 03 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £82.73 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£80.54
(exc. VAT)
£96.65
(inc. VAT)
- RS Stock No.:
- 202-1759
- Mfr. Part No.:
- DSNU-32-100-PPV-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 196024 | |
Bore | 32mm | |
Stroke | 100mm | |
Action | Double | |
Pneumatic Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Pneumatic Adjustable | |
Maximum Operating Pressure | 10 bar | |
VDMA Standard | VDMA24364-B1/B2-L | |
Maximum Operating Temperature | +80°C | |
Weight | 524g | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 196024 | ||
Bore 32mm | ||
Stroke 100mm | ||
Action Double | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Adjustable | ||
Maximum Operating Pressure 10 bar | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Maximum Operating Temperature +80°C | ||
Weight 524g | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, 1 to 10 Bar Operating Pressure Range, Adjustable Cushioning - DSNU-32-100-PPV-A
When you want a pneumatic piston rod cylinder that's compact without being short on features, go for this model from Festo. The double-action design means it uses compressed air to both extend and retract, so you get precision positioning in pushing and pulling tasks. The unit is mountable in almost any position using a foot bracket (203-0819) or clevis bracket (202-2538), boosting the versatility of your setup. Adjustable cushioning dampens down the kinetic energy from impacts, reducing wear and tear to support a long service life.
Features & Benefits
• Functions reliably in temperatures from -20°C to +80°C to meet the demands of industrial environments
• High-alloy steel barrel and cylinder are corrosion-resistant, ideal for use in humid settings
• Thread on rod end lets you screw on clevis (121-5547) and coupling (121-4322)accessories for flexible operation
• Performs between 1 and 10 bar, so it works with low-pressure systems
• High-alloy steel barrel and cylinder are corrosion-resistant, ideal for use in humid settings
• Thread on rod end lets you screw on clevis (121-5547) and coupling (121-4322)accessories for flexible operation
• Performs between 1 and 10 bar, so it works with low-pressure systems
Applications
• Packaging plants
• Engine control
• Materials handling
• Automotive industry
• Engine control
• Materials handling
• Automotive industry
Can I add a proximity sensor to this cylinder?
Yes. Fitting a collar (175-4593) gives you a handy holder for your SMT sensor (such as 121-5836).
