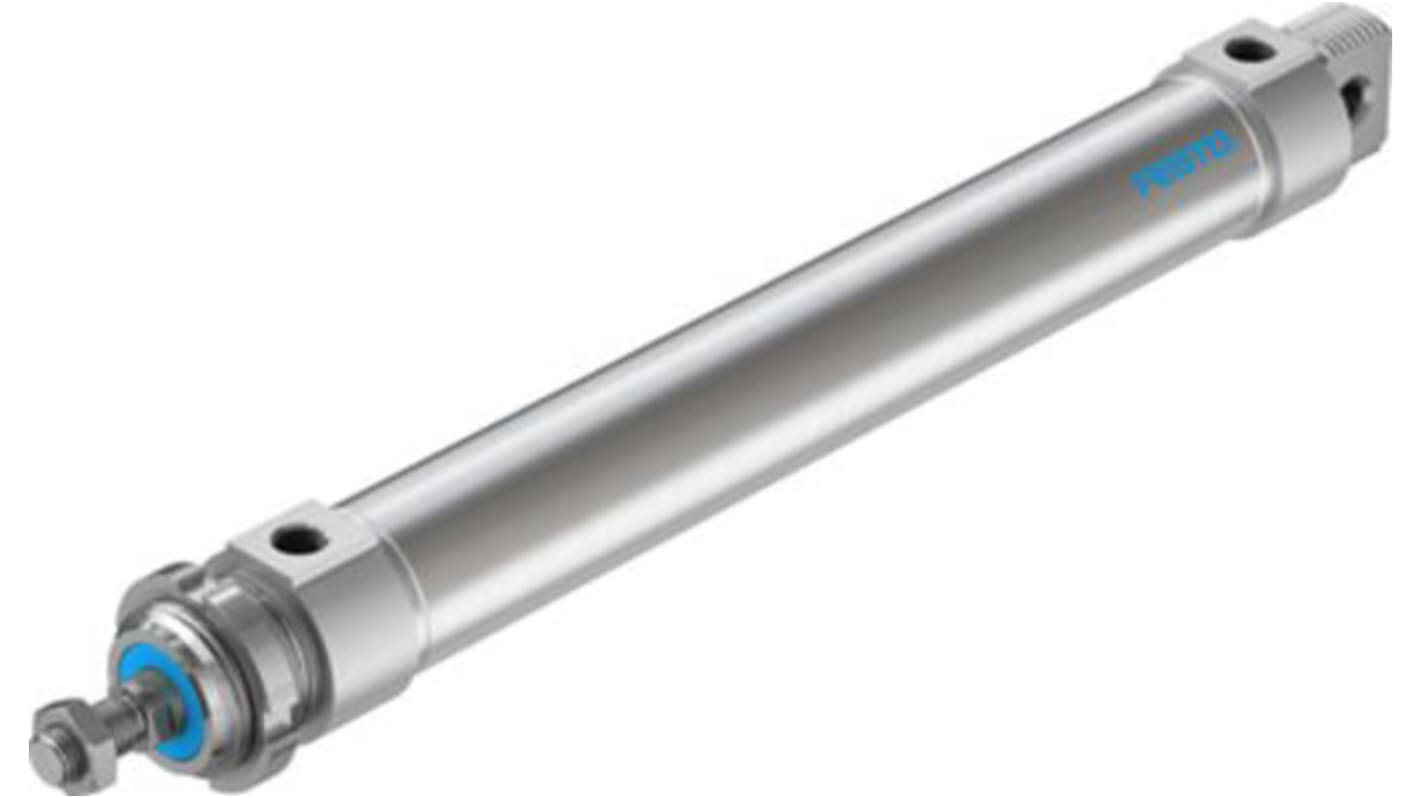

Festo Pneumatic Roundline Cylinder - 196038, 40mm Bore, 250mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 203-7893
- Mfr. Part No.:
- DSNU-40-250-PPV-A
- Brand:
- Festo
Subtotal (1 unit)*
£108.58
(exc. VAT)
£130.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £108.58 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£106.76
(exc. VAT)
£128.11
(inc. VAT)
- RS Stock No.:
- 203-7893
- Mfr. Part No.:
- DSNU-40-250-PPV-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 196038 | |
Bore | 40mm | |
Stroke | 250mm | |
Action | Double | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 196038 | ||
Bore 40mm | ||
Stroke 250mm | ||
Action Double | ||
- COO (Country of Origin):
- DE
The Festo round cylinder DSNU-40-250-PPV-A For position sensing with adjustable end-position cushioning. Various mounting options with or without additional mounting components. It meets the highest requirements for running characteristics, service life and load carrying ability. The Cylinder barrel made from stainless steel and bearing and end caps made from wrought aluminium alloy.
Stroke=250 mm
Piston diameter=40 mm
Piston rod thread=M12x1 25
Cushioning=PPV: Pneumatic cushioning adjustable at both ends
Assembly position=Any
Piston diameter=40 mm
Piston rod thread=M12x1 25
Cushioning=PPV: Pneumatic cushioning adjustable at both ends
Assembly position=Any
