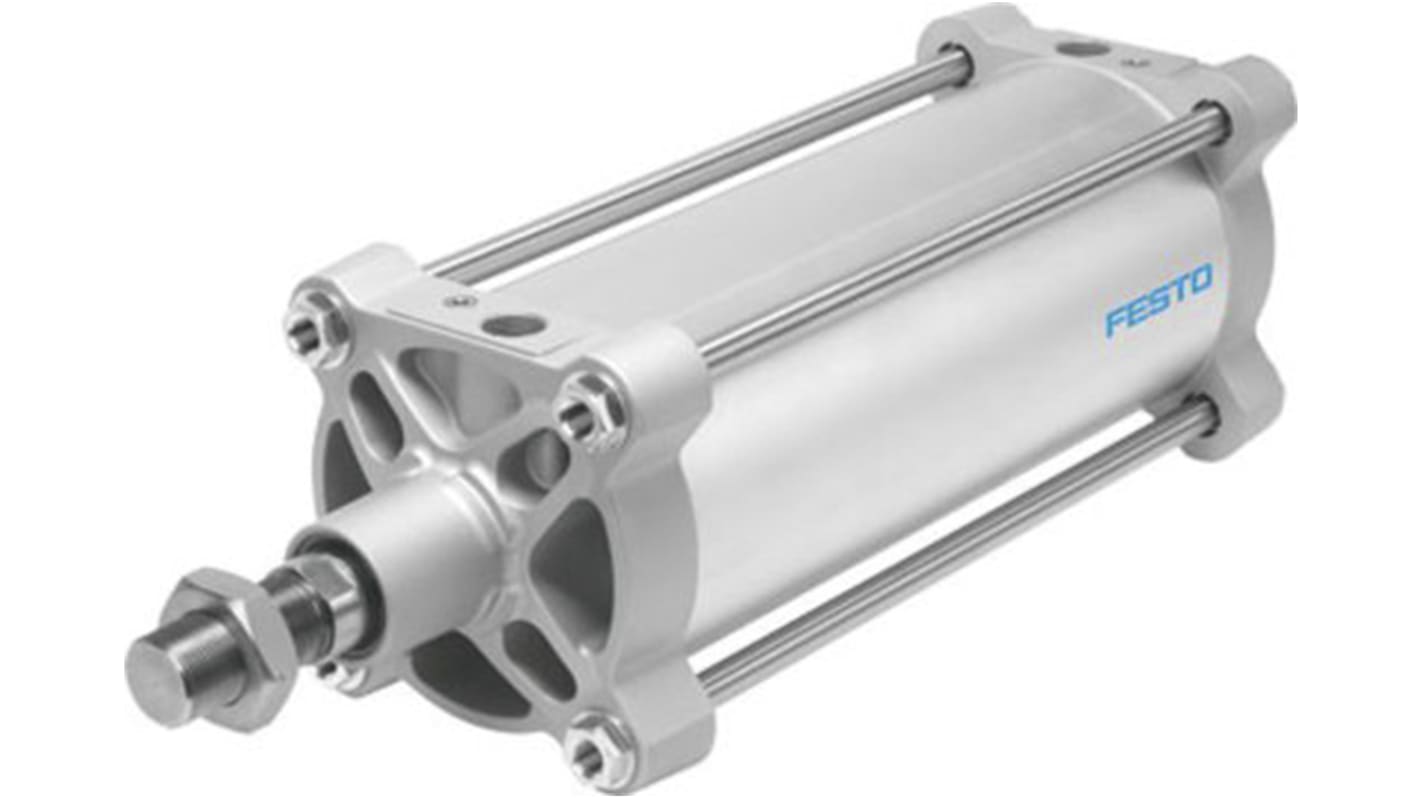

Festo Pneumatic Cylinder - 2390142, 200mm Bore, 80mm Stroke, DSBG-200-80-PPVA-N3 Series, Double Acting
- RS Stock No.:
- 203-6652
- Mfr. Part No.:
- DSBG-200-80-PPVA-N3
- Brand:
- Festo
Available to back order for despatch 02/08/2024, delivery within 2 working days
Price Each
£1,019.73
(exc. VAT)
£1,223.68
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £1,019.73 |
Not available for guaranteed pre 9am/10am delivery
- RS Stock No.:
- 203-6652
- Mfr. Part No.:
- DSBG-200-80-PPVA-N3
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details
The Festo ISO cylinder has 80 mm stroke and 200 mm piston diameter. It is standards-based cylinder, double-acting based on ISO 15552. The bellows protects the piston rod, the seal and the bearing from the effects of a wide range of media, which has a positive impact on the service life of these components.
Stroke 80 mm
Piston diameter 200 mm
Piston rod thread M36x2
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
Piston diameter 200 mm
Piston rod thread M36x2
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
Specifications
Attribute | Value |
|---|---|
| Stroke | 80mm |
| Bore | 200mm |
| Action | Double |
| Manufacturer Series | DSBG-200-80-PPVA-N3 |
| Model Number p | 2390142 |
