Festo Pneumatic Cylinder - 1646712, 50mm Bore, 80mm Stroke, DSBG-50-80-PPVA-N3 Series, Double Acting
- RS Stock No.:
- 203-6557
- Mfr. Part No.:
- DSBG-50-80-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£199.87
(exc. VAT)
£239.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £199.87 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£168.87
(exc. VAT)
£202.64
(inc. VAT)
- RS Stock No.:
- 203-6557
- Mfr. Part No.:
- DSBG-50-80-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBG-50-80-PPVA-N3 | |
Model Number p | 1646712 | |
Stroke | 80mm | |
Action | Double | |
Bore | 50mm | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBG-50-80-PPVA-N3 | ||
Model Number p 1646712 | ||
Stroke 80mm | ||
Action Double | ||
Bore 50mm | ||
- COO (Country of Origin):
- CN

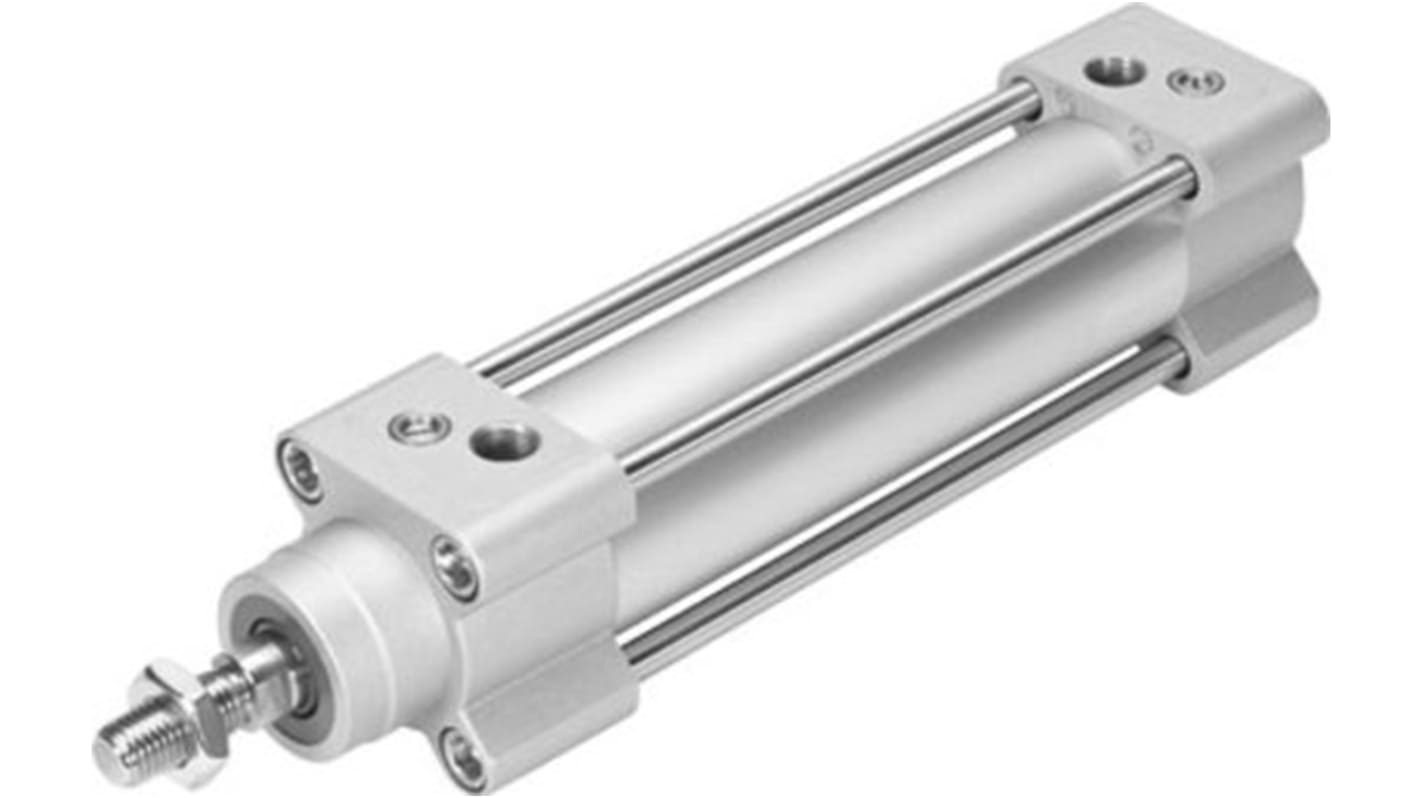

The Festo ISO cylinder has 80 mm stroke and 50 mm piston diameter. It is standards-based cylinder, double-acting based on ISO 15552. The bellows protects the piston rod, the seal and the bearing from the effects of a wide range of media, which has a positive impact on the service life of these components.
Stroke 80 mm
Piston diameter 50 mm
Piston rod thread M16x1,5
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
Piston diameter 50 mm
Piston rod thread M16x1,5
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
