Festo Pneumatic Cylinder - 2029465, 160mm Bore, 80mm Stroke, DSBG-160-80-PPVA-N3 Series, Double Acting

View this category

Subtotal (1 unit)*

£773.16

(exc. VAT)

£927.79

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£773.16

*price indicative

RS Stock No.:
203-6502
Mfr. Part No.:
DSBG-160-80-PPVA-N3
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Manufacturer Series

DSBG-160-80-PPVA-N3

Model Number p

2029465

Action

Double

Bore

160mm

Stroke

80mm

COO (Country of Origin):
HU

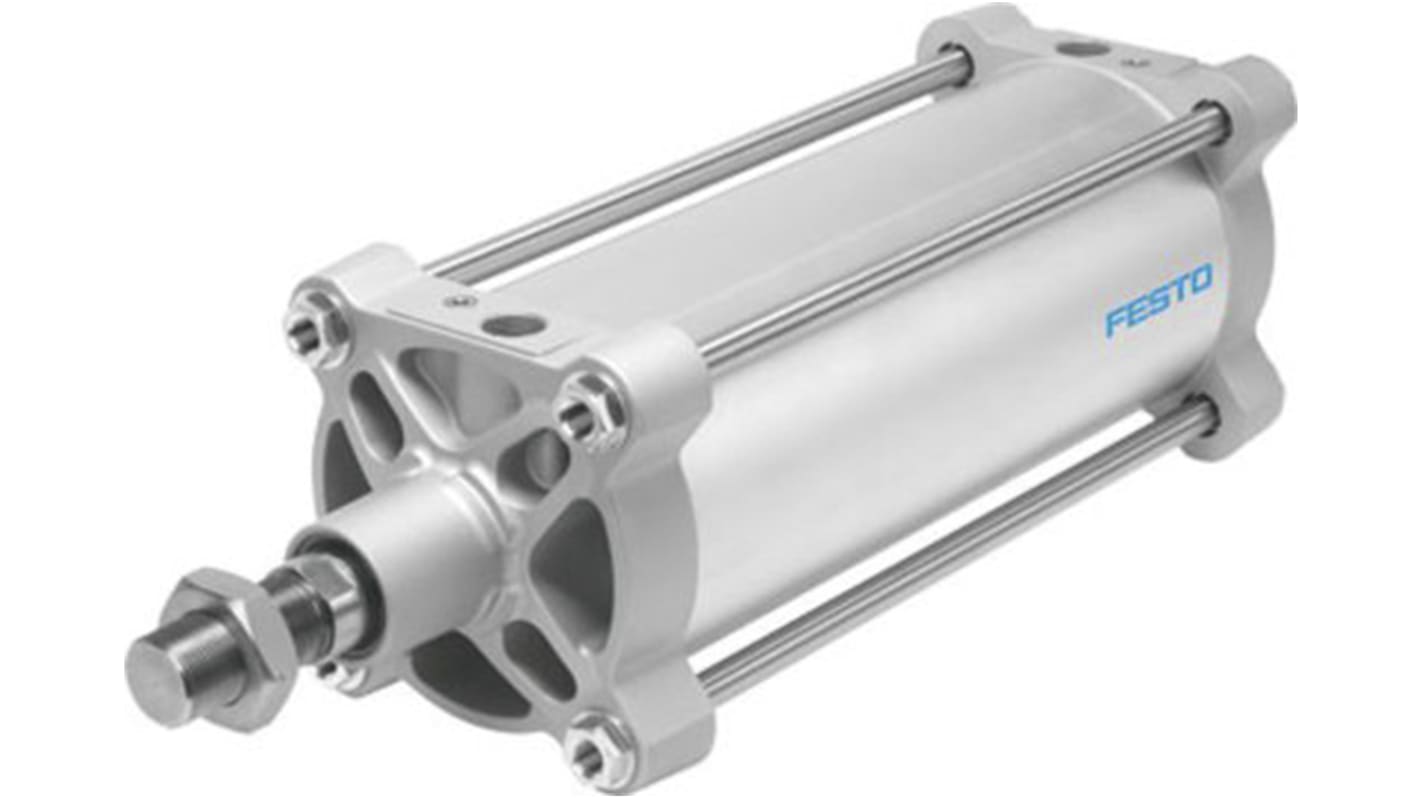

The Festo ISO cylinder has 80 mm stroke and 160 mm piston diameter. It is standards-based cylinder, double-acting based on ISO 15552. The bellows protects the piston rod, the seal and the bearing from the effects of a wide range of media, which has a positive impact on the service life of these components.

Stroke 80 mm
Piston diameter 160 mm
Piston rod thread M36x2
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
