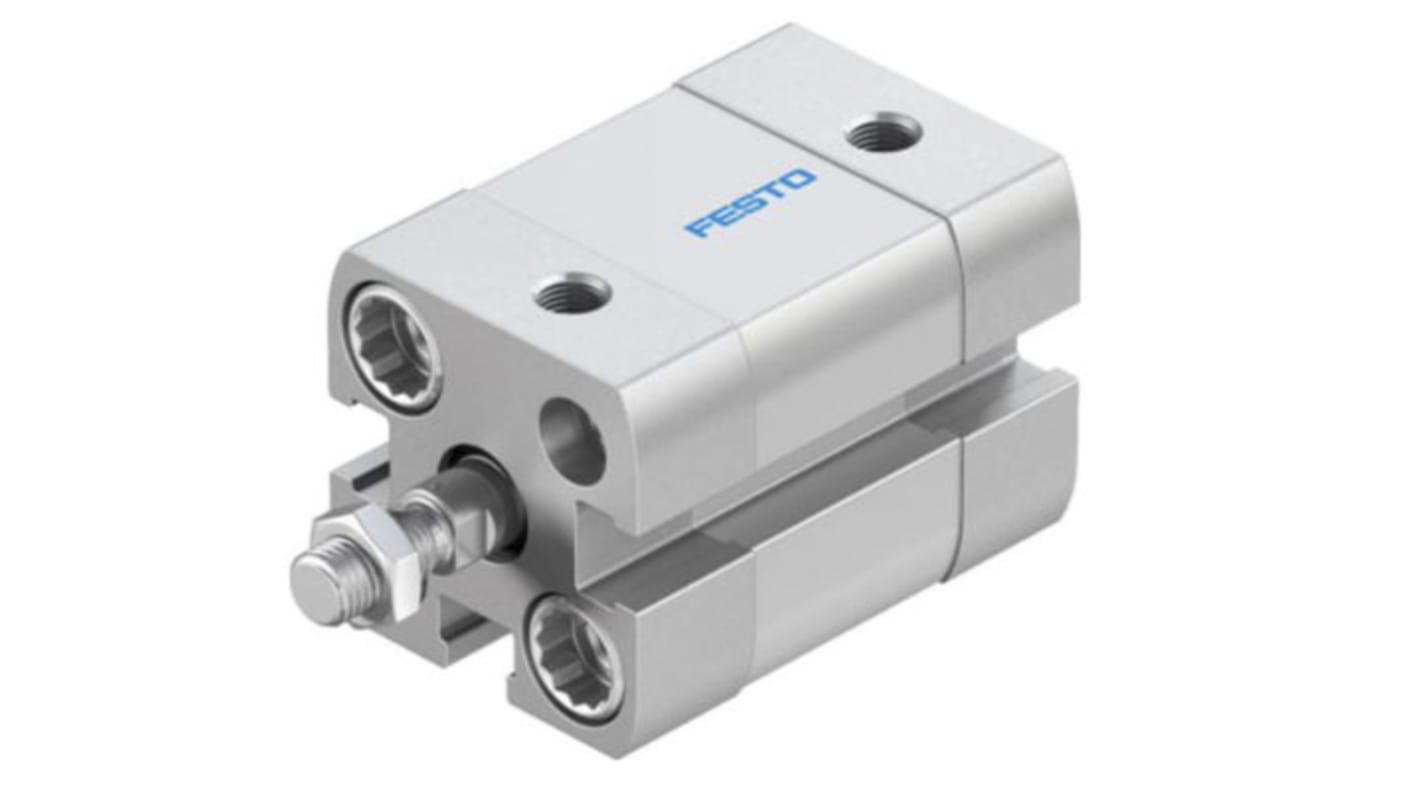

Festo Pneumatic Cylinder - 536207, 12mm Bore, 20mm Stroke, ADN Series, Double Acting
- RS Stock No.:
- 136-6759
- Mfr. Part No.:
- ADN-12-20-A-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£50.12
(exc. VAT)
£60.14
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- Plus 7 left, shipping from 02 October 2025
- Plus 7 left, shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £50.12 |
*price indicative
- RS Stock No.:
- 136-6759
- Mfr. Part No.:
- ADN-12-20-A-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADN | |
Model Number p | 536207 | |
Action | Double | |
Bore | 12mm | |
Stroke | 20mm | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Dimensions | 27.5 x 27.5 x 59.2mm | |
Height | 27.5mm | |
Length | 59.2mm | |
Width | 27.5mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 21287 | |
Test Weight | 77 g (At 0 mm Stroke) | |
VDMA Standard | VDMA 24364-B1/B2-L | |
Stroke Interval Weight | 12 g (At 10 mm Stroke) | |
Weight | 77g | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADN | ||
Model Number p 536207 | ||
Action Double | ||
Bore 12mm | ||
Stroke 20mm | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Dimensions 27.5 x 27.5 x 59.2mm | ||
Height 27.5mm | ||
Length 59.2mm | ||
Width 27.5mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 21287 | ||
Test Weight 77 g (At 0 mm Stroke) | ||
VDMA Standard VDMA 24364-B1/B2-L | ||
Stroke Interval Weight 12 g (At 10 mm Stroke) | ||
Weight 77g | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, 1 to 10 Bar Operating Pressure Range, M5 Piston Rod Thread - ADN-12-20-A-P-A
Looking for a reliable way to drive linear motion in your system? Grab this pneumatic cylinder from Festo. It ejects, clamps and positions objects in a straight line with a compact 20mm stroke. By taking in compressed air at both ends for thrust and retraction, the unit delivers accuracy and efficiency. You'll find slots on three sides, making it a cinch to flush-mount a proximity sensor and enable contactless item detection. The aluminium alloy barrel shrugs off corrosion and performs reliably in demanding temperatures between -20°C and +80°C.
Features & Benefits
• Small size of 59.2 (L) x 27.5 (W) x 27.5mm (H) takes up minimal installation space
• Low-friction design to minimise wear and heat build-up
• TPE-U(PUR) seals keep the unit airtight
• Flexible cushioning absorbs impacts to stretch the service life of the device
• Low-friction design to minimise wear and heat build-up
• TPE-U(PUR) seals keep the unit airtight
• Flexible cushioning absorbs impacts to stretch the service life of the device
Applications
• Automotive manufacturing
• Dental equipment
• Medical imaging machinery
• Automated factory processes
• Dental equipment
• Medical imaging machinery
• Automated factory processes
What type of port connection does this pneumatic cylinder have?
The unit has an M5 port connection for easy compatibility with standard fittings.
In what position should I mount this pneumatic cylinder?
You can mount this flexible component horizontally or vertically, depending on what's best for your system.
