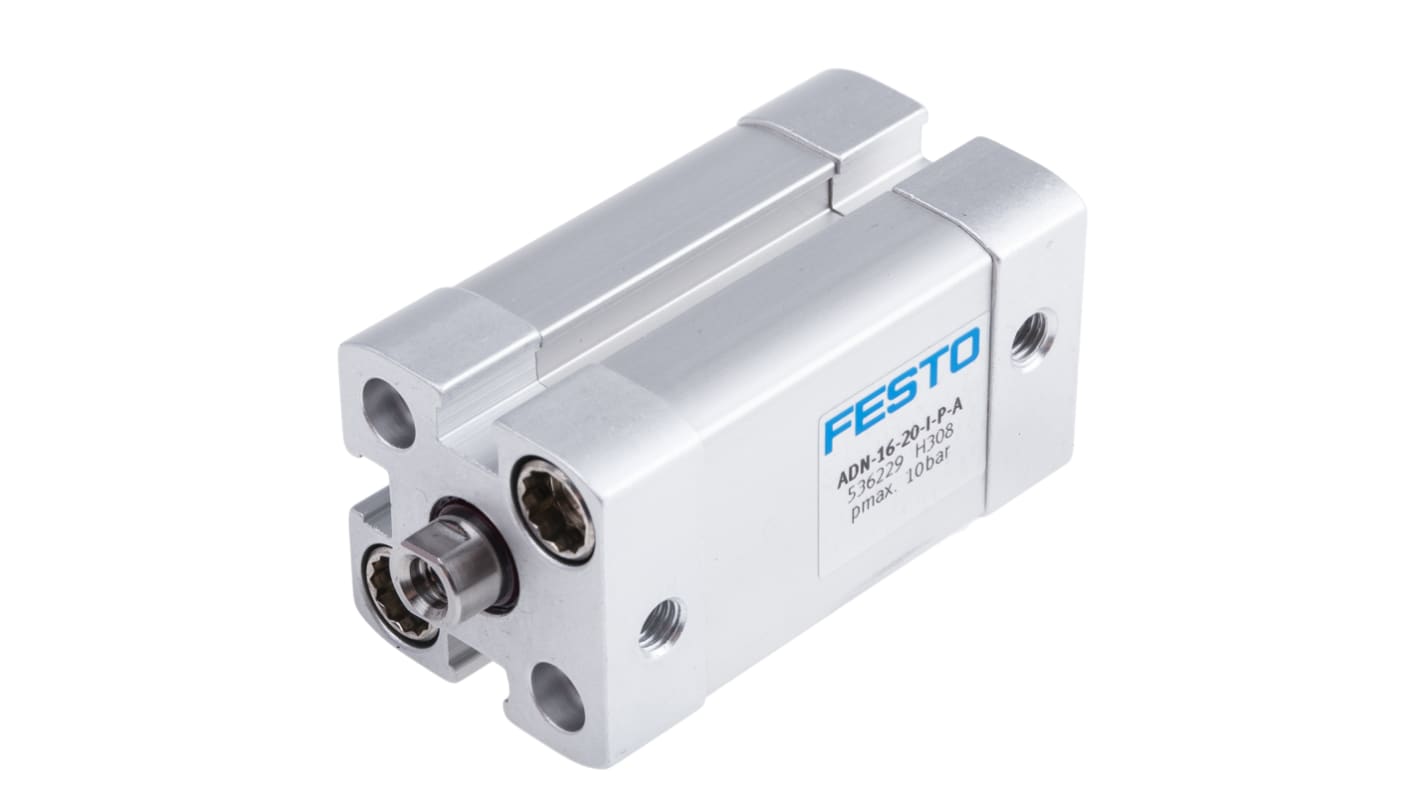

Festo Pneumatic Cylinder - 536229, 16mm Bore, 20mm Stroke, ADN Series, Double Acting
- RS Stock No.:
- 121-5719
- Mfr. Part No.:
- ADN-16-20-I-P-A
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£52.15
(exc. VAT)
£62.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £52.15 |
5 + | £50.06 |
*price indicative
- RS Stock No.:
- 121-5719
- Mfr. Part No.:
- ADN-16-20-I-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADN | |
Model Number p | 536229 | |
Action | Double | |
Bore | 16mm | |
Stroke | 20mm | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Dimensions | 29 x 29 x 59.7mm | |
Height | 29mm | |
Width | 29mm | |
Length | 59.7mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 21287 | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | VDMA 24364-B1/B2-L | |
Maximum Operating Temperature | +80°C | |
Weight | 79g | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADN | ||
Model Number p 536229 | ||
Action Double | ||
Bore 16mm | ||
Stroke 20mm | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Dimensions 29 x 29 x 59.7mm | ||
Height 29mm | ||
Width 29mm | ||
Length 59.7mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 21287 | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard VDMA 24364-B1/B2-L | ||
Maximum Operating Temperature +80°C | ||
Weight 79g | ||
- COO (Country of Origin):
- TR
Festo Pneumatic Cylinder, High Alloy Steel Piston Rod, 90N Return Stroke Force - ADN-16-20-I-P-A
Looking for a space-efficient device to move loads in your industrial system? Choose this pneumatic cylinder from Festo. It's a double-acting option, meaning it uses air to deliver linear motion in both directions. As it has dimensions of 29 (L) x 29 (W) x 59.7mm (D), you won't have any problem fitting this piece of kit into a compact setup. Anodised aluminium housing means it holds its own against impact and corrosion, giving you reliable long-term performance in harsh environments. Your equipment won't feel any unnecessary strain, as the cylinder tips the scales at just 79g.
Features & Benefits
• Flexible cushioning rings at both ends reduce noise and vibration
• M5 threaded port for simple and time-efficient installation
• Safe to use in challenging settings thanks to a temperature range from -20°C to +80°C
• Compatible with proximity sensors for automated operation
• Wide operating pressure range between 1 and 10 bar for versatile use in light-duty and heavy-duty applications
• M5 threaded port for simple and time-efficient installation
• Safe to use in challenging settings thanks to a temperature range from -20°C to +80°C
• Compatible with proximity sensors for automated operation
• Wide operating pressure range between 1 and 10 bar for versatile use in light-duty and heavy-duty applications
Applications
• Pharmaceutical production
• Transportation industry
• Material handling equipment
• Transportation industry
• Material handling equipment
What's the benefit of the TPE seals on this cylinder?
The seals that come with this unit prevent leakages and keep contaminants out to ensure optimal performance and a prolonged lifespan.
FESTO ADN Series
