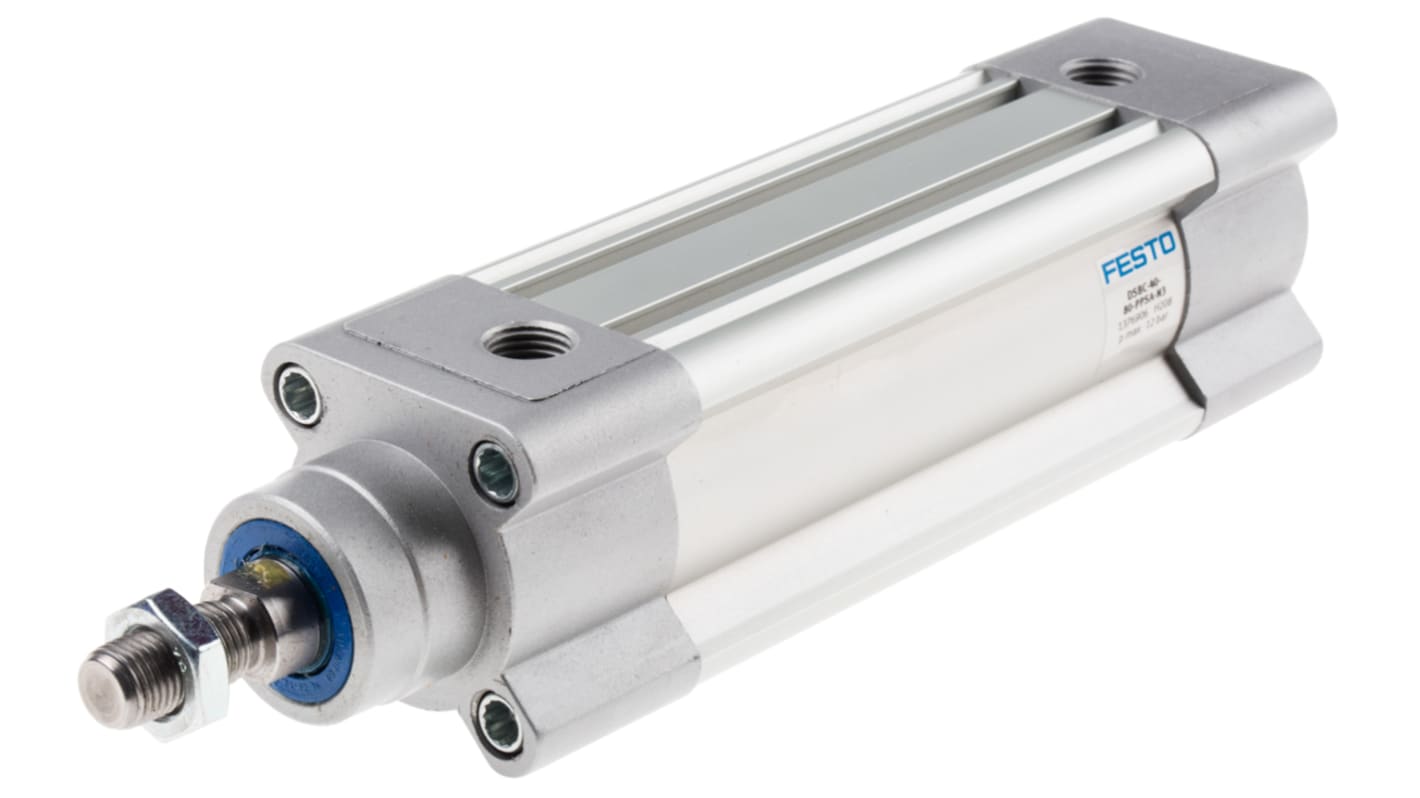

Festo Pneumatic Piston Rod Cylinder - 1376906, 40mm Bore, 80mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5288
- Mfr. Part No.:
- DSBC-40-80-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£144.53
(exc. VAT)
£173.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £144.53 |
*price indicative
- RS Stock No.:
- 121-5288
- Mfr. Part No.:
- DSBC-40-80-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376906 | |
Action | Double | |
Bore | 40mm | |
Stroke | 80mm | |
Pneumatic Connection | G 1/4 | |
Port Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 241.9 x 64 x 64mm | |
Length | 241.9mm | |
Width | 64mm | |
Height | 64mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
VDMA Standard | 24562 | |
Stroke Interval Weight | 37 g @ 10 mm Stroke | |
Test Weight | 740 g @ 0 mm Stroke | |
Maximum Operating Temperature | +80°C | |
Weight | 740g | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376906 | ||
Action Double | ||
Bore 40mm | ||
Stroke 80mm | ||
Pneumatic Connection G 1/4 | ||
Port Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 241.9 x 64 x 64mm | ||
Length 241.9mm | ||
Width 64mm | ||
Height 64mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 37 g @ 10 mm Stroke | ||
Test Weight 740 g @ 0 mm Stroke | ||
Maximum Operating Temperature +80°C | ||
Weight 740g | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
DSBC Series Profile Cylinders - Self Adjusting Pneumatic Cushioning
Festo DSBC series pneumatic cylinders with self adjusting pneumatic cushioning at both ends of the actuator barrel. Featuring a high-alloy steel piston rod provides excellent running performance, low overall weight and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.
Self Adjusting Pneumatic Cushioning
The DSBC PPS type self adjusting cushioning pneumatic cylinders provide ideal cushion performance without the need for manual adjustments. The self adjusting cushioning gives a gentle and dynamic travel into the end position, even with changing loads and speeds. Equipped with a special piston as an extension to the main piston the design controls venting of the air cushion that has built up, as a result, no adjusting screw is necessary. Assembly and setting time is reduced using self adjusting cushioning that results in a high potential saving of working hours.
Features and Benefits
Corresponds to ISO 15552 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Adjustable end cushioning helping to reduce noise and vibration
High-alloy steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications
Double acting operation
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Adjustable end cushioning helping to reduce noise and vibration
High-alloy steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications
Double acting operation
How do I mount the pneumatic actuator?
The DSBC series pneumatic round actuators conform to ISO 15552 standards allowing them to be mounted in any position to suit the required application. The ISO 15552 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.
