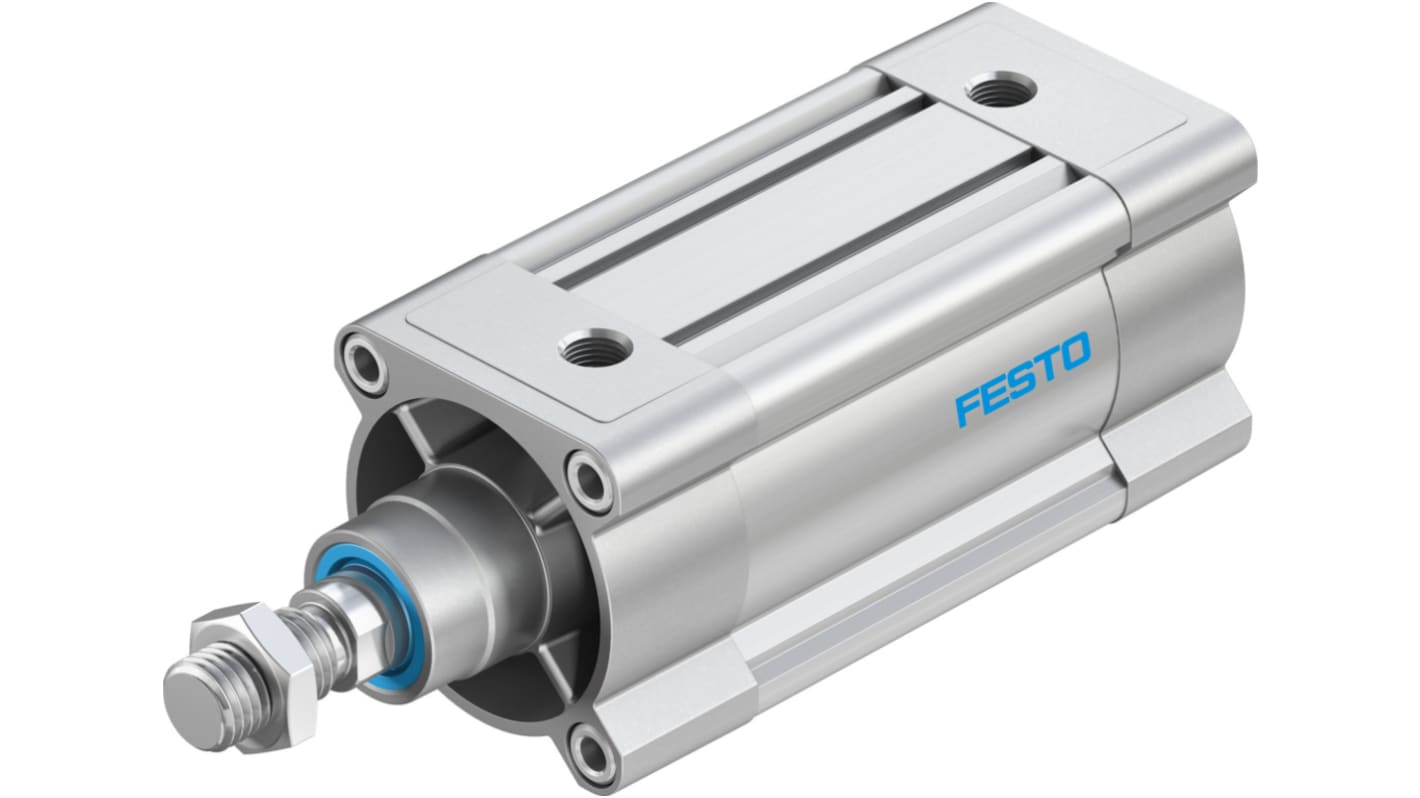

Festo Pneumatic Piston Rod Cylinder - 1383369, 80mm Bore, 80mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5228
- Mfr. Part No.:
- DSBC-80-80-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£262.83
(exc. VAT)
£315.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £262.83 |
*price indicative
- RS Stock No.:
- 121-5228
- Mfr. Part No.:
- DSBC-80-80-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1383369 | |
Stroke | 80mm | |
Bore | 80mm | |
Action | Double | |
Port Connection | G 3/8 | |
Pneumatic Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 297.6 x 93 x 93mm | |
Length | 297.6mm | |
Height | 93mm | |
Width | 93mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
VDMA Standard | 24562 | |
Stroke Interval Weight | 92 g @ 10 mm Stroke | |
Test Weight | 2660 g @ 0 mm Stroke | |
Minimum Operating Temperature | -20°C | |
Weight | 2.7kg | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383369 | ||
Stroke 80mm | ||
Bore 80mm | ||
Action Double | ||
Port Connection G 3/8 | ||
Pneumatic Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 297.6 x 93 x 93mm | ||
Length 297.6mm | ||
Height 93mm | ||
Width 93mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 92 g @ 10 mm Stroke | ||
Test Weight 2660 g @ 0 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
Weight 2.7kg | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 80mm Stroke, 80mm Bore - DSBC-80-80-PPSA-N3, Numeric Part Number: 1383369
This pneumatic piston rod cylinder is designed for robust performance in various industrial applications. Its intelligent cushioning mechanism contributes to extended longevity, ensuring smooth and controlled movement within automation systems.
Features & Benefits
• Double-acting design for versatile motion control
• Self-adjusting pneumatic cushioning minimises impact stress
• ISO 15552 compatibility for seamless integration
• Proximity switch detection for position monitoring
• Self-adjusting pneumatic cushioning minimises impact stress
• ISO 15552 compatibility for seamless integration
• Proximity switch detection for position monitoring
Applications
• Actuating machinery in automated assembly lines
• Packaging and material handling systems
• Environments requiring temperature flexibility
• Packaging and material handling systems
• Environments requiring temperature flexibility
Can it be used in outdoor environments?
Yes, as long as the ambient conditions are within the specified range.
What mounting options are available?
It can be mounted via female thread or with additional accessories.
