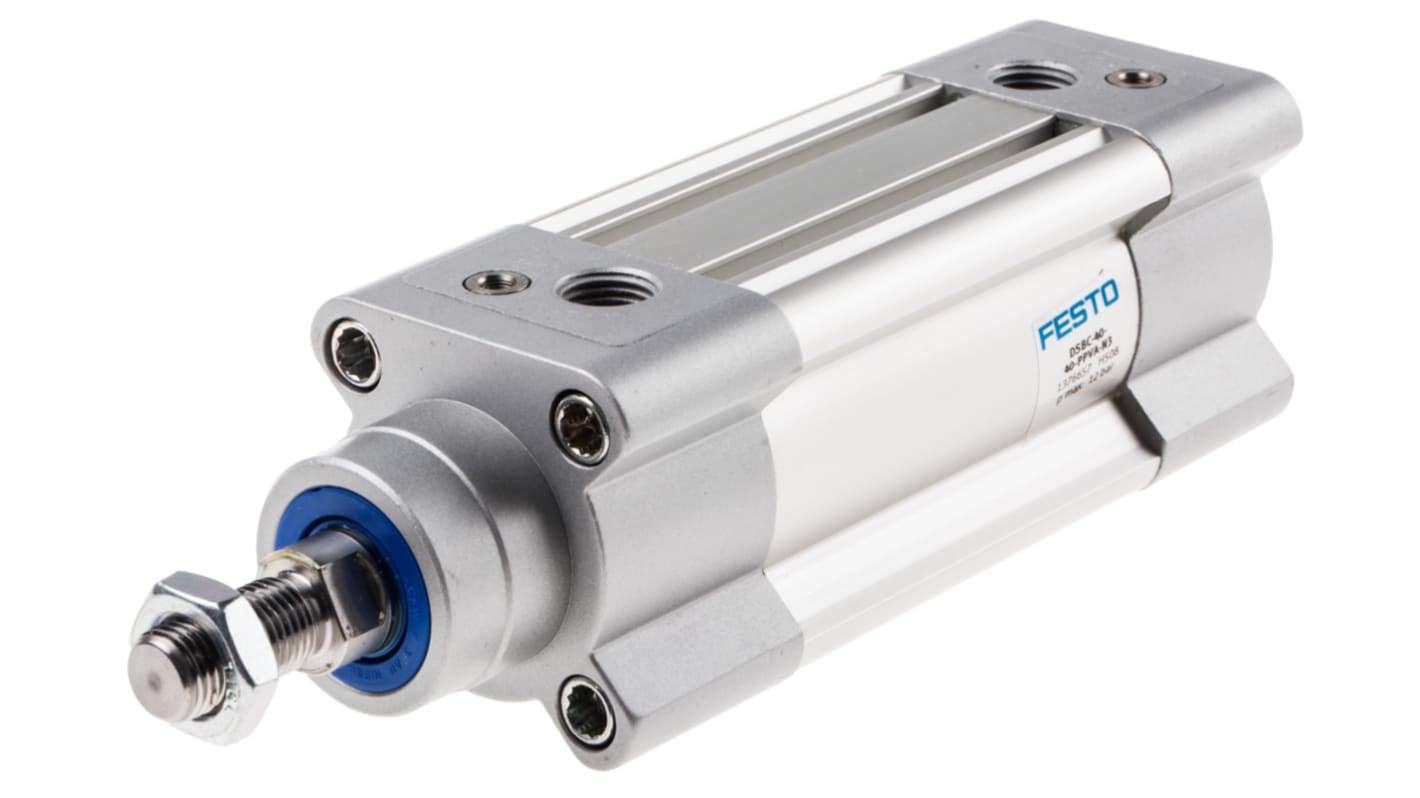

Festo Pneumatic Piston Rod Cylinder - 1376657, 40mm Bore, 40mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5283
- Mfr. Part No.:
- DSBC-40-40-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£144.73
(exc. VAT)
£173.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £144.73 |
*price indicative
- RS Stock No.:
- 121-5283
- Mfr. Part No.:
- DSBC-40-40-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376657 | |
Bore | 40mm | |
Stroke | 40mm | |
Action | Double | |
Port Connection | G 1/4 | |
Pneumatic Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 201.9 x 54 x 54mm | |
Length | 201.9mm | |
Width | 54mm | |
Height | 54mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Maximum Operating Temperature | +80°C | |
Weight | 740g | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | 24562 | |
Stroke Interval Weight | 37 g @ 10 mm Stroke | |
Test Weight | 740 g @ 0 mm Stroke | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376657 | ||
Bore 40mm | ||
Stroke 40mm | ||
Action Double | ||
Port Connection G 1/4 | ||
Pneumatic Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 201.9 x 54 x 54mm | ||
Length 201.9mm | ||
Width 54mm | ||
Height 54mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
Weight 740g | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 37 g @ 10 mm Stroke | ||
Test Weight 740 g @ 0 mm Stroke | ||
Festo Pneumatic Piston Rod Cylinder, Air Cushioning, 0.6 to 12 Bar Operating Pressure - DSBC-40-40-PPVA-N3
Push your automation further with this pneumatic piston rod cylinder from Festo. As it's double-acting, it's capable of controlling precise movement in two directions. At a pressure of 6 bar, it has a theoretical force between 633 and 754N, which means it's capable of moving heavy loads. There's air cushioning at both ends to absorb excess energy and prevent wear. This is adjustable, so if loads change, the cylinder can handle it. A stroke length and bore size of 40mm enables it to operate in small spaces. Slots in the body mean you can flush mount a proximity sensor, increasing functionality without wasting space.
Features & Benefits
• Capable of dry running and lubricated movement for convenience
• Operating at pressures between 0.6 and 12 bar, it's widely compatible with automation applications
• Wrought-aluminium alloy and high-alloy steel construction means it's rugged
• Works in temperatures between -20°C and +80°C to handle the extreme environments of industry
• Operating at pressures between 0.6 and 12 bar, it's widely compatible with automation applications
• Wrought-aluminium alloy and high-alloy steel construction means it's rugged
• Works in temperatures between -20°C and +80°C to handle the extreme environments of industry
Applications
• Assembly lines
• Plant machinery
• Processing equipment
• Robotics systems
• Plant machinery
• Processing equipment
• Robotics systems
Can I add a clevis attachment to this pneumatic cylinder?
Yes. The threaded rod end means it's easy to accessorise your cylinder with a screw-fitting eye (121-5554) or clevis (121-5548).
