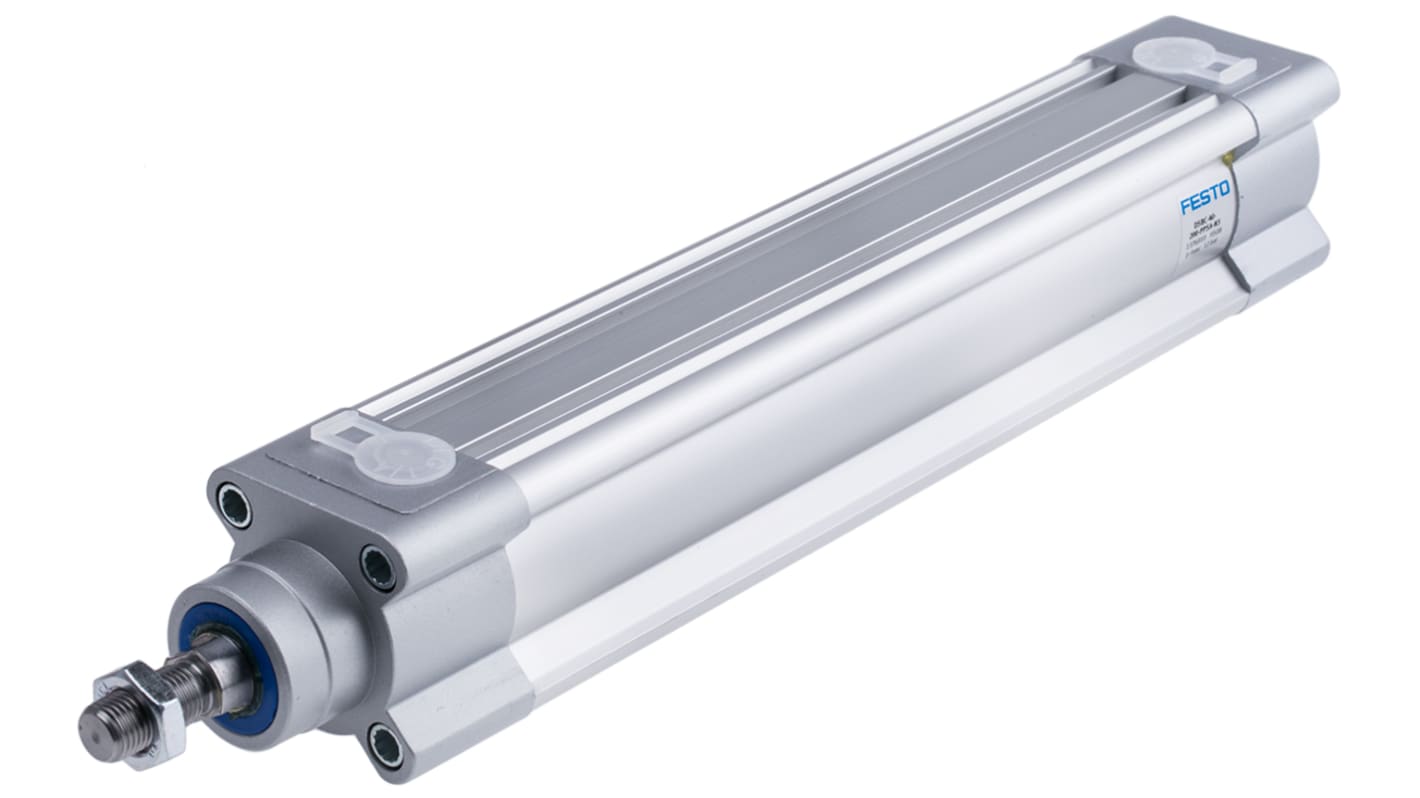

Festo Pneumatic Piston Rod Cylinder - 1376910, 40mm Bore, 200mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5271
- Mfr. Part No.:
- DSBC-40-200-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£156.65
(exc. VAT)
£187.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £156.65 |
*price indicative
- RS Stock No.:
- 121-5271
- Mfr. Part No.:
- DSBC-40-200-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376910 | |
Action | Double | |
Bore | 40mm | |
Stroke | 200mm | |
Port Connection | G 1/4 | |
Pneumatic Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 361.9 x 54 x 54mm | |
Width | 54mm | |
Height | 54mm | |
Length | 361.9mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Maximum Operating Temperature | +80°C | |
Test Weight | 740 g @ 0 mm Stroke | |
Stroke Interval Weight | 37 g @ 10 mm Stroke | |
VDMA Standard | 24562 | |
Minimum Operating Temperature | -20°C | |
Weight | 740g | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376910 | ||
Action Double | ||
Bore 40mm | ||
Stroke 200mm | ||
Port Connection G 1/4 | ||
Pneumatic Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 361.9 x 54 x 54mm | ||
Width 54mm | ||
Height 54mm | ||
Length 361.9mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
Test Weight 740 g @ 0 mm Stroke | ||
Stroke Interval Weight 37 g @ 10 mm Stroke | ||
VDMA Standard 24562 | ||
Minimum Operating Temperature -20°C | ||
Weight 740g | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, 12 Bar Maximum Operating Pressure, G1/4 Port Size - DSBC-40-200-PPSA-N3
Make sure your machinery hits the mark every time with this pneumatic piston rod cylinder from Festo. As it's double-acting, the rod controls motion as it extends and retracts, meaning you can pull as well as push objects. It has a long stroke length of 200mm, making it handy for conveying, tool-head and processing applications. Both ends are cushioned to absorb energy, give you smooth movement and minimise wear. Built with a magnetic rod and mounting slots in the barrel, it pairs with an SMT proximity sensor (121-5836) to give you spot-on control of your automated process.
Features & Benefits
• Operates reliably between 0.6 and 12 bar, so it's a versatile option
• Threaded rod end for easy accessory attachment
• Cushioning is self-adjusting to save you set-up time
• Threaded rod end for easy accessory attachment
• Cushioning is self-adjusting to save you set-up time
Applications
• Packaging equipment
• Food and drinks processing
• Electronics assembly
• Materials manufacture
• Food and drinks processing
• Electronics assembly
• Materials manufacture
How hardwearing is this pneumatic piston rod cylinder?
This cylinder has a coated aluminium cover, high-alloy steel rod and TPE-U seals, so you can be sure it's strong and durable. This rugged design allows it to operate in temperatures between -20°C and +80°C.
