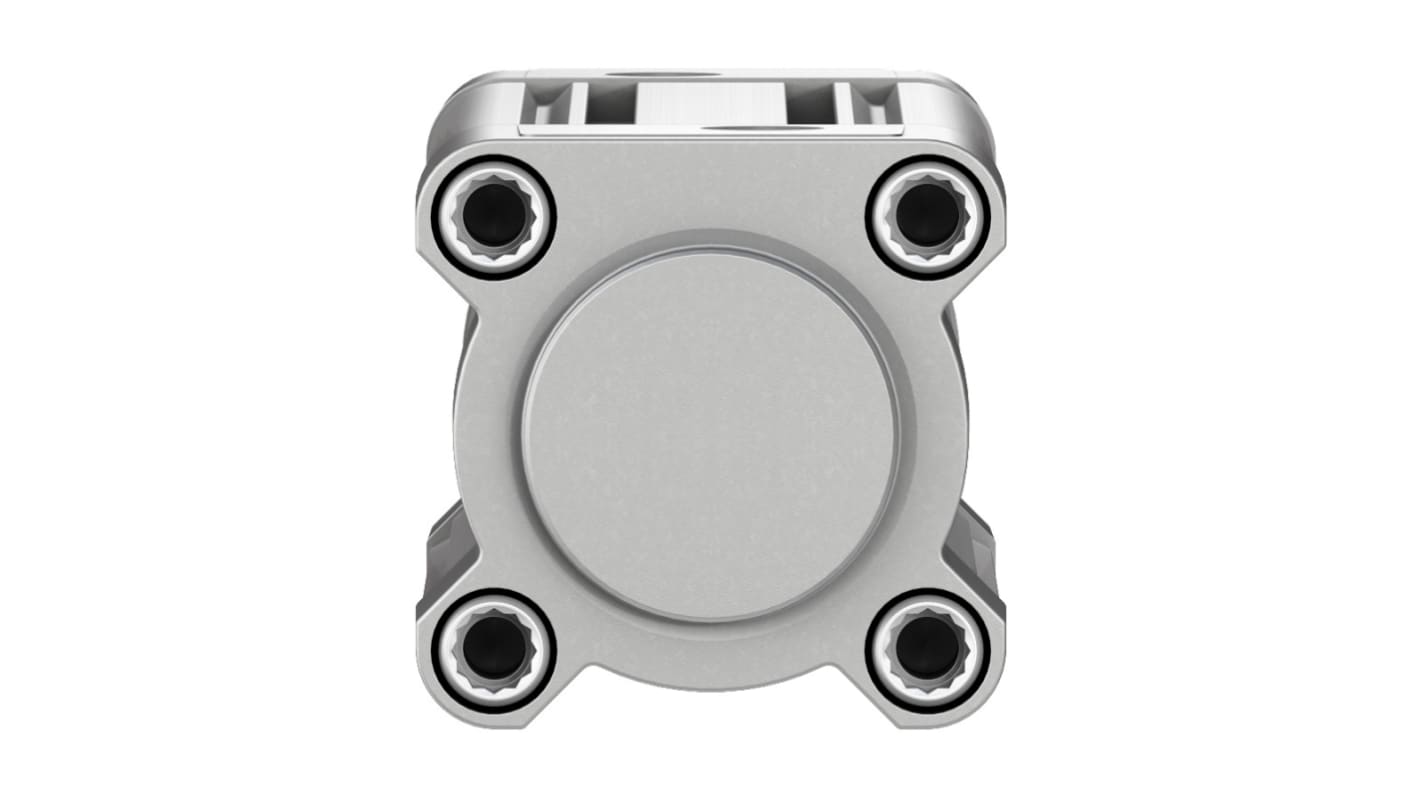

Festo Pneumatic Piston Rod Cylinder - 1376310, 50mm Bore, 200mm Stroke, DSBC Series, Double Acting

View this category

Subtotal (1 unit)*

£179.47

(exc. VAT)

£215.36

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£179.47

*price indicative

RS Stock No.:
121-4769
Mfr. Part No.:
DSBC-50-200-PPSA-N3
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Manufacturer Series

DSBC

Model Number p

1376310

Action

Double

Stroke

200mm

Bore

50mm

Port Connection

G 1/4

Pneumatic Connection

G 1/4

Piston Rod Thread Gender

Male

Cushioning Type

Air

Dimensions

377.8 x 64 x 64mm

Height

64mm

Width

64mm

Length

377.8mm

Maximum Operating Pressure

12 bar

ISO Standard

15552

VDMA Standard

24562

Test Weight

1190 g @ 0 mm Stroke

Stroke Interval Weight

56 g @ 10 mm Stroke

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-20°C

Weight

1.2kg

COO (Country of Origin):
DE

Festo DSBC Series Pneumatic Piston Rod Cylinder, 200mm Stroke, 50mm Bore - DSBC-50-200-PPSA-N3, Numeric Part Number: 1376310


This pneumatic piston rod cylinder is designed for dependable operation in various automation applications, providing double-action functionality and a robust build. It allows for precise control and effective component movement, with a stroke length of 200mm for efficiency and adaptability to multiple mounting positions.

Features & Benefits


• Complies with ISO 15552 standards for compatibility
• Self-adjusting pneumatic cushioning enhances operation
• Male threaded piston rod facilitates easy integration
• Suitable for use with both lubricated and non-lubricated mediums
• Moderate corrosion resistance ensures durability in diverse environments

Applications


• Utilised in automated assembly lines for efficient movement
• Employed in packaging machinery for precise actuation
• Implemented in robotics for effective piston control
• Used in material handling systems to improve productivity

How does the product perform under varying temperatures?


It operates within an ambient temperature range of -20 to +80°C, accommodating multiple environments.

What type of mounting does it support?


It allows for versatile mounting via female threads or with accessories, providing flexibility in installation.

Is this suitable for high-pressure applications?


Yes, it is rated for a maximum operating pressure of 12 bar, making it appropriate for high-pressure pneumatic systems.
