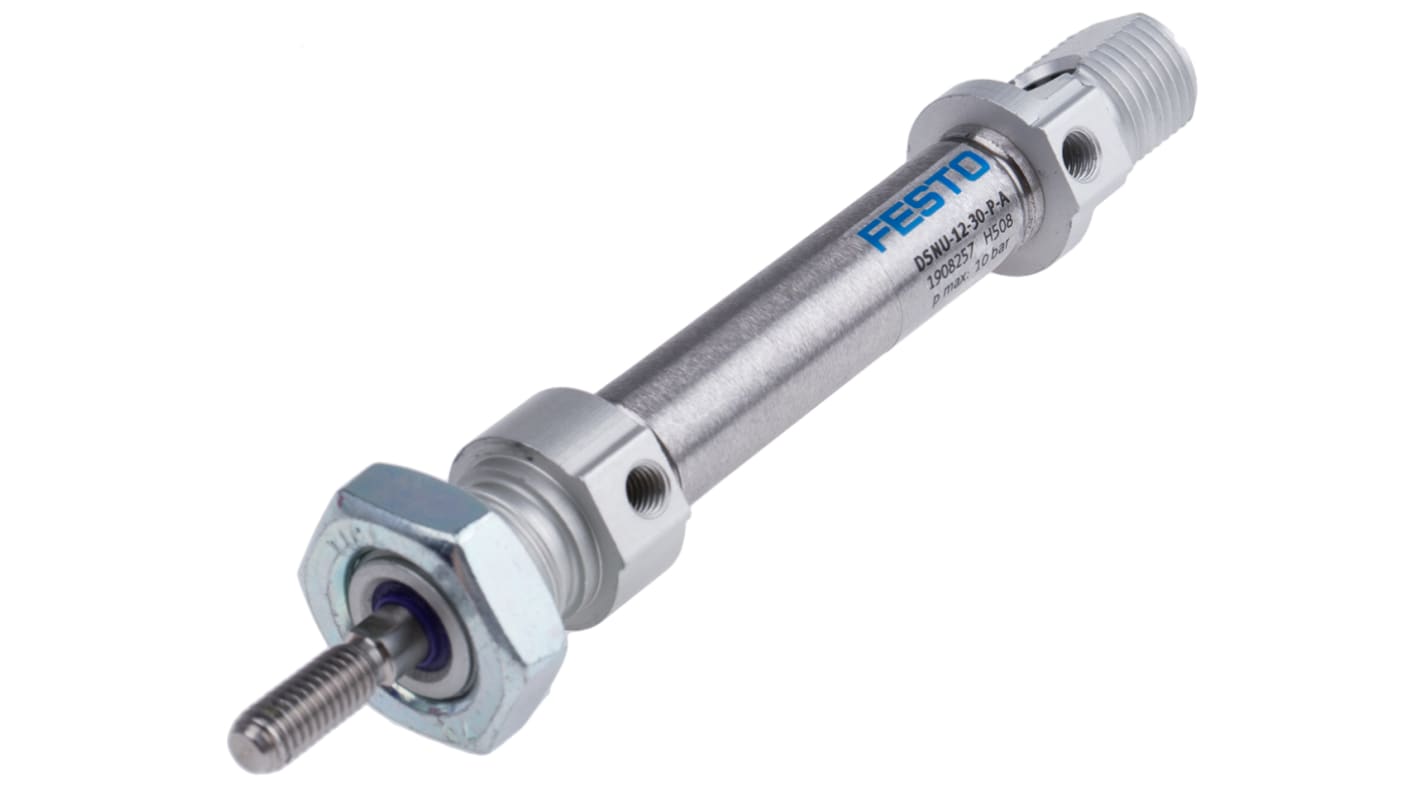

Festo Pneumatic Cylinder - 1908257, 12mm Bore, 30mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4702
- Mfr. Part No.:
- DSNU-12-30-P-A
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£44.39
(exc. VAT)
£53.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £44.39 |
5 - 9 | £42.60 |
10 + | £40.82 |
*price indicative
- RS Stock No.:
- 121-4702
- Mfr. Part No.:
- DSNU-12-30-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 1908257 | |
Bore | 12mm | |
Action | Double | |
Stroke | 30mm | |
Port Connection | M5 | |
Pneumatic Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastomer | |
Dimensions | 20 x 135mm | |
Diameter | 20mm | |
Length | 135mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
Minimum Operating Temperature | -20°C | |
Weight | 87g | |
Maximum Operating Temperature | +80°C | |
VDMA Standard | VDMA 24364-B1/B2-L | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 1908257 | ||
Bore 12mm | ||
Action Double | ||
Stroke 30mm | ||
Port Connection M5 | ||
Pneumatic Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastomer | ||
Dimensions 20 x 135mm | ||
Diameter 20mm | ||
Length 135mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Minimum Operating Temperature -20°C | ||
Weight 87g | ||
Maximum Operating Temperature +80°C | ||
VDMA Standard VDMA 24364-B1/B2-L | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, 1.5 to 10 Bar Operating Pressure Range, Wrought Aluminium Alloy Construction - DSNU-12-30-P-A
Need some muscle to move loads in your industrial equipment? Go for this pneumatic cylinder from Festo. It's a double-acting device, which means that its movements are controlled by alternating air pressure between its two ports. This makes it suitable for forward and backward operations like the lifting and dropping of items. The cylinder's wrought aluminium alloy body stands up to corrosion and impact without breaking a sweat, assuring you long-term performance even in rugged settings.
Features & Benefits
• Flexible cushion rings at both ends reduce shock and vibration for a longer service life
• Return stroke force of 50.9N and advance stroke force of 67.9N make it suitable for light-duty applications
• Compatible with a proximity sensor for automated operation
• Safe to use in demanding conditions, thanks to an operating temperature range between -20°C and +80°C
• Return stroke force of 50.9N and advance stroke force of 67.9N make it suitable for light-duty applications
• Compatible with a proximity sensor for automated operation
• Safe to use in demanding conditions, thanks to an operating temperature range between -20°C and +80°C
Applications
• Printing presses
• Industrial automation
• Metal fabrication industry
• Industrial automation
• Metal fabrication industry
What's the stroke length of this cylinder?
It has a 30mm stroke length, so it fits the bill for short-span operations.
What's the function of the NBR seals in this component?
The seals prevent air leakages and block out dust and contaminants to keep the device in tip-top shape.
