RS PRO 57065 Non Return Valve, Push In 6mm Tube Inlet, 2 to 8bar
- RS Stock No.:
- 187-5688
- Brand:
- RS PRO
4 In stock - FREE next working day delivery available
Added
Price 1 Bag of 10
£98.85
(exc. VAT)
£118.62
(inc. VAT)
| Bag(s) | Per Bag | Per unit* |
| 1 + | £98.85 | £9.885 |
| *price indicative | ||
- RS Stock No.:
- 187-5688
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

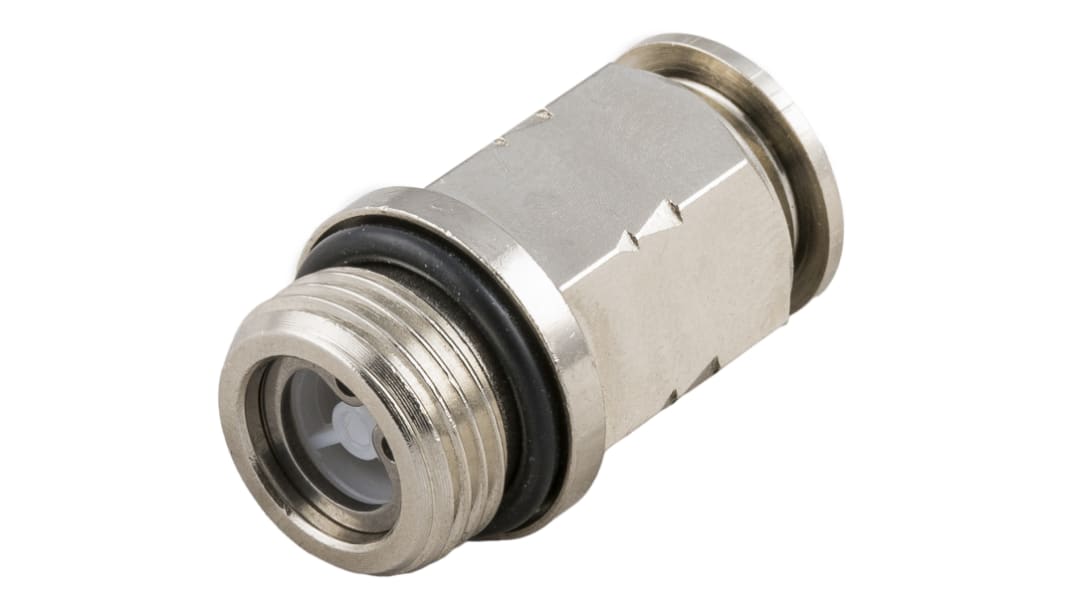

RS PRO Check Valve
The RS PRO 57065 series check valve has push-in 6mm tube inlet connection and male threaded outlet connection. The valve body is made of nickel-plated brass material. This line of technopolymer valves are lighter and more compact, thus offering high performance to demanding customers. This valve has a length of 46mm.
Features and Benefits
• 3 threads available: BSPP, BSPT (universal short) & Metric
• Full flow and vacuum resistant tank to special shaped seals
• Lighter and more compact
• Operating pressure ranges between 2bar and 8bar
• Operating temperature ranges between -20°C and 80°C
• Outlet thread size of 1/8in
• Quick connection and disconnection
• Silicon free
• Specific configurations to satisfy the advanced robotics
• Full flow and vacuum resistant tank to special shaped seals
• Lighter and more compact
• Operating pressure ranges between 2bar and 8bar
• Operating temperature ranges between -20°C and 80°C
• Outlet thread size of 1/8in
• Quick connection and disconnection
• Silicon free
• Specific configurations to satisfy the advanced robotics
Applications
• Robotics
• Automotive
• Textile, packaging and handling
• Vacuum
• Industrial water
• Compressed air circuit
• Automotive
• Textile, packaging and handling
• Vacuum
• Industrial water
• Compressed air circuit
Certifications
• REACH compliant
• ISO 14743:2004
• PED 2014/68/UE
• 2011/65/CE
• ISO 14743:2004
• PED 2014/68/UE
• 2011/65/CE
Specifications
Attribute | Value |
|---|---|
| Tube Inlet Connection | Push In 6mm |
| Inlet Connection Type | Tube |
| Outlet Connection Type | Threaded |
| Manufacturer Series | 57065 |
| Minimum Operating Pressure | 2bar |
| Maximum Operating Pressure | 8 bar |
| Maximum Operating Temperature | +80°C |
| Threaded Outlet Gender | Male |
| Operating Pressure Range | 2 to 8bar |
| Minimum Operating Temperature | -20°C |
| Body Material | Brass |
| Threaded Outlet Thread Size | 1/8in |
