RS PRO 57065 Non Return Valve, Push In 12mm Tube Inlet, 2 to 8bar

View this category

Subtotal (1 bag of 10 units)*

£199.42

(exc. VAT)

£239.30

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 +£199.42£19.942

*price indicative

RS Stock No.:
187-5695
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Tube Inlet Connection

Push In 12mm

Inlet Connection Type

Tube

Outlet Connection Type

Threaded

Manufacturer Series

57065

Minimum Operating Pressure

2bar

Maximum Operating Pressure

8 bar

Maximum Operating Temperature

+80°C

Threaded Outlet Gender

Male

Minimum Operating Temperature

-20°C

Body Material

Brass

Threaded Outlet Thread Size

1/2in

Operating Pressure Range

2 to 8bar

COO (Country of Origin):
IT

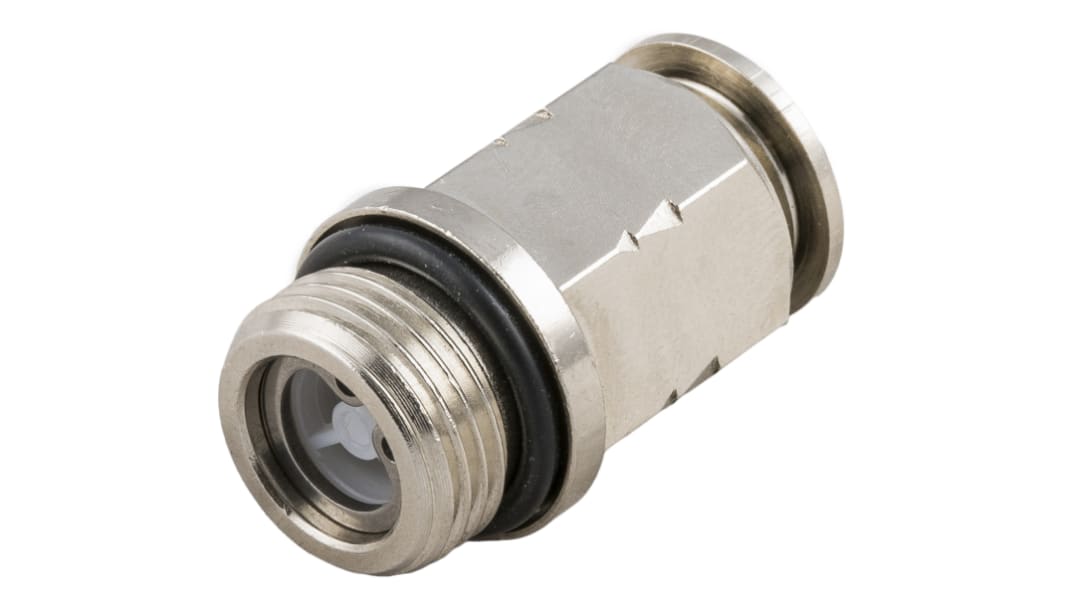

RS PRO Check Valve


The RS PRO 57065 series check valve has push-in 12mm tube inlet connection and male threaded outlet connection. The valve body is made of nickel-plated brass material. This line of technopolymer valves are lighter and more compact, thus offering high performance to demanding customers. This valve has a length of 34.5mm.

Features and Benefits


• 3 threads available: BSPP, BSPT (universal short) & Metric
• Full flow and vacuum resistant tank to special shaped seals
• Lighter and more compact
• Operating pressure ranges between 2bar and 8bar
• Operating temperature ranges between -20°C and 80°C
• Outlet thread size of 1/2in
• Quick connection and disconnection
• Silicon free
• Specific configurations to satisfy the advanced robotics

Applications


• Robotics
• Automotive
• Textile, packaging and handling
• Vacuum
• Industrial water
• Compressed air circuit

Certifications


• REACH compliant
• ISO 14743:2004
• PED 2014/68/UE
• 2011/65/CE
