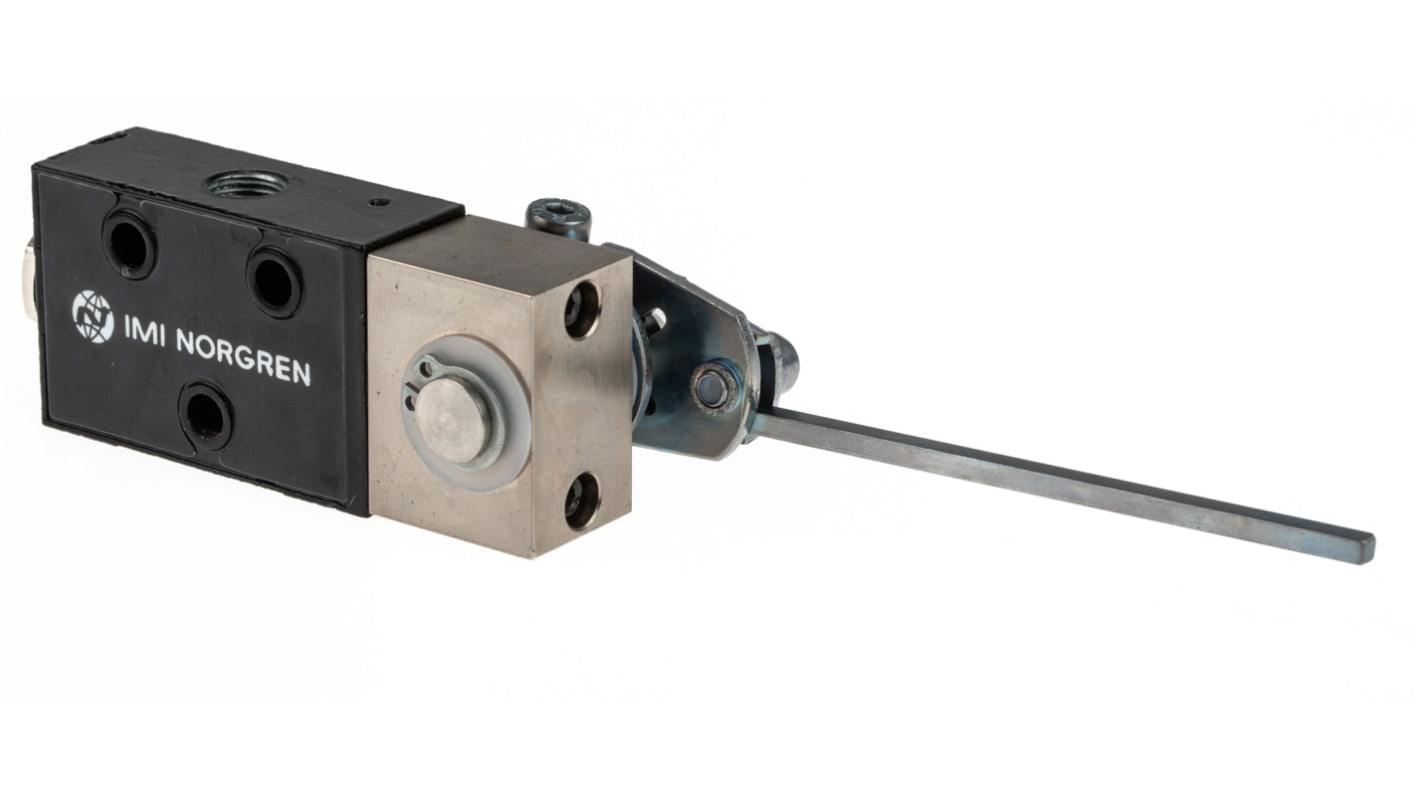

Norgren Rod Lever 3/2 Pneumatic Manual Control Valve S/666 Series, G 1/8, 1/8in, III B
- RS Stock No.:
- 314-6288
- Mfr. Part No.:
- S/666/106
- Brand:
- Norgren
Save 6% when you buy 10 units
Subtotal (1 unit)*
£623.39
(exc. VAT)
£748.07
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 8 unit(s) shipping from 01 October 2025
- Plus 2 unit(s) shipping from 01 October 2025
- Plus 13 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £623.39 |
5 - 9 | £604.08 |
10 + | £584.74 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£748.26
(exc. VAT)
£897.91
(inc. VAT)
- RS Stock No.:
- 314-6288
- Mfr. Part No.:
- S/666/106
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Control Mechanism | Rod Lever | |
Connection Port Thread | G 1/8 | |
Function | 3/2 | |
Thread Size | 1/8in | |
Thread Standard | G | |
Manufacturer Series | S/666 | |
Maximum Operating Pressure | 10 bar | |
Body Material | Die Cast Zinc Alloy | |
Maximum Flow Rate | 174L/min | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Number of Ports | 3/2 | |
Number of Positions | 2 | |
Model Number p | III B | |
Select all | ||
---|---|---|
Brand Norgren | ||
Control Mechanism Rod Lever | ||
Connection Port Thread G 1/8 | ||
Function 3/2 | ||
Thread Size 1/8in | ||
Thread Standard G | ||
Manufacturer Series S/666 | ||
Maximum Operating Pressure 10 bar | ||
Body Material Die Cast Zinc Alloy | ||
Maximum Flow Rate 174L/min | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Number of Ports 3/2 | ||
Number of Positions 2 | ||
Model Number p III B | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
IMI Norgren Rod Lever Manual Control Valve, 3/2 Function, 197L/min Flow Rate - S/666 Series - S/666/106
Looking for a reliable way to control airflow in your pneumatic system? Turn to this manual control valve from IMI Norgren. As it has a 3/2 function, you can move it in two directions to direct the air through three ports. The through-holes in its body let you quickly mount it in a pneumatic cylinder, eliminating the need for specialist tools. The device's compact dimensions of 75 (length) x 34 (width) x 19mm (height) make it suitable for installation on smaller cylinders.
Features & Benefits
• Broad operating pressure range between 2 and 10 bar for versatility
• Nitrile butadiene rubber seals are solvent-resistant to withstand harsh settings
• Ambient operating temperature range between -20°C and +80°C for durability in demanding environments
• Nitrile butadiene rubber seals are solvent-resistant to withstand harsh settings
• Ambient operating temperature range between -20°C and +80°C for durability in demanding environments
Applications
• Construction industry
• Gas plants
• Medical and pharmaceutical manufacture
• Food processing
• Gas plants
• Medical and pharmaceutical manufacture
• Food processing
How do I operate this valve?
To operate this valve, simply turn the rod lever in the left or right direction to close or open the ports.
How much airflow can this valve withstand?
It has a maximum flow rate of 197L/min, so you can safely use it in high-flow pneumatic systems.
