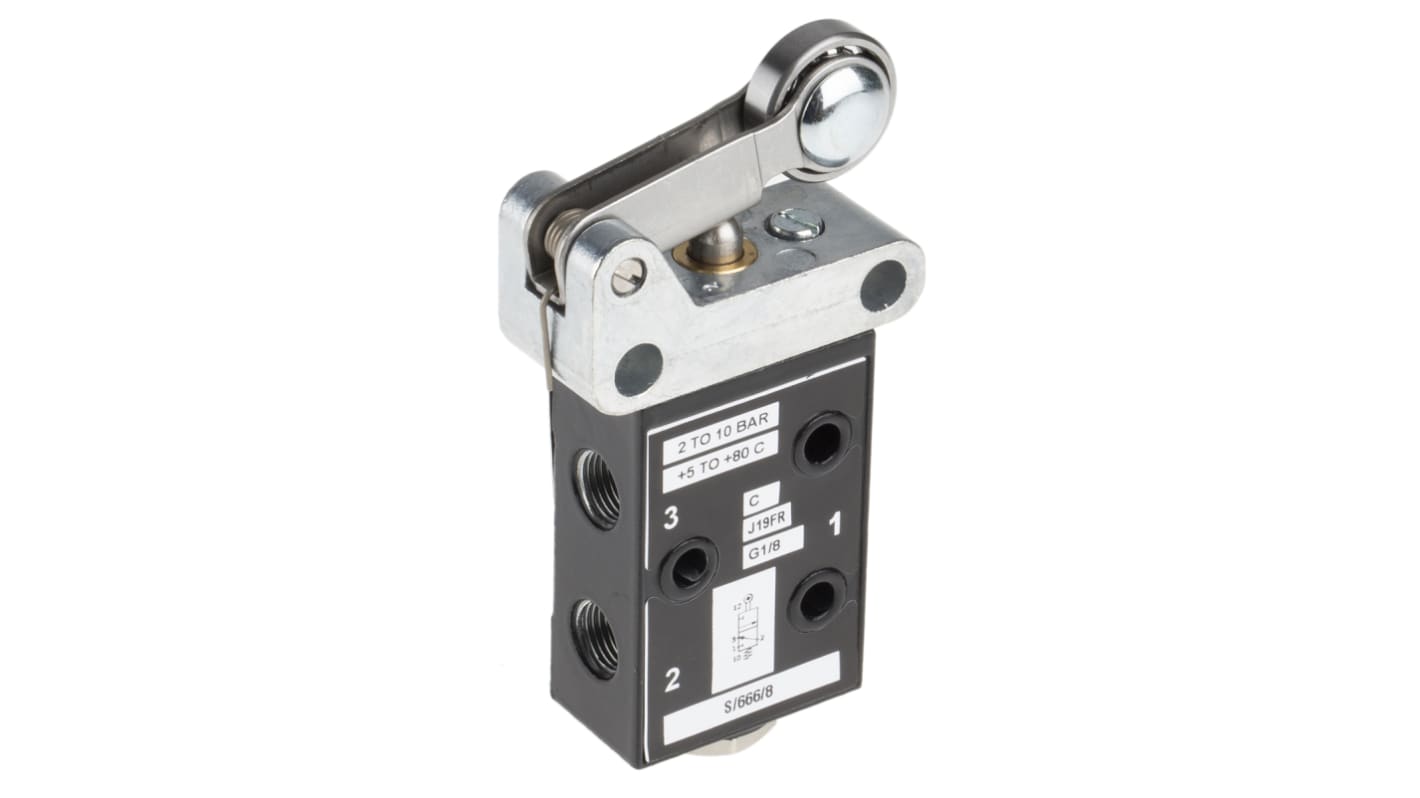

Norgren Roller 3/2 Pneumatic Manual Control Valve S/666 Series, G 1/8, 1/8in, III B
- RS Stock No.:
- 314-6250
- Mfr. Part No.:
- S/666/83/R
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£502.03
(exc. VAT)
£602.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £502.03 |
5 - 9 | £486.46 |
10 + | £470.89 |
*price indicative
- RS Stock No.:
- 314-6250
- Mfr. Part No.:
- S/666/83/R
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Control Mechanism | Roller | |
Connection Port Thread | G 1/8 | |
Function | 3/2 | |
Thread Size | 1/8in | |
Thread Standard | G | |
Manufacturer Series | S/666 | |
Maximum Operating Pressure | 10 bar | |
Body Material | Die Cast Zinc Alloy | |
Maximum Flow Rate | 197L/min | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Number of Positions | 2 | |
Number of Ports | 3 | |
Model Number p | III B | |
Select all | ||
---|---|---|
Brand Norgren | ||
Control Mechanism Roller | ||
Connection Port Thread G 1/8 | ||
Function 3/2 | ||
Thread Size 1/8in | ||
Thread Standard G | ||
Manufacturer Series S/666 | ||
Maximum Operating Pressure 10 bar | ||
Body Material Die Cast Zinc Alloy | ||
Maximum Flow Rate 197L/min | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Number of Positions 2 | ||
Number of Ports 3 | ||
Model Number p III B | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
IMI Norgren Poppet Manual Control Valve, 3/2 Function, 197L/min Flow Rate - S/666 Series - S/666/83/R
Looking for a way to control how air flows through your pneumatic system? Turn to this manual control valve from IMI Norgren. Its 3/2 function means it directs air through three ports by moving in two directions. For versatility, you can also use it as a 2/2 valve by plugging the exhaust port. Thanks to a maximum flow rate of 197 litres per minute, you can safely use this component in high-flow systems. Its die-cast, zinc-alloy body is corrosion-resistant, so you can be sure of an extended service life.
Features & Benefits
• Comes with through-holes for convenient mounting
• Maximum operating pressure of 10 bar for use in low-pressure environments
• Broad operating temperature range between -20°C and +80°C for use in demanding environments
• Maximum operating pressure of 10 bar for use in low-pressure environments
• Broad operating temperature range between -20°C and +80°C for use in demanding environments
Applications
• Medical and pharmaceutical industry
• Assembly plants
• Packaging industry
• Automotive industry
• Assembly plants
• Packaging industry
• Automotive industry
How does this control valve work?
This manual control valve has an internal poppet mechanism that closes a port to block the flow of fluid. It also features a roller spring arm that lets you control the movement of the poppet. As the roller spring is made from aluminium, it's impact-resistant and can withstand demanding industrial setups.
