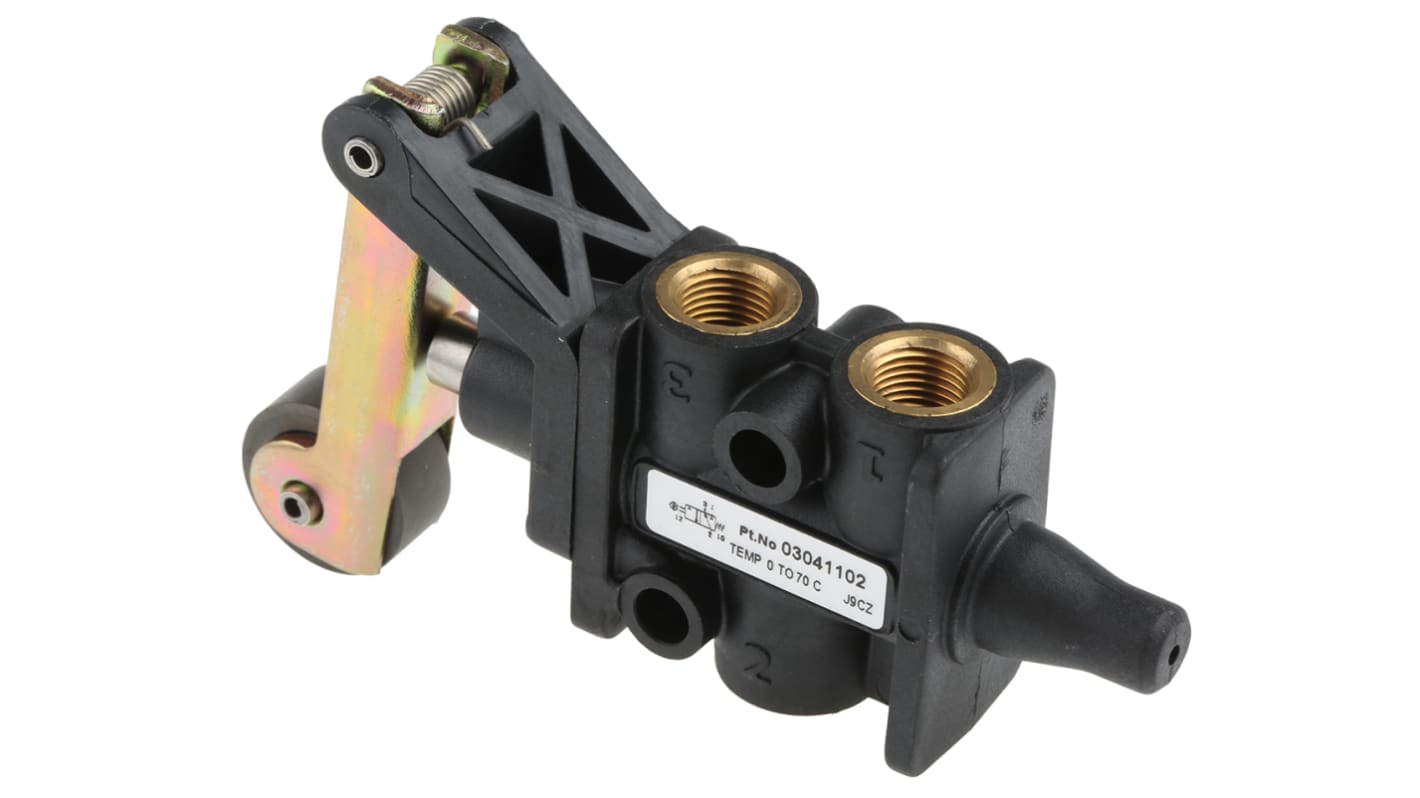

Norgren Roller 3/2 Pneumatic Manual Control Valve Super X Series, G 1/8, 1/8in, III B
- RS Stock No.:
- 722-479
- Mfr. Part No.:
- 03041102
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£101.07
(exc. VAT)
£121.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £101.07 |
| 5 - 9 | £97.94 |
| 10 + | £94.81 |
*price indicative
- RS Stock No.:
- 722-479
- Mfr. Part No.:
- 03041102
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Control Mechanism | Roller | |
| Connection Port Thread | G 1/8 | |
| Function | 3/2 | |
| Thread Size | 1/8in | |
| Thread Standard | G | |
| Manufacturer Series | Super X | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | PA | |
| Maximum Flow Rate | 335L/min | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +70°C | |
| Number of Positions | 2 | |
| Number of Ports | 3/2 | |
| Model Number p | III B | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Control Mechanism Roller | ||
Connection Port Thread G 1/8 | ||
Function 3/2 | ||
Thread Size 1/8in | ||
Thread Standard G | ||
Manufacturer Series Super X | ||
Maximum Operating Pressure 10 bar | ||
Body Material PA | ||
Maximum Flow Rate 335L/min | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +70°C | ||
Number of Positions 2 | ||
Number of Ports 3/2 | ||
Model Number p III B | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
IMI Norgren 3/2 Pneumatic Manual Control Valve, 0.9 to 10 Bar Operating Pressure, 31N Operating Force - Super X Series - 03041102
Effectively manage the operation of your pneumatic cylinders with this manual control valve from IMI Norgren. It's a 3/2-way unit, which means that it has three connection ports and two positions to control the forward and reverse movements of your devices. The valve has a spring-return roller lever that actuates the cylinder when force is applied. Its polyamide body is durable and can withstand impact, making it suitable for use in harsh industrial environments.
Features & Benefits
• Low weight of 90g, so it's simple to mount and won't put pressure on your pneumatic system
• Low operating force of 31N for quick and sensitive response to the impact on the lever
• Operating pressure range of 0.9 to 10 bar for versatile use
• Low operating force of 31N for quick and sensitive response to the impact on the lever
• Operating pressure range of 0.9 to 10 bar for versatile use
Applications
• Lifts and escalators
• Machine prototyping
• Robotics and automation systems
• Machine prototyping
• Robotics and automation systems
How do I mount this control valve?
This control valve has a G1/8 thread to fasten it to a connection port. Use a simple wrench to lock it in, where it will remain stable even in vibrating systems.
