Norgren Button 3/2 Mechanical Valve Martonair Series, G 1/8, 1/8, III B
- RS Stock No.:
- 220-4098
- Mfr. Part No.:
- S/666/1
- Brand:
- Norgren
Subtotal (1 unit)*
£433.17
(exc. VAT)
£519.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £433.17 |
*price indicative
- RS Stock No.:
- 220-4098
- Mfr. Part No.:
- S/666/1
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Control Mechanism | Button | |
| Connection Port Thread | G 1/8 | |
| Function | 3/2 | |
| Thread Size | 1/8 | |
| Thread Standard | G | |
| Manufacturer Series | Martonair | |
| Maximum Operating Pressure | 8bar | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | +50°C | |
| Model Number p | III B | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Control Mechanism Button | ||
Connection Port Thread G 1/8 | ||
Function 3/2 | ||
Thread Size 1/8 | ||
Thread Standard G | ||
Manufacturer Series Martonair | ||
Maximum Operating Pressure 8bar | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +50°C | ||
Model Number p III B | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

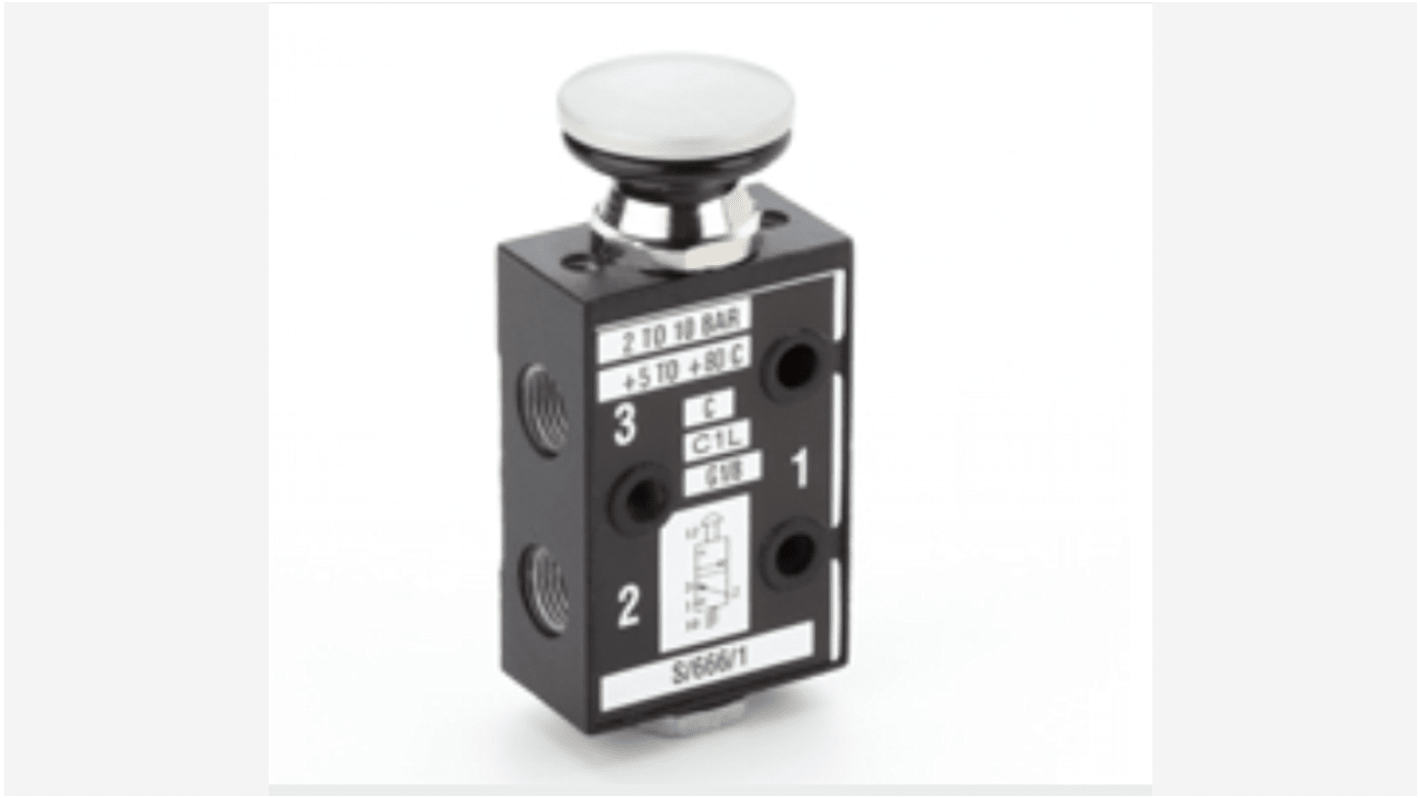

IMI Norgren Martonair Poppet Valves, G1/8 port size, 3/2 operation - S/666, S/667
For improved control of air flow in your pneumatic system use the IMI Norgren Martonair Poppet Valves.
These directly actuated valves are designed to be used with compressed air, filtered, lubricated, and non-lubricated, or hydraulic fluid. They have a die-cast zinc alloy body which provides resistance to corrosion, ensuring excellent durability. The operating pressure range for these units is 2 to 10 bar. These Martonair pneumatics poppet valves can also be used in temperatures of -20 to 80°C, which makes them well suited for demanding industrial applications. They use NBR seals which offer reliable protection against leakage, helping to keep your system running efficiently for longer.
These directly actuated valves are designed to be used with compressed air, filtered, lubricated, and non-lubricated, or hydraulic fluid. They have a die-cast zinc alloy body which provides resistance to corrosion, ensuring excellent durability. The operating pressure range for these units is 2 to 10 bar. These Martonair pneumatics poppet valves can also be used in temperatures of -20 to 80°C, which makes them well suited for demanding industrial applications. They use NBR seals which offer reliable protection against leakage, helping to keep your system running efficiently for longer.
Features and Benefits:
• Compact size for easy handling, optimal organisation and space-saving
• Versatile – these poppet valves may also be used as 2/2 valves
• Normally open (NO) and normally closed (NC) models available
• Dependable – the S/666 and S/667 models are long established and well-proven
• Versatile – these poppet valves may also be used as 2/2 valves
• Normally open (NO) and normally closed (NC) models available
• Dependable – the S/666 and S/667 models are long established and well-proven
How do I use this poppet valve as a 2/2 valve?
The main supply should be connected to port 1 and the exhaust port 3 must be plugged.
