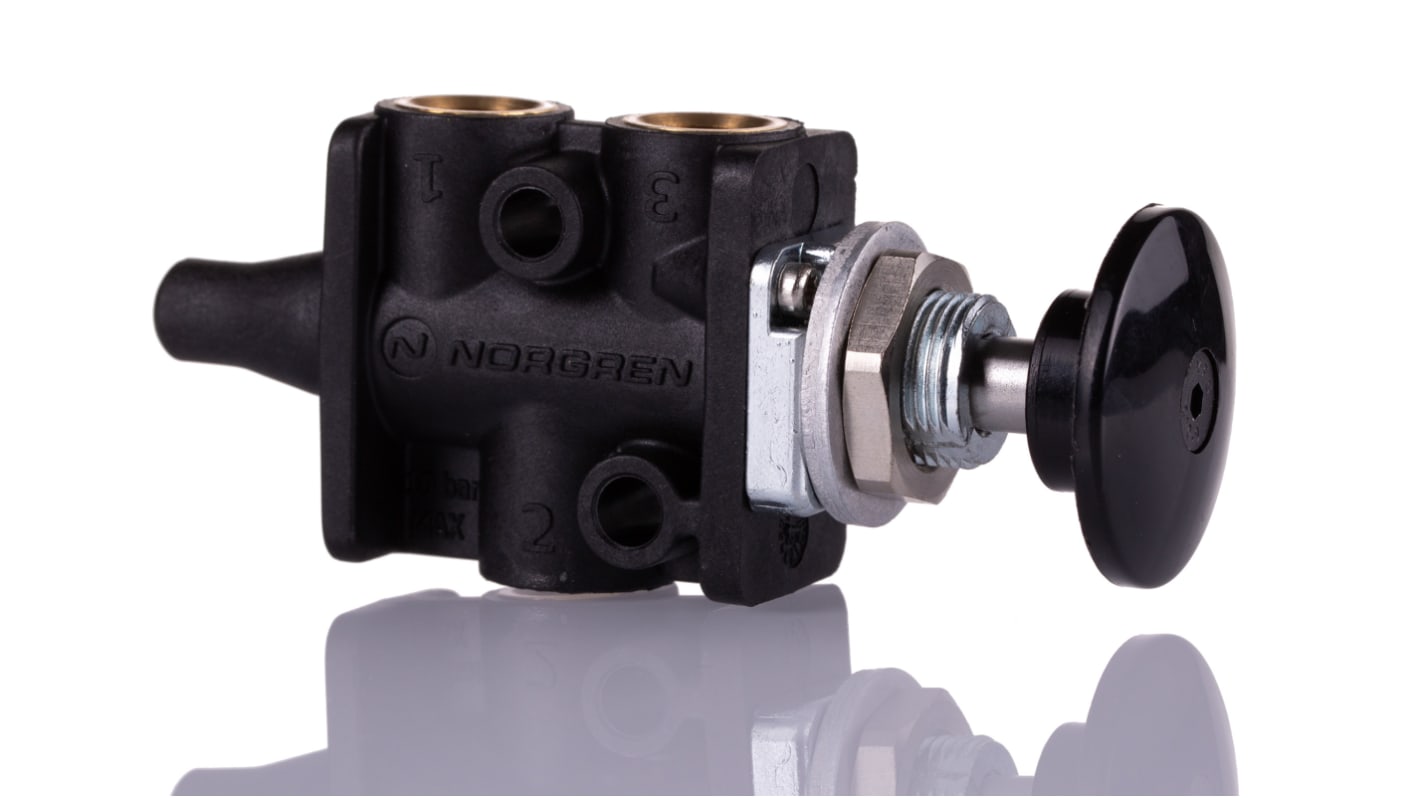

Norgren 3/2 Mechanical Valve 304 Series, G 1/8, 1/8, III B
- RS Stock No.:
- 217-9983
- Mfr. Part No.:
- 03040402
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£70.54
(exc. VAT)
£84.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £70.54 |
| 5 - 9 | £69.12 |
| 10 + | £67.72 |
*price indicative
- RS Stock No.:
- 217-9983
- Mfr. Part No.:
- 03040402
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Connection Port Thread | G 1/8 | |
| Function | 3/2 | |
| Thread Size | 1/8 | |
| Thread Standard | G | |
| Manufacturer Series | 304 | |
| Maximum Operating Pressure | 8bar | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | +50°C | |
| Model Number p | III B | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Connection Port Thread G 1/8 | ||
Function 3/2 | ||
Thread Size 1/8 | ||
Thread Standard G | ||
Manufacturer Series 304 | ||
Maximum Operating Pressure 8bar | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +50°C | ||
Model Number p III B | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
IMI Norgren Mechanical Valve, 10 Bar Maximum Operating Pressure, 1/8 Thread Size - 304 Series - 03040402
Use this mechanical valve from IMI Norgren to control the flow of fluids in your pneumatic systems. It has three connection ports and two switching positions, ensuring that there’s a speedy switchover process and limited downtime. A wide operating temperature range between 0°C and +70°C, makes this a suitable choice for use in harsh industrial environments. A maximum port assembly torque of 10Nm provides a tight fitting to standard equipment for vibration resistance and safe operation. NBR seals prevent external contamination from dust and lint, helping extend the service life of the valve.
Features & Benefits
• PA body resists corrosion and impacts to deliver long-lasting performance
• Broad operating pressure range between 0.9 and 10 bar for use in low-pressure and high-pressure applications
• Low weight of 70g puts minimal strain on your equipment
• Broad operating pressure range between 0.9 and 10 bar for use in low-pressure and high-pressure applications
• Low weight of 70g puts minimal strain on your equipment
Applications
• Water treatment plants
• Laboratory equipment
• Medical facilities
• Laboratory equipment
• Medical facilities
How do I mount this component?
This unit can be securely mounted using the pre-drilled holes on the valve’s body to achieve a secure and vibration-proof fix on your equipment.
