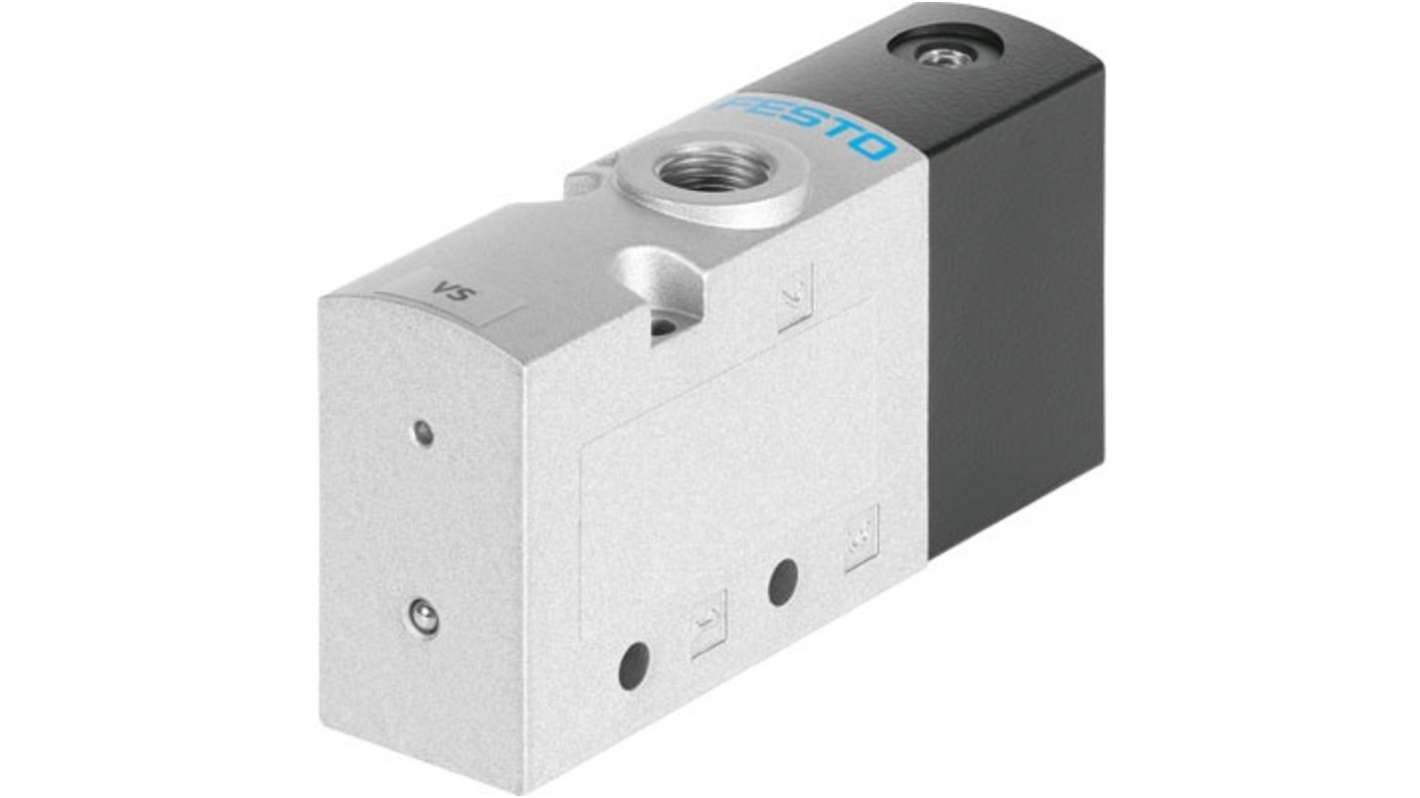

Festo Directional Control Valve Pneumatic Control Valve VUWS Series, NPT 3/8, 3/8in, 575640

View this category

Subtotal (1 unit)*

£47.53

(exc. VAT)

£57.04

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£47.53

*price indicative

RS Stock No.:
651-480
Mfr. Part No.:
VUWS-L30-M32C-M-N38
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Connection Port Thread

NPT 3/8

Function

Directional Control Valve

Thread Size

3/8in

Thread Standard

NPT

Manufacturer Series

VUWS

Maximum Operating Pressure

8bar

Minimum Operating Temperature

-5°C

Maximum Operating Temperature

+50°C

Model Number p

575640

COO (Country of Origin):
CN
The Festo Pneumatic valve is designed to deliver superior performance in various pneumatic applications. This innovative 3/2-way, closed, monostable valve, featuring a compact 31 mm size, ensures efficient flow regulation with a standard nominal flow rate of 2300 l/min. Engineered for exceptional reliability, it operates within a pressure range of -0.09 MPa to 1 MPa, making it ideal for diverse operating conditions. The valve boasts a mechanical spring reset and direct piloting mechanism, offering both simplicity and effectiveness in operation. Its robust design, complete with corrosion resistance and cleanroom compatibility, positions it as a reliable choice for industrial environments.

Mechanical spring reset ensures reliable operation
Direct piloting allows for efficient control and responsiveness
Integrated flow control option enhances exhaust air function
Soft sealing principle contributes to leak free performance
Versatile mounting options accommodate various installation needs
Internal pilot air supply simplifies setup and maintenance
Vibration and shock resistance for durability in demanding conditions
Compliance with ATEX zones increases safety in explosive environments
RoHS compliant materials ensure environmentally responsible operation
