Festo G 1/4 2200L/min Pneumatic Air Lubricator, 1bar to 12 bar, MS Series
- RS Stock No.:
- 202-3252
- Mfr. Part No.:
- MS4-LOE-1/4-R
- Brand:
- Festo
Subtotal (1 unit)*
£43.14
(exc. VAT)
£51.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £43.14 |
*price indicative
- RS Stock No.:
- 202-3252
- Mfr. Part No.:
- MS4-LOE-1/4-R
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Port Connection | G 1/4 | |
Manufacturer Series | MS | |
Maximum Flow Rate | 2200L/min | |
Typical Flow Rate | 40L/min | |
Port Connection Thread Standard | G | |
Maximum Operating Pressure | 12 bar | |
Minimum Operating Pressure | 1bar | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -10°C | |
Bowl Material | Plastic | |
Select all | ||
---|---|---|
Brand Festo | ||
Port Connection G 1/4 | ||
Manufacturer Series MS | ||
Maximum Flow Rate 2200L/min | ||
Typical Flow Rate 40L/min | ||
Port Connection Thread Standard G | ||
Maximum Operating Pressure 12 bar | ||
Minimum Operating Pressure 1bar | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
Bowl Material Plastic | ||
- COO (Country of Origin):
- HU

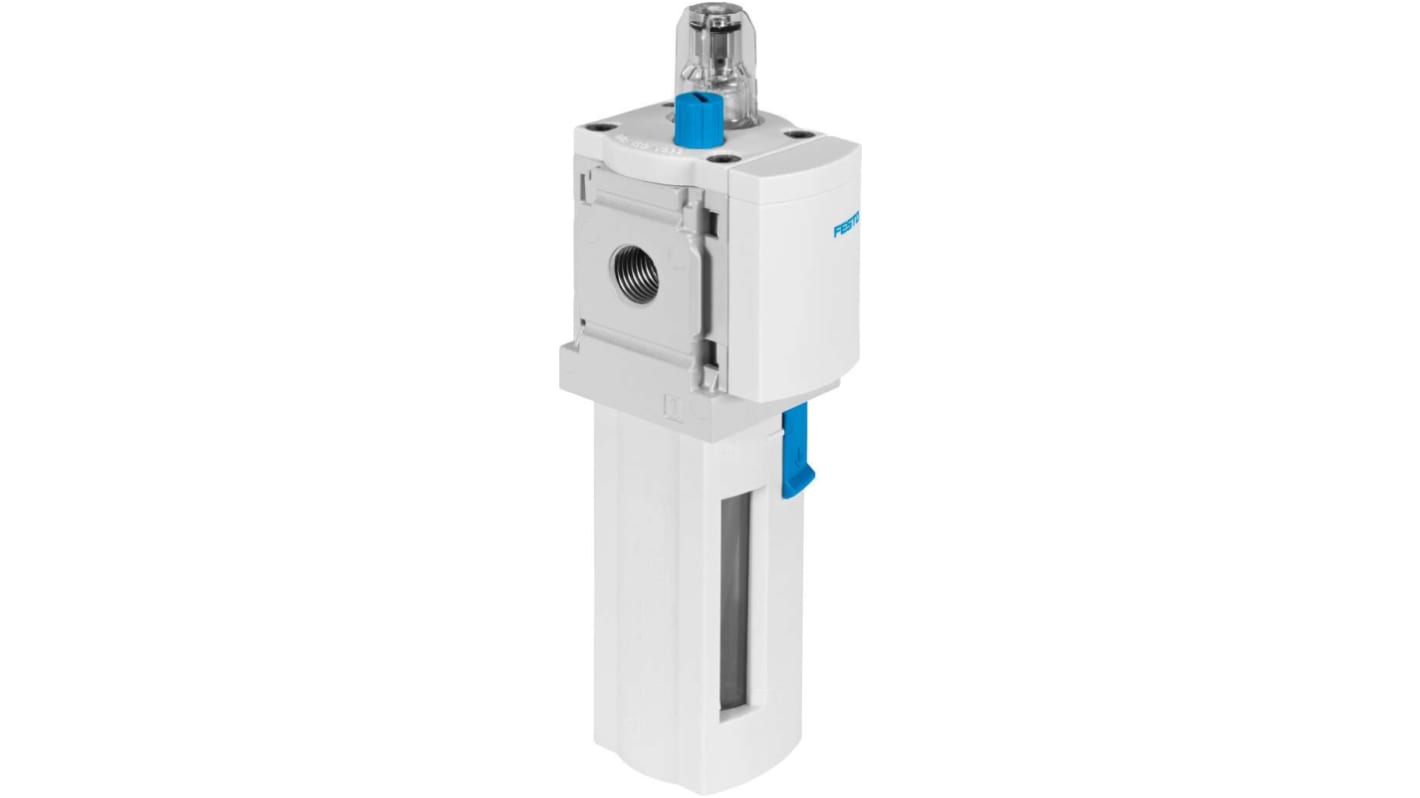

Festo Pneumatic Air Lubricator, Vertical Mounting, 30cm³ Maximum Oil Capacity - MS4-LOE-1/4-R
For smooth flow around your system, install this pneumatic air lubricator from Festo. It steadily releases a thin mist of oil into the air stream to cut the risk of friction and keep things running efficiently. The unit has a maximum oil capacity of 30cm³ so there's room for a sufficient supply to keep your machine well-oiled. It kicks in at a minimum flow rate of 40L/min and handles up to 2200L/min, so you can safely use it in your high-flow system.
Features & Benefits
• Adjustable assembly position of up to +/-5° from the verticle for flexibility
• PC bowl delivers thermal resistance for durability
• Tough aluminium die-cast body resists mechanical wear and resists corrosion to keep your medium clean
• PC bowl delivers thermal resistance for durability
• Tough aluminium die-cast body resists mechanical wear and resists corrosion to keep your medium clean
Applications
• Construction equipment
• Measuring instruments
• Bottling plants
• Marine engineering
• Measuring instruments
• Bottling plants
• Marine engineering
What's the operating pressure capacity of this lubricator?
As this regulator handles an operating pressure range between 1 and 12 bar, you can safely use it in low-pressure and mid-pressure applications.
How do I mount this lubricator?
Thanks to the threaded structure, you can mount this regulator by fixing the G1/4 pneumatic connection to a port in your equipment.
