SMC Guide Cylinder - 10 mm Bore, MGJ Series, 5 mm Double Acting Acting
- RS Stock No.:
- 235-3264
- Mfr. Part No.:
- MGJ10-5
- Brand:
- SMC
Subtotal (1 unit)*
£147.60
(exc. VAT)
£177.12
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £147.60 |
*price indicative
- RS Stock No.:
- 235-3264
- Mfr. Part No.:
- MGJ10-5
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Guide Cylinder | |
| Bore Size | 10mm | |
| Series | MGJ | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Aluminium Alloy | |
| Cushioning Type | Rubber Bumper | |
| Maximum Piston Speed | 500mm/s | |
| Guide Type | Slide Bearing | |
| Minimum Operating Temperature | -10°C | |
| Piston Rod Thread Size | M3 | |
| Maximum Operating Temperature | 60°C | |
| Weight | 40.6g | |
| Height | 33mm | |
| Standards/Approvals | No | |
| Width | 17mm | |
| Stroke Length | 5mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Guide Cylinder | ||
Bore Size 10mm | ||
Series MGJ | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Aluminium Alloy | ||
Cushioning Type Rubber Bumper | ||
Maximum Piston Speed 500mm/s | ||
Guide Type Slide Bearing | ||
Minimum Operating Temperature -10°C | ||
Piston Rod Thread Size M3 | ||
Maximum Operating Temperature 60°C | ||
Weight 40.6g | ||
Height 33mm | ||
Standards/Approvals No | ||
Width 17mm | ||
Stroke Length 5mm | ||
- COO (Country of Origin):
- JP

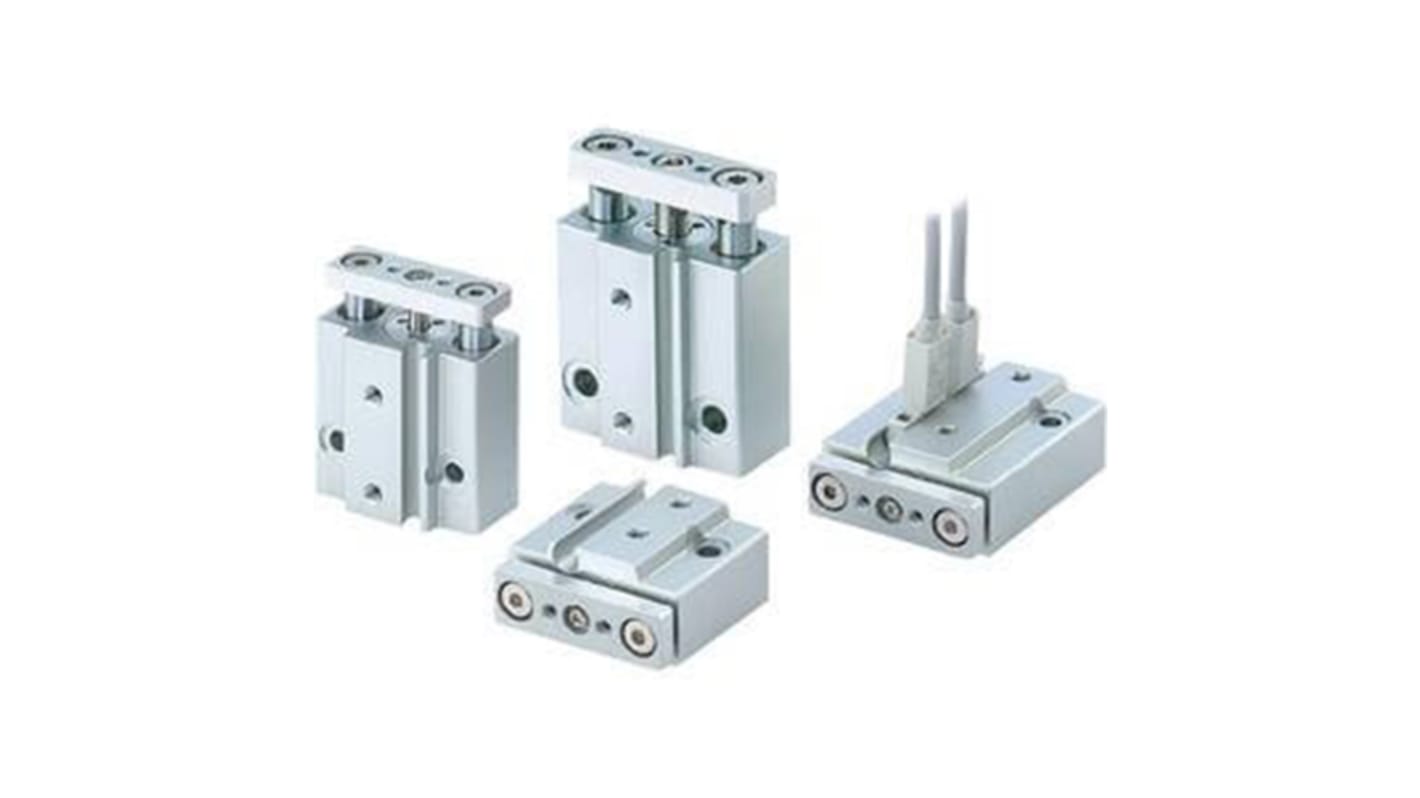

The SMC Series MGJ miniature guide rod cylinder is ideal for applications requiring high side load and high non-rotational accuracy (±0.1°). Rubber bumpers are standard. Two auto switches can be mounted with as little as 5mm of stroke.
Bore size 10mm
Stroke size 5mm
Lead wire 5M
