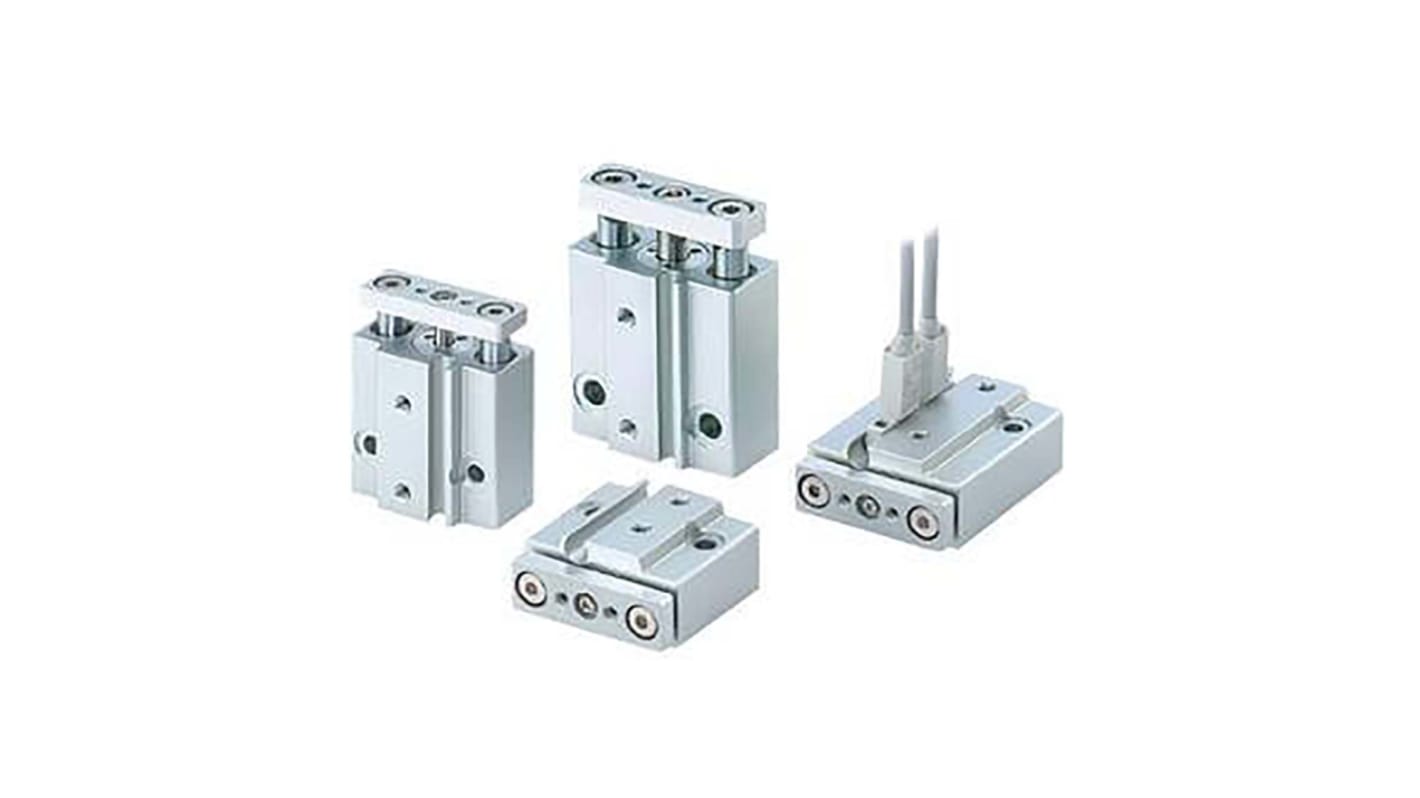

SMC Pneumatic Guided Cylinder - 6mm Bore, 5mm Stroke, MGJ Series, Double Acting
- RS Stock No.:
- 196-4483
- Mfr. Part No.:
- MGJ6-5
- Brand:
- SMC
Subtotal (1 unit)*
£136.92
(exc. VAT)
£164.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £136.92 |
*price indicative
- RS Stock No.:
- 196-4483
- Mfr. Part No.:
- MGJ6-5
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Stroke | 5mm | |
| Bore | 6mm | |
| Manufacturer Series | MGJ | |
| Action | Double | |
| Pneumatic Connection | M3 | |
| Maximum Operating Pressure | 0.7 MPa | |
| Cushioning Type | Rubber Bumper | |
| Dimensions | 28 x 14.5 x 29mm | |
| Weight | 27.3g | |
| Maximum Operating Temperature | +60°C | |
| Length | 28mm | |
| Width | 14.5mm | |
| Height | 29mm | |
| Minimum Operating Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Stroke 5mm | ||
Bore 6mm | ||
Manufacturer Series MGJ | ||
Action Double | ||
Pneumatic Connection M3 | ||
Maximum Operating Pressure 0.7 MPa | ||
Cushioning Type Rubber Bumper | ||
Dimensions 28 x 14.5 x 29mm | ||
Weight 27.3g | ||
Maximum Operating Temperature +60°C | ||
Length 28mm | ||
Width 14.5mm | ||
Height 29mm | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- CN
Series MGJ miniature guide rod cylinder is ideal for applications requiring high side load and high non-rotational accuracy (±0.1°). Rubber bumpers are standard. Two auto switches can be mounted with as little as 5mm of stroke.
