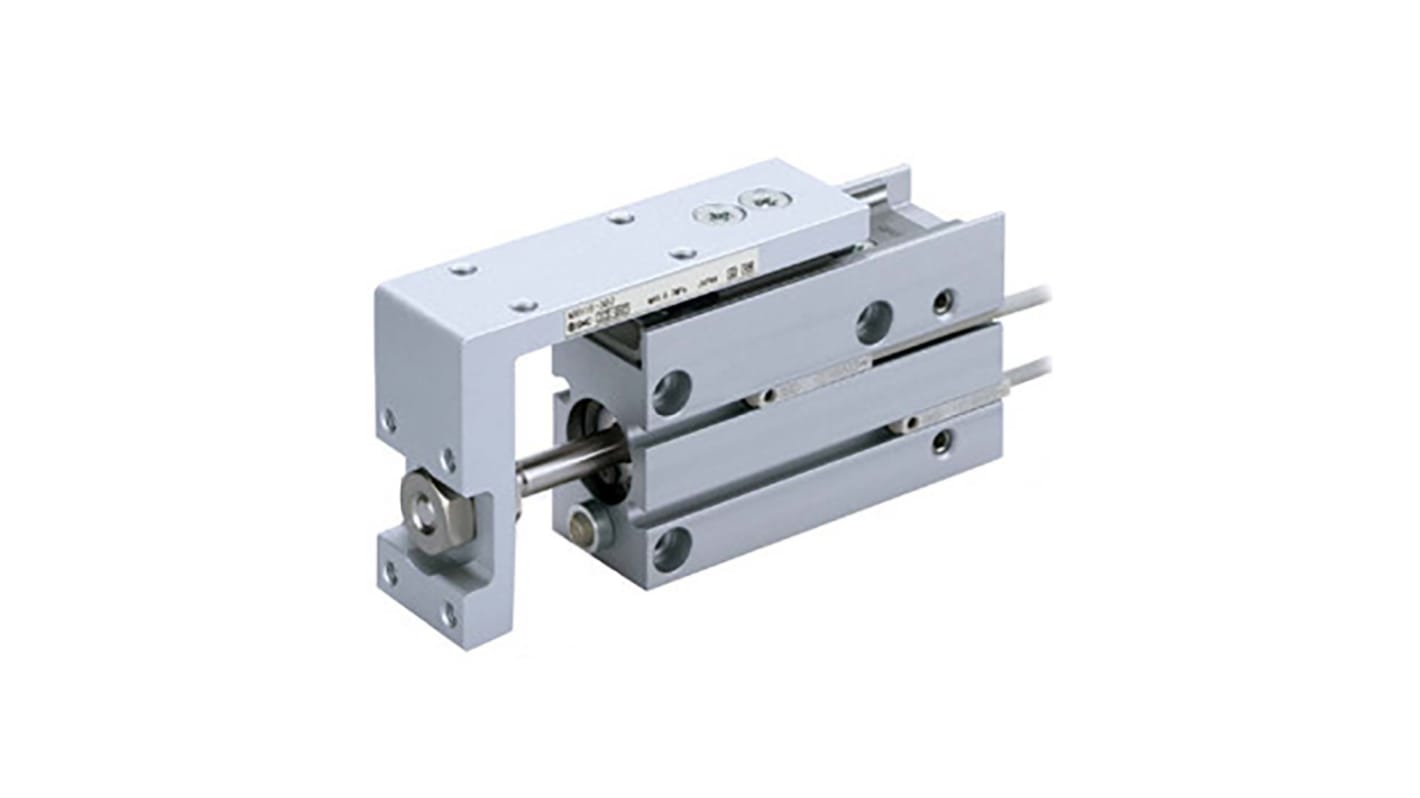

SMC Pneumatic Guided Cylinder - 10 mm Bore, MXH Series, 30 mm Double Acting Acting
- RS Stock No.:
- 196-4485
- Mfr. Part No.:
- MXH10-30Z
- Brand:
- SMC
Subtotal (1 unit)*
£280.28
(exc. VAT)
£336.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £280.28 |
*price indicative
- RS Stock No.:
- 196-4485
- Mfr. Part No.:
- MXH10-30Z
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 10mm | |
| Series | MXH | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Body Material | Aluminium Alloy | |
| Cushioning Type | Rubber Bumper | |
| Guide Type | Slide Bearing | |
| Minimum Operating Temperature | -10°C | |
| Maximum Piston Speed | 500mm/s | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Weight | 153g | |
| Height | 47mm | |
| Width | 20mm | |
| Stroke Length | 30mm | |
| Length | 76.5mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 10mm | ||
Series MXH | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.7 Mpa | ||
Body Material Aluminium Alloy | ||
Cushioning Type Rubber Bumper | ||
Guide Type Slide Bearing | ||
Minimum Operating Temperature -10°C | ||
Maximum Piston Speed 500mm/s | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Weight 153g | ||
Height 47mm | ||
Width 20mm | ||
Stroke Length 30mm | ||
Length 76.5mm | ||
- COO (Country of Origin):
- JP
Bore sizes: 6, 10, 16, 20 mm
Special (non-standard) porting option
Rubber bumpers
Auto-switch capable
