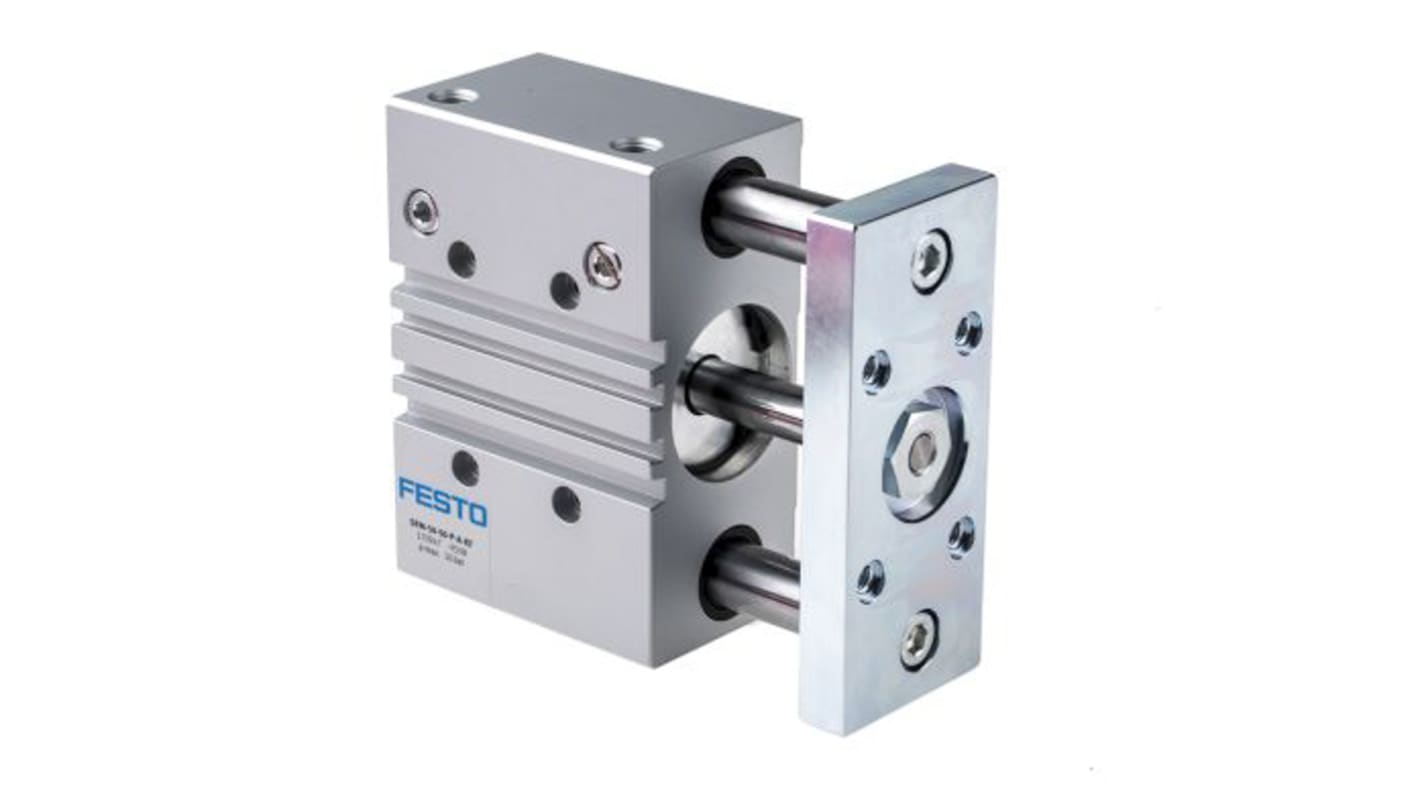

Festo Pneumatic Guided Cylinder - 170953 63 mm Bore, DFM Series, 25 mm Double Acting Acting
- RS Stock No.:
- 136-6544
- Distrelec Article No.:
- 301-70-069
- Mfr. Part No.:
- DFM-63-25-P-A-KF
- Brand:
- Festo
Subtotal (1 unit)*
£502.67
(exc. VAT)
£603.20
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £502.67 |
*price indicative
- RS Stock No.:
- 136-6544
- Distrelec Article No.:
- 301-70-069
- Mfr. Part No.:
- DFM-63-25-P-A-KF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 63mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Mount Type | Through Hole | |
| Maximum Operating Pressure | 10 bar | |
| Cushioning Type | Elastomer | |
| Minimum Operating Temperature | -5°C | |
| Guide Type | Ball Bearing, Plain Bearing | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS, ISO 1179-1, ISO 228-1 | |
| Height | 78mm | |
| Width | 162mm | |
| Weight | 4.5kg | |
| Length | 118mm | |
| Stroke Length | 25mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 63mm | ||
Series DFM | ||
Action Type Double Acting | ||
Mount Type Through Hole | ||
Maximum Operating Pressure 10 bar | ||
Cushioning Type Elastomer | ||
Minimum Operating Temperature -5°C | ||
Guide Type Ball Bearing, Plain Bearing | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS, ISO 1179-1, ISO 228-1 | ||
Height 78mm | ||
Width 162mm | ||
Weight 4.5kg | ||
Length 118mm | ||
Stroke Length 25mm | ||
- COO (Country of Origin):
- DE
DFM Pneumatic Guided Cylinders - Ball Bearing
Festo DFM series pneumatic guided cylinders are double acting drive and guide unit in a single housing. Recirculating ball bearings drive the guide rods making it ideal for applications where torque loads are present. Designed for high load pneumatic applications such as clamping, stopping, material handling and lifting. The sturdy and precise aluminium construction is maintenance free and highly resistant to torque and lateral external forces. A compact design incorporates the piston rod as part of the guide body.
The DFM series of guided actuators have flexible cushioning plates to reduce noise during operation and increase service life. Integrated slots on the actuator body allow for incorporating proximity sensors to measure the linear motion of the piston. Air supply ports on both the top and side of the cylinder provide flexible positioning options.
Application Examples
Clamping
The guided drive is perfectly suited to clamping components for reliable further processing.
Lifting
The guided cylinders effortlessly transports and lifts loads powerfully and dynamically.
Stopping
Loads of up to 150 kg are stopped reliably and safely, making the guided drive a resilient and sturdy stopper cylinder.
Features and Benefits
Drive and guide unit in a single housing
Recirculating ball bearings for applications involving torque loads
Supply ports on the top and side of the cylinder for flexible mounting options
Compact rigid construction
High resistance to torques and lateral forces
Maintenance free
Flexible cushioning plates reduce noise during operation and increase service life
