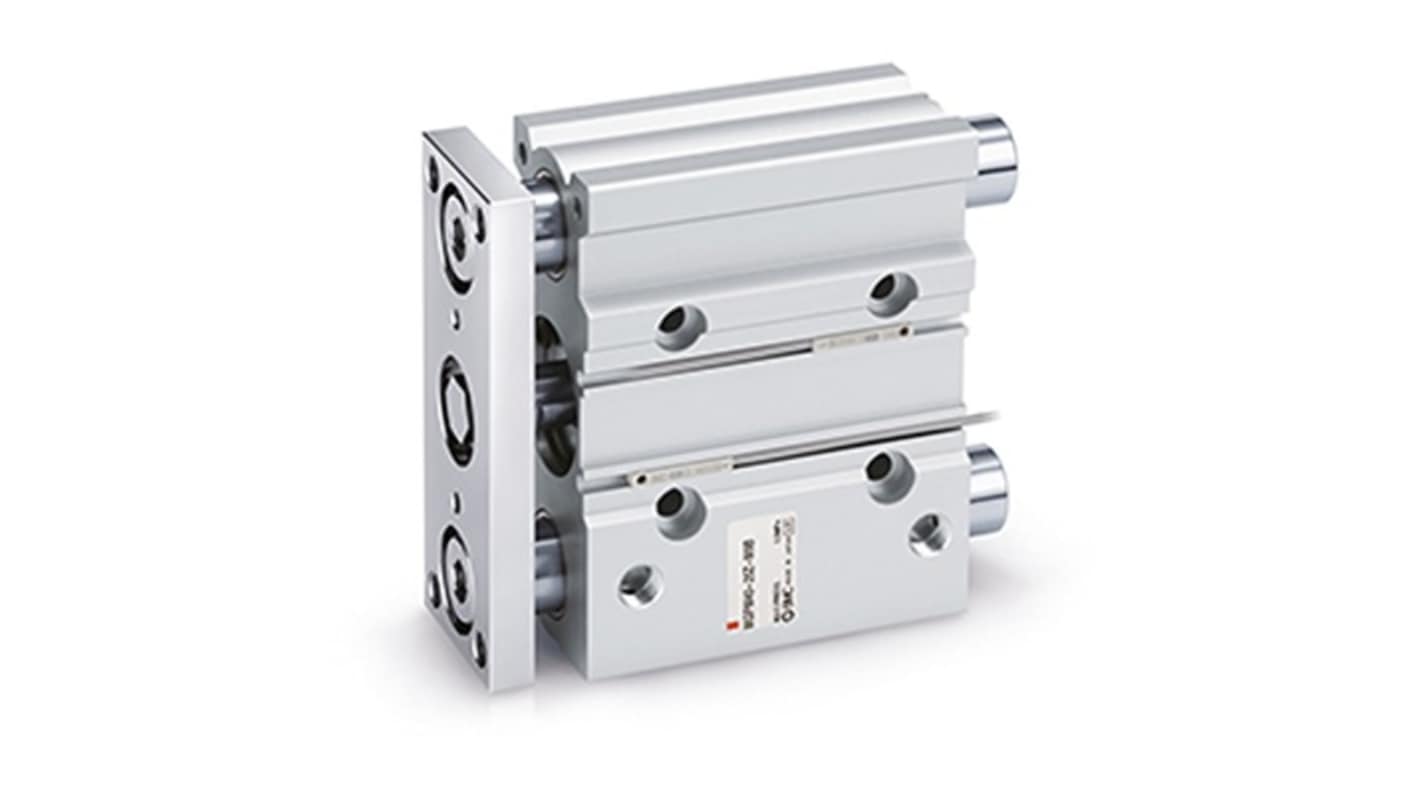

SMC Pneumatic Guided Cylinder - MGPM80TF-25Z 80 mm Bore, MGPM Series, 25 mm Double Acting Acting
- RS Stock No.:
- 370-243
- Mfr. Part No.:
- MGPM80TF-25Z
- Brand:
- SMC
Subtotal (1 unit)*
£431.71
(exc. VAT)
£518.05
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £431.71 |
*price indicative
- RS Stock No.:
- 370-243
- Mfr. Part No.:
- MGPM80TF-25Z
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 80mm | |
| Series | MGPM | |
| Action Type | Double Acting | |
| Mount Type | Top Mount, Side, Bottom | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Aluminium Alloy | |
| Cushioning Type | Rubber Cushioning at Both Ends | |
| Rod Type | Single | |
| Minimum Operating Temperature | -10°C | |
| Maximum Piston Speed | 400mm/s | |
| Piston Rod Thread Standard | G | |
| Guide Type | Slide Bearing | |
| Maximum Operating Temperature | 60°C | |
| Weight | 5.41kg | |
| Standards/Approvals | RoHS | |
| Stroke Length | 25mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 80mm | ||
Series MGPM | ||
Action Type Double Acting | ||
Mount Type Top Mount, Side, Bottom | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Aluminium Alloy | ||
Cushioning Type Rubber Cushioning at Both Ends | ||
Rod Type Single | ||
Minimum Operating Temperature -10°C | ||
Maximum Piston Speed 400mm/s | ||
Piston Rod Thread Standard G | ||
Guide Type Slide Bearing | ||
Maximum Operating Temperature 60°C | ||
Weight 5.41kg | ||
Standards/Approvals RoHS | ||
Stroke Length 25mm | ||
- COO (Country of Origin):
- JP
SMC MGPM Series Compact Guide Cylinder, 80mm Bore size, 25mm Stroke Length - MGPM80TF-25Z
This Compact guide cylinder is a guided pneumatic actuator designed for controlled linear motion in automated assemblies. It combines a guided slide with a single piston rod to deliver lateral stability during double-acting strokes, making it appropriate for precision positioning tasks across mechanical and electrical automation systems.
Features and Benefits:
• 1MPa maximum operating pressure provides high-load actuation capability
• 400mm/s TOP piston speed enables Rapid linear travel
• Rubber bumper on both ends reduces impact and noise
• Slide bearing guide type ensures smooth lateral accuracy
• Aluminium alloy body offers strength with reduced mass
• RoHS compliance supports environmentally restricted installations
• 400mm/s TOP piston speed enables Rapid linear travel
• Rubber bumper on both ends reduces impact and noise
• Slide bearing guide type ensures smooth lateral accuracy
• Aluminium alloy body offers strength with reduced mass
• RoHS compliance supports environmentally restricted installations
Applications
• Suitable for pick-and-place operations requiring lateral guidance
• Ideal for tool-changing and fixture positioning in machinery
• Used for PCB handling within electronics assembly lines
• Can be used for panel alignment in electrical cabinet production
• Used with jigs that need Compact guided thrust in limited space
• Ideal for tool-changing and fixture positioning in machinery
• Used for PCB handling within electronics assembly lines
• Can be used for panel alignment in electrical cabinet production
• Used with jigs that need Compact guided thrust in limited space
What temperature range can be expected during operation?
It operates between -10°C and 60°C, permitting use in typical indoor industrial environments.
How is the unit mounted to machinery?
It supports top, side and bottom mounting orientations to fit various fixture layouts.
What stroke length and rod configuration are provided?
It delivers a 25mm stroke with a single rod using a G thread piston rod termination.
What is the cylinder’s bore and how does that affect load capability?
The bore measures 80mm which, in combination with 1MPa supply pressure, provides substantial linear force for guided duties.
What mass should be considered when integrating the component?
The actuator has a mass of 5.41kg for load and balance calculations.
